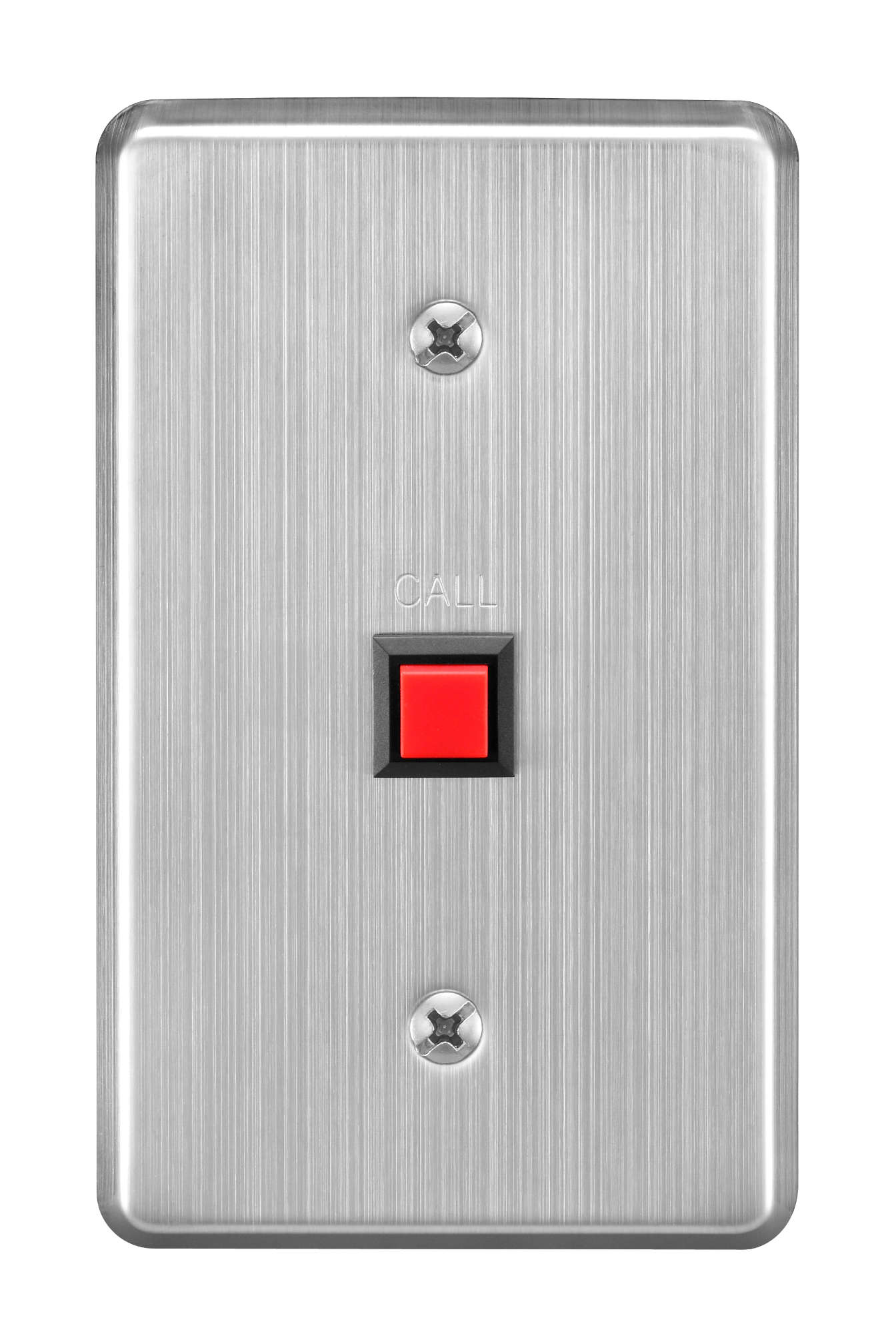

RS-143
Switch Panel
The RS-143 is a switch panel designed for use with the N-8000RS or N-8010RS 2-Core Shielded Substation Interface Unit. It is equipped with a Call button and can be installed in a 1-gang electrical box. By connecting a high impedance speaker to it, hands-free conversation with the master station can be made through its speaker. Also, it can be used in connection with the RS-141 Ip Intercom Option Handset.
- Indoor use
- 1 call button
- Half-duplex conversation
- Handset conversation (with optional RS-141)
- Conversation via external speaker (optional)
- Specifications
- Application examples
- Equipment
- Downloads
Specifications
Specifications for product:
| RS-143 | RS-140 | RS-141 | RS-142 | RS-144 | |
|---|---|---|---|---|---|
| Controls |
Volume control: 12 - 18 dB (max.) |
||||
| Dimensions |
70 x 115 x 28.6 mm (W x H x D) |
70 x 115 x 28.6 mm (W x H x D) |
116 x 220 x 71 mm (W x H x D) |
70 x 115 x 28.6 mm (W x H x D) |
|
| Weight |
0.08 kg |
0.08 kg |
350 g |
30 g |
0.08 kg |
| Finish |
Stainless steel |
ABS resin, white |
Stainless steel |
Stainless steel |
|
| Operating temperature |
0°C to +40°C |
