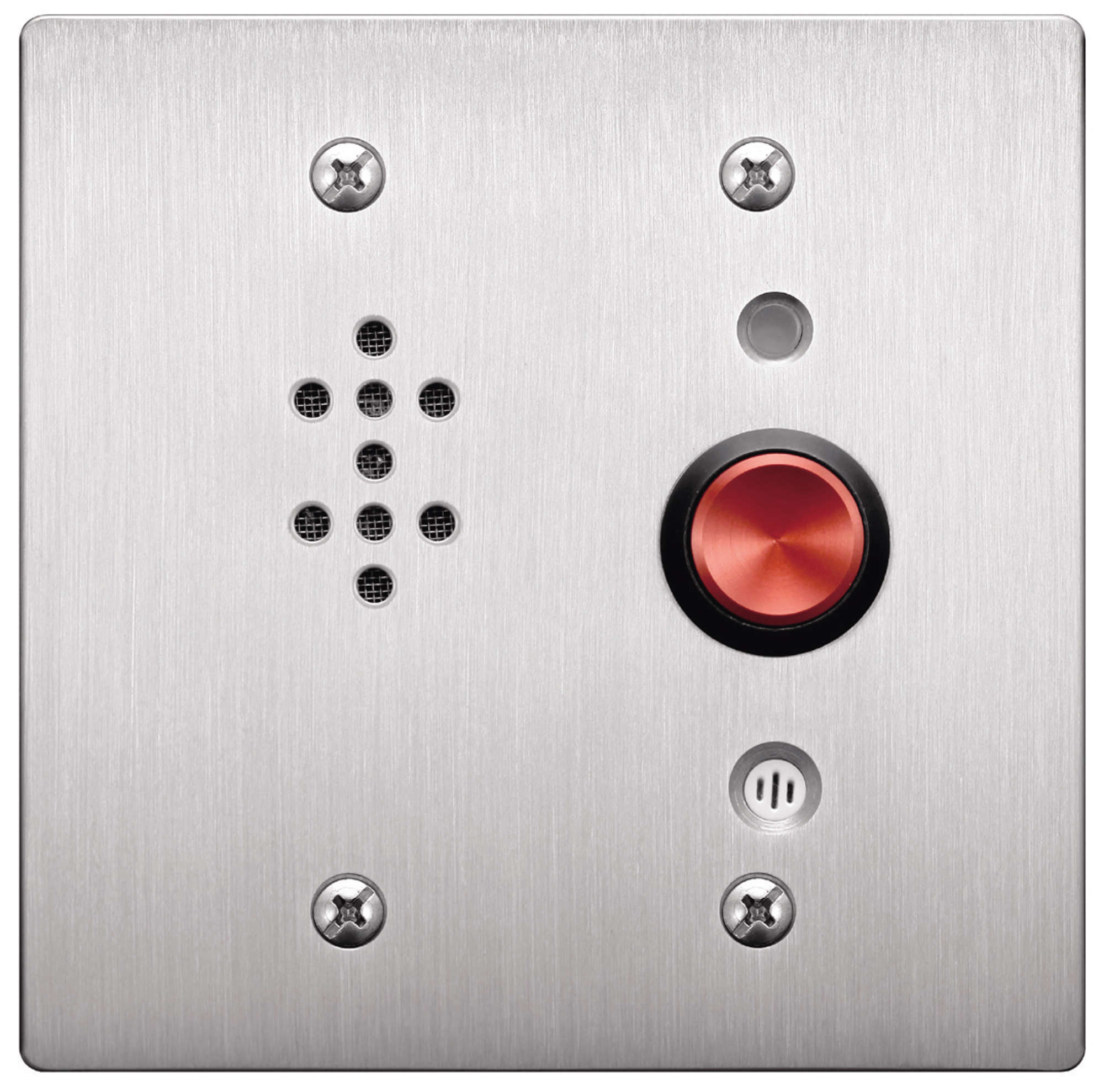

RS-480

Sub-station (Emergency Use)

The RS-480 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit. Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation. Also, it can be used in connection with the RS-481 Option Handset. The RS-480 is equipped with a Status indicator.

  • Outdoor/Indoor use
  • Vandal-resistant
  • Half-duplex communication
  • Heavy duty stainless steel faceplate
  • Control output
  • Handset conversation via optional RS-481




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
RS-480 RS-450 RS-460 RS-470
Control output

Open collector output:

30 V DC, 30 mA

Operating temperature

0 °C to +40 °C

0 °C to +40 °C

0 °C to +40 °C

0 °C to +40 °C

Finish

Stainless steel, hairline

Stainless steel, hairline

Stainless steel, hairline

Stainless steel, hairline

Dimensions

120 x 120 x 50.5 mm (W x H x D)

120 x 120 x 41.5 mm (W x H x D)

120 x 120 x 49.5 mm (W x H x D)

120 x 120 x 49.5 mm (W x H x D)

Weight

0.58 kg

0.51 kg

0.54 kg

0.55 kg

Accessory (included)

Box Mounting Screw 8x

Box Mounting Screw 8x

Box Mounting Screw 8x

Box Mounting Screw 8x
