RS-140

Switch Panel

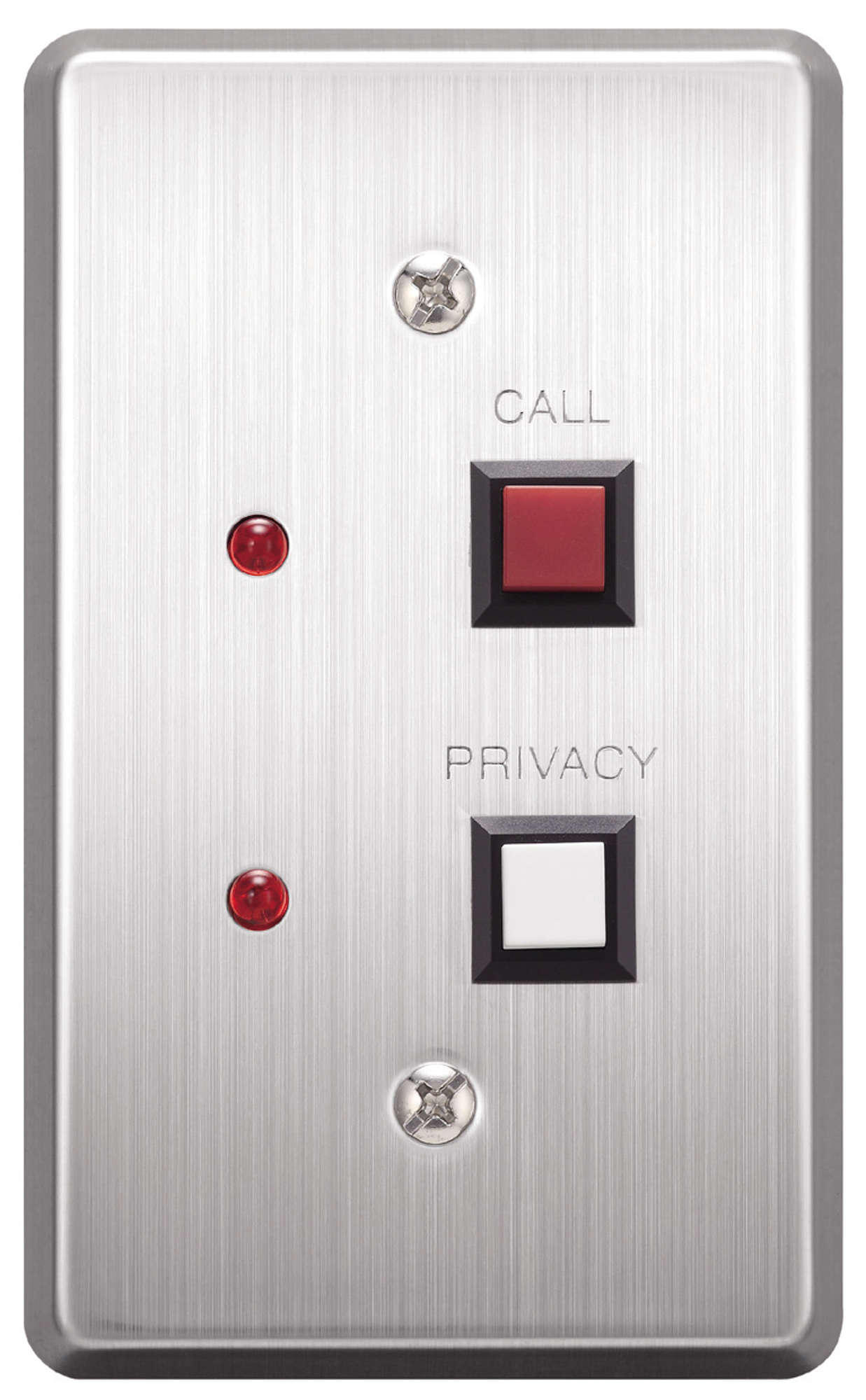

The RS-140 is a switch panel designed for use with the N-8000RS or N-8010RS 2-Core Shielded Substation Interface Unit. It is equipped with a Call button and a Privacy button, and can be installed in a 1-gang electrical box. By connecting a high impedance speaker to it, hands-free conversation with the master station can be made through its speaker. Also, it can be used in connection with the RS-141 Ip Intercom Option Handset.

  • Indoor Use
  • Status indicator (Call, Conversation, Privacy)
  • With call and privacy button
  • Half-duplex conversation
  • Handset conversation (with optional RS-141)
  • Conversation via external speaker (optional)




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
RS-140 RS-141 RS-142 RS-143 RS-144
Finish

Stainless steel

ABS resin, white

Stainless steel

Stainless steel

Dimensions

70 x 115 x 28.6 mm (W x H x D)

116 x 220 x 71 mm (W x H x D)

70 x 115 x 28.6 mm (W x H x D)

70 x 115 x 28.6 mm (W x H x D)

Weight

0.08 kg

350 g

30 g

0.08 kg

0.08 kg

Accessory (included)

Mounting bracket 1x, bracket mounting screw 2x, Box mounting screw 4x

Mounting bracket 1x, bracket mounting screw 2x, Box mounting screw 4x

Mounting bracket 1x, bracket mounting screw 2x, Box mounting screw 4x

Controls

Volume control: 12 - 18 dB (max.)

Operating temperature

0°C to +40°C
