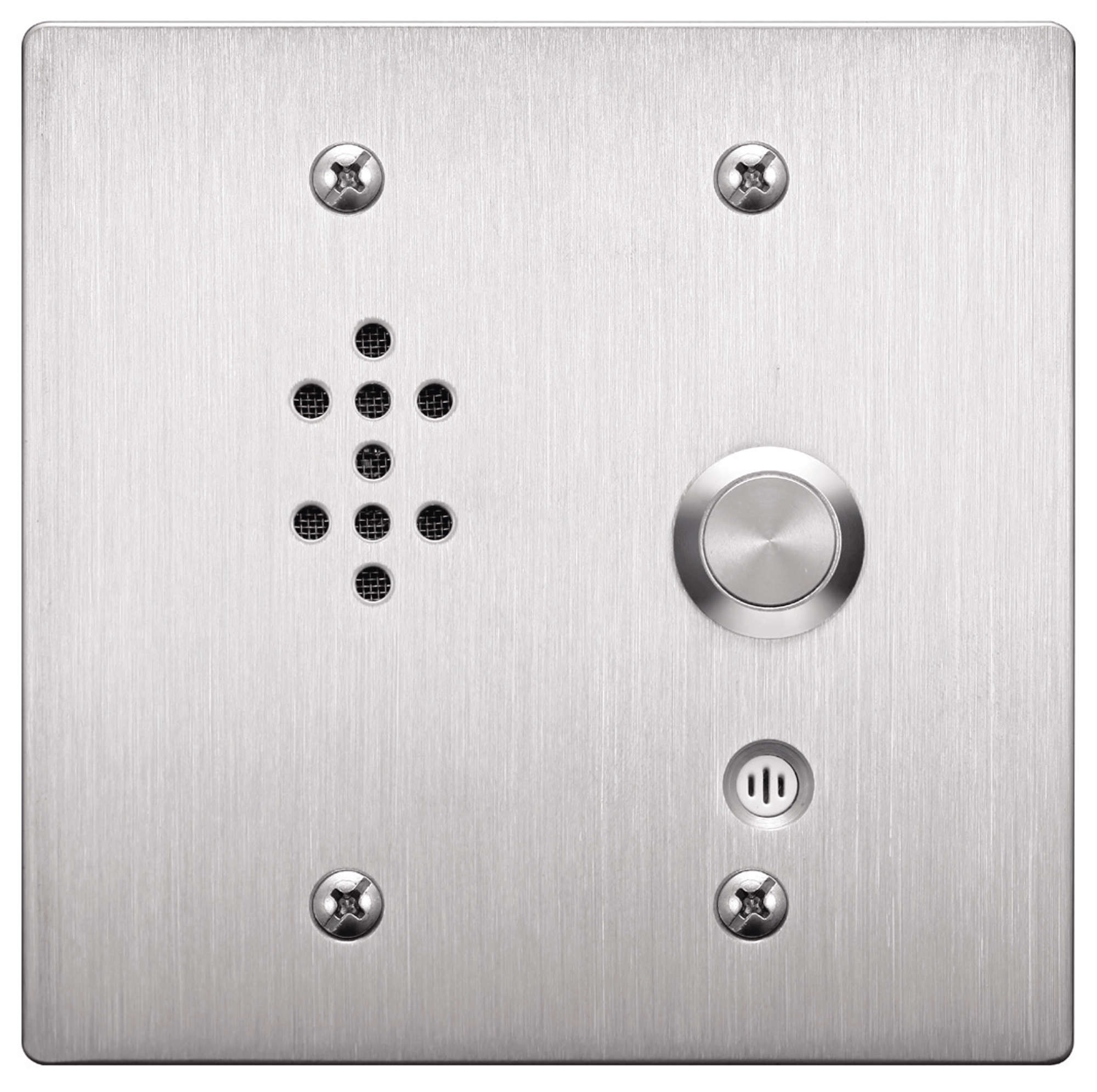

RS-460

Sub-station (Indoor Vandal-Resistant Type)

The RS-460 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit. Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation.

  • Indoor use
  • Vandal-resistant
  • Half-duplex communication
  • Heavy duty stainless steel faceplate




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
RS-460 RS-450 RS-470 RS-480
Operating temperature

0 °C to +40 °C

0 °C to +40 °C

0 °C to +40 °C

0 °C to +40 °C

Finish

Stainless steel, hairline

Stainless steel, hairline

Stainless steel, hairline

Stainless steel, hairline

Dimensions

120 x 120 x 49.5 mm (W x H x D)

120 x 120 x 41.5 mm (W x H x D)

120 x 120 x 49.5 mm (W x H x D)

120 x 120 x 50.5 mm (W x H x D)

Weight

0.54 kg

0.51 kg

0.55 kg

0.58 kg

Accessory (included)

Box Mounting Screw 8x

Box Mounting Screw 8x

Box Mounting Screw 8x

Box Mounting Screw 8x

Control output

Open collector output:

30 V DC, 30 mA
