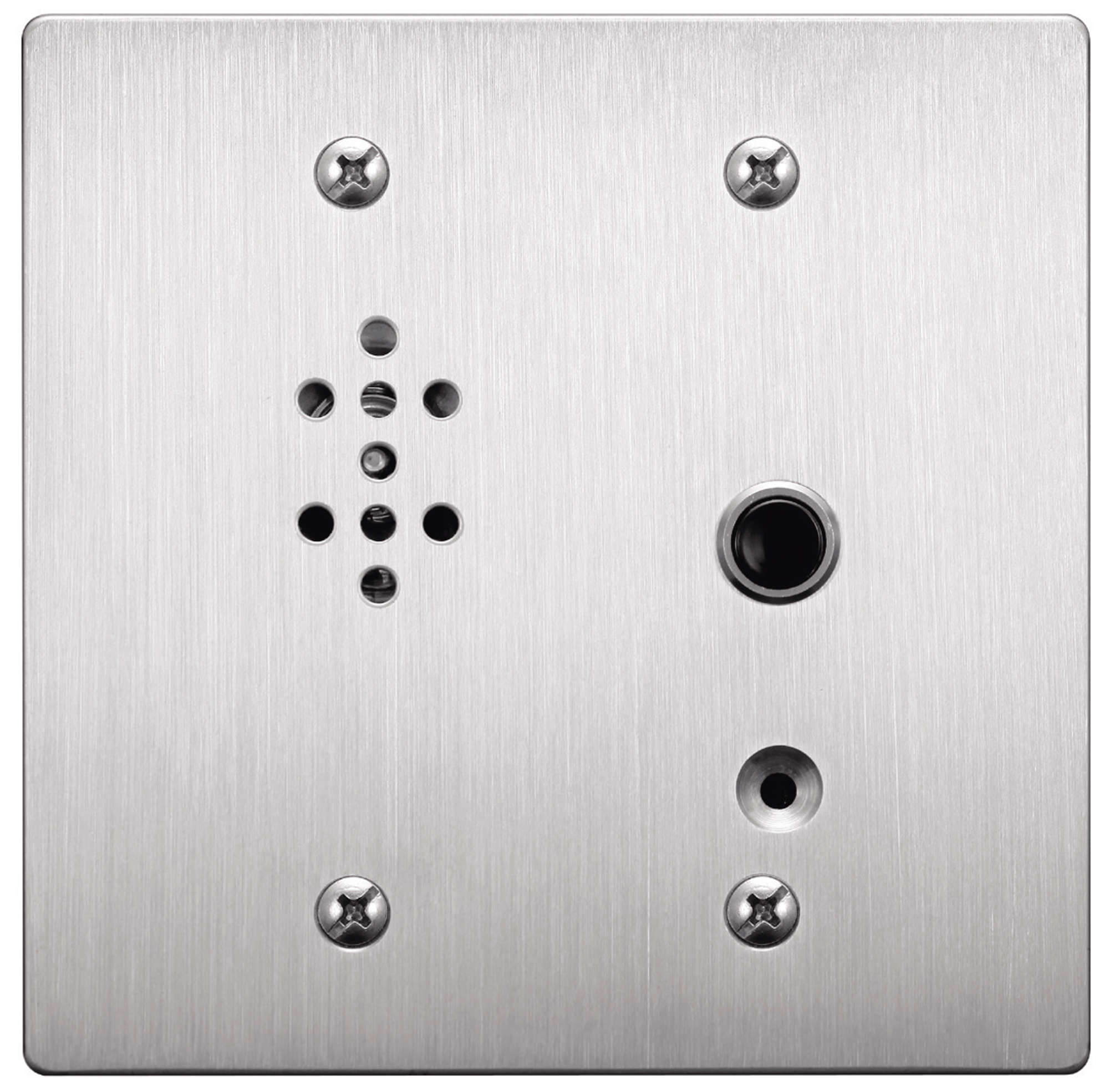

RS-450

RS-450

Sub-station (Indoor Type)

The RS-450 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit. Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation.

  • Indoor use
  • Cost-effective
  • Half-duplex conversation



Brochure
  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
RS-450 RS-460 RS-470 RS-480
Operating temperature

0 °C to +40 °C

0 °C to +40 °C

0 °C to +40 °C

0 °C to +40 °C
Finish

Stainless steel

Stainless steel

Stainless steel

Stainless steel
Dimensions

120 x 120 x 41.5 mm (W x H x D)

120 x 120 x 49.5 mm (W x H x D)

120 x 120 x 49.5 mm (W x H x D)

120 x 120 x 50.5 mm (W x H x D)
Weight

0.51 kg

0.54 kg

0.55 kg

0.58 kg
Control output

Open collector output:

30 V DC, 30 mA
