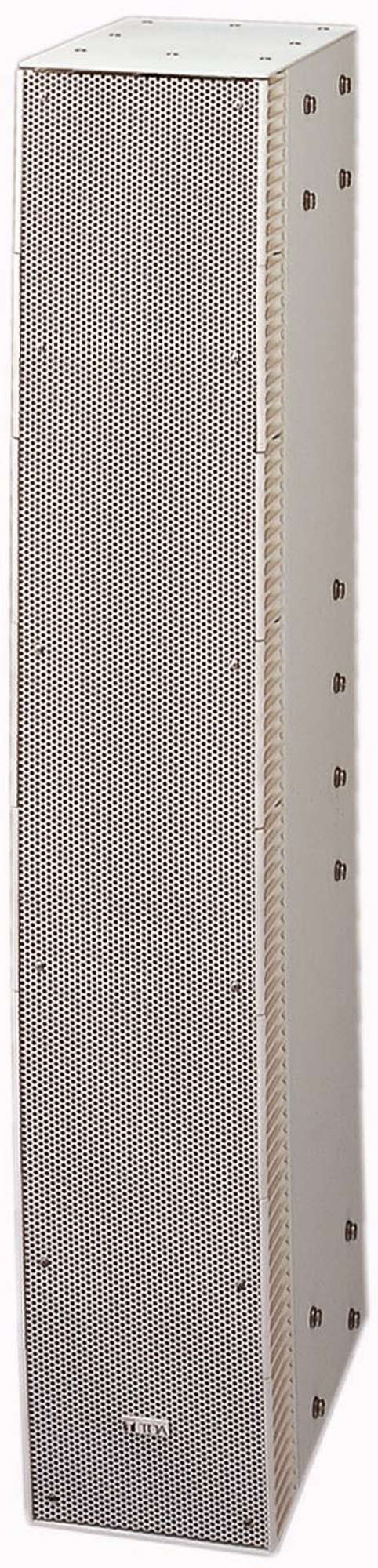

SR-S4SWP
Line Arrays
The SR-S4SWP is a splash-proof two-way line array speaker ideal for short distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It satisfies the water protection requirements set down in the IPX4 Standard. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601 Matching transformer.
- 2-way line array speaker with 8 x 10 cm (4“) woofers and 24 high-frequency drivers, installed vertically
- Sync-Drive technology creates an ideal line sound source
- Clear sound with reduced attenuation over distance
- Targeting the speaker' beam to the listener area reduces reflections from floor and ceiling and reduces the danger of feedback
- Splashproof versions (SR-S4LWP/SR-S4SWP)
- Bi-amp or single amp drive possible
- Wide variety of mounting brackets available
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| SR-S4SWP | SR-S4S | SR-S4SEB-Q | |
|---|---|---|---|
| Frequency response |
70 Hz - 20 kHz |
70 Hz - 20 kHz |
70 Hz - 20 kHz |
| Sensitivity (1 W, 1 m) |
93 dB |
93 dB |
93 dB |
| Rated input (low impedance) |
Continuous program: 600 W |
Continuous program: 600 W |
200 W (pink noise), 600 W (continuous program) |
| Rated impedance (low impedance) |
8 Ω |
8 Ω |
8 Ω |
| Speaker component |
Low frequency: 10 cm cone-type × 8, High frequency: 2.5 cm balanced dome-type × 24 |
Low frequency: 10 cm cone-type × 8, High frequency: 2.5 cm balanced dome-type × 24 |
8 woofers 10 cm, 24 balanced dome tweeters |
| Max. SPL (1 m) |
121 dB |
||
| Crossover frequency |
4 kHz |
4 kHz |
|
| Dimensions |
160 x 892 x 303 mm (W x H x D) |
160 x 892 x 303 mm (W x H x D) |
161 x 892 x 303 mm (W x H x D) |
| Finish |
Plywood, off-white (RAL 9010 or equivalent) |
MDF, off-white (RAL 9010 or equivalent) |
Plywood |
| Weight |
16 kg |
16 kg |
|
| Dust / Water protection. |
IPx4 |
