SR-S4S

Line Arrays

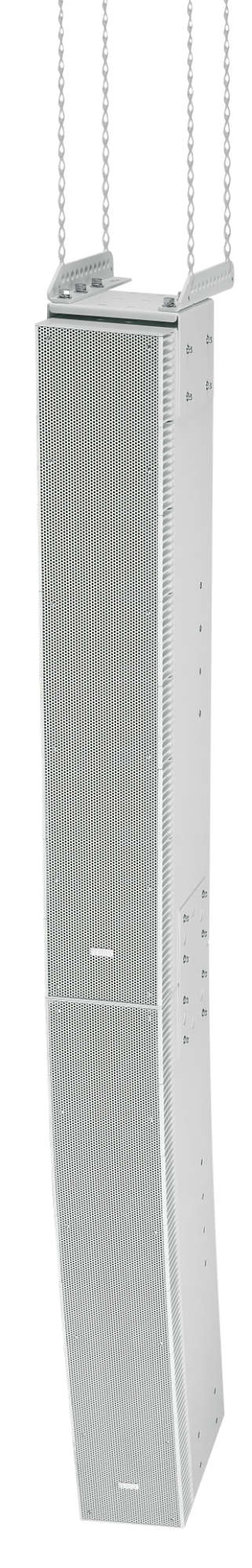

The SR-S4S is a two-way line array speaker ideal for short distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601 Matching transformer.

  • 2-way line array speaker with 8 x 10 cm (4“) woofers and 24 high-frequency drivers, installed vertically
  • Sync-Drive technology creates an ideal line sound source
  • Clear sound with reduced attenuation over distance
  • Targeting the speaker' beam to the listener area reduces reflections from floor and ceiling and reduces the danger of feedback
  • Splashproof versions (SR-S4LWP/SR-S4SWP)
  • Bi-amp or single amp drive possible
  • Wide variety of mounting brackets available




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
SR-S4S SR-S4SWP SR-S4SEB-Q
Frequency response

70 Hz - 20 kHz

70 Hz - 20 kHz

70 Hz - 20 kHz

Sensitivity (1 W, 1 m)

93 dB

93 dB

93 dB

Rated input (low impedance)

Continuous program: 600 W

Continuous program: 600 W

200 W (pink noise), 600 W (continuous program)

Rated impedance

8 Ω

8 Ω

8 Ω

Speaker component

Low frequency: 10 cm cone-type × 8, High frequency: 2.5 cm balanced dome-type × 24

Low frequency: 10 cm cone-type × 8, High frequency: 2.5 cm balanced dome-type × 24

8 woofers 10 cm, 24 balanced dome tweeters

Finish

MDF, off-white (RAL 9010 or equivalent)

Plywood, off-white (RAL 9010 or equivalent)

Plywood

Dimensions

160 x 892 x 303 mm (W x H x D)

160 x 892 x 303 mm (W x H x D)

161 x 892 x 303 mm (W x H x D)

Weight

16 kg

16 kg

Crossover frequency

4 kHz

4 kHz

Max. SPL (1 m)

121 dB

Dust / Water protection.

IPx4
