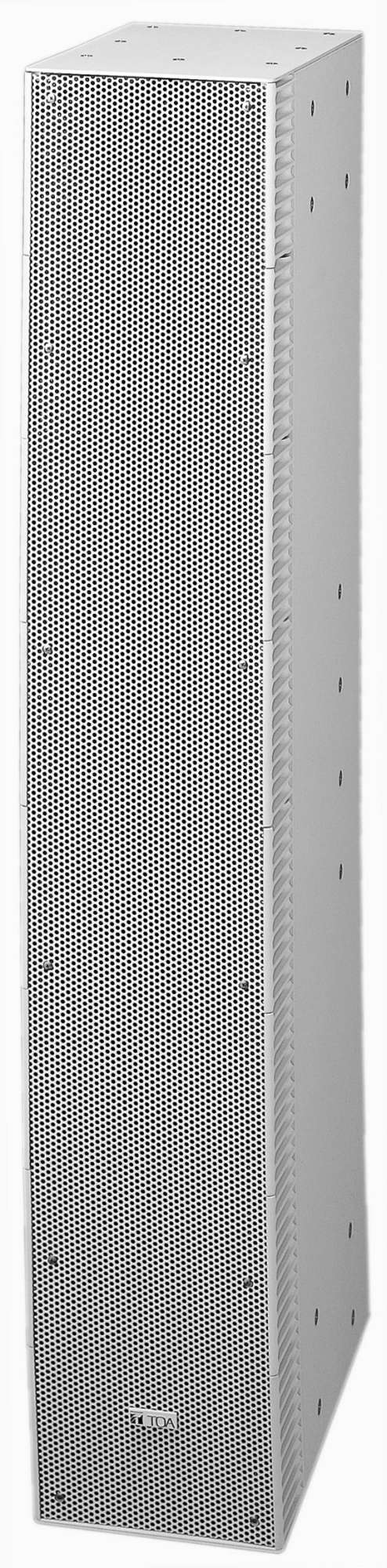

SR-S4SEB-Q
Line Arrays
The SR-S4SWP is a two-way line array speaker ideal for short distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It satisfies the water protection requirements set down in the IPX4 Standard as well as EN54-24. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601 Matching transformer.
- 2-way line array speaker with 8 x 10 cm (4“) woofers and 24 high-frequency drivers, installed vertically
- Sync-Drive technology creates ideal linear sound source
- Clear sound with reduced attenuation over distance
- Speakers are reflection-free and feedback resistant
- Splashproof versions (SR-S4LWP/SR-S4SWP)
- Bi-amp or single amp drive possible
- Wide variety of mounting brackets available
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| SR-S4SEB-Q | SR-S4LEB-Q | |
|---|---|---|
| Frequency response |
70 Hz - 20 kHz |
70 Hz - 20 kHz |
| Connection |
Direct cable withdrawal from internal speaker: ø8.6 mm, conductor cross section: 1.25 mm2, 4-core cable, 3 m |
Direct cable withdrawal from internal speaker: ø8.6 mm, conductor cross section: 1.25 mm2, 4-core cable, 3 m |
| Sensitivity (1 W, 1 m) |
93 dB |
94 dB |
| Speaker component |
Low frequency: 10 cm cone-type × 8, High frequency: 2.5 cm balanced dome-type × 24 |
Low frequency: 10 cm cone-type × 8, High frequency: 2.5 cm balanced dome-type × 24 |
| Directivity angle horizontal |
90 ° |
90 ° |
| Directivity angle vertical |
10 ° |
|
| Rated impedance |
8 Ω |
8 Ω |
| Crossover frequency |
4 kHz |
4 kHz |
| Power handling capacity |
Continuous program: 600 W |
Continuous program: 600 W |
| Finish |
Plywood, urethane coating, off-white (RAL 9010 or equivalent) |
Plywood, urethane coating, off-white (RAL 9010 or equivalent) |
| Dimensions (W x H x D) |
160 x 892 x 303 mm |
160 x 895 x 255 mm |
| Weight |
16 kg |
16 kg |
