SR-H2S

Line Array

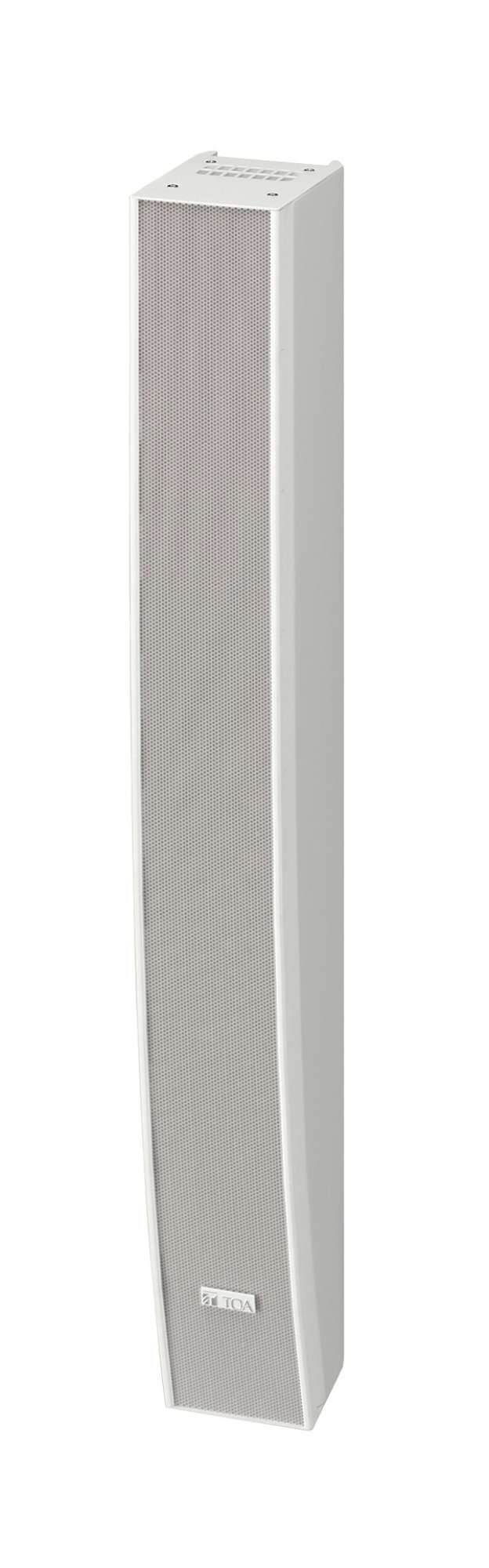

The curved SR-H2S Line array speaker forms a line sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching transformer.

  • Slim line array with excellent directivity
  • Narrow 84 mm design allows speakers to fit in well with the interior decor of the venue
  • Sync-Drive technology creates ideal linear sound source
  • Clear sound with reduced attenuation over distance
  • Refl ection-free and feedback resistant
  • Curved speaker model for a slightly higher vertical dispersion




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
SR-H2S SR-H2S SR-H3L SR-H3S
Frequency response

90 Hz - 17 kHz

90 Hz - 17 kHz

110 Hz - 18 kHz

90 Hz - 17 kHz

Sensitivity (1 W, 1 m)

90 dB

90 dB

95 dB

92 dB

Rated input (low impedance)

Continuous program: 180 W

Continuous program: 180 W

Continuous program: 360 W

Continuous program: 360 W

Rated impedance

8 Ω

8 Ω

8 Ω

8 Ω

Speaker component

7 cm cone-type x 9

7 cm cone-type x 9

7 cm cone-type x 16

7 cm cone-type x 16

Finish

MDF, off-white (RAL 9010 or equivalent)

MDF, off-white (RAL 9010 or equivalent)

MDF, off-white (RAL 9010 or equivalent)

MDF, off-white (RAL 9010 or equivalent)

Dimensions

84 x 663.4 x 115 mm (W x H x D)

84 x 663.4 x 115 mm (W x H x D)

84 x 1186.4 x 115 mm (W x H x D)

84 x 1177.2 x 157 mm (W x H x D)

Weight

4.2 kg

4.2 kg

7.6 kg

7.9 kg

Connection

Removable input connector

Removable input connector

Removable input connector

Removable input connector

Sensitivity (1 W, 1 m)

90 dB

90 dB

95 dB

92 dB
