Digital Audio Processor

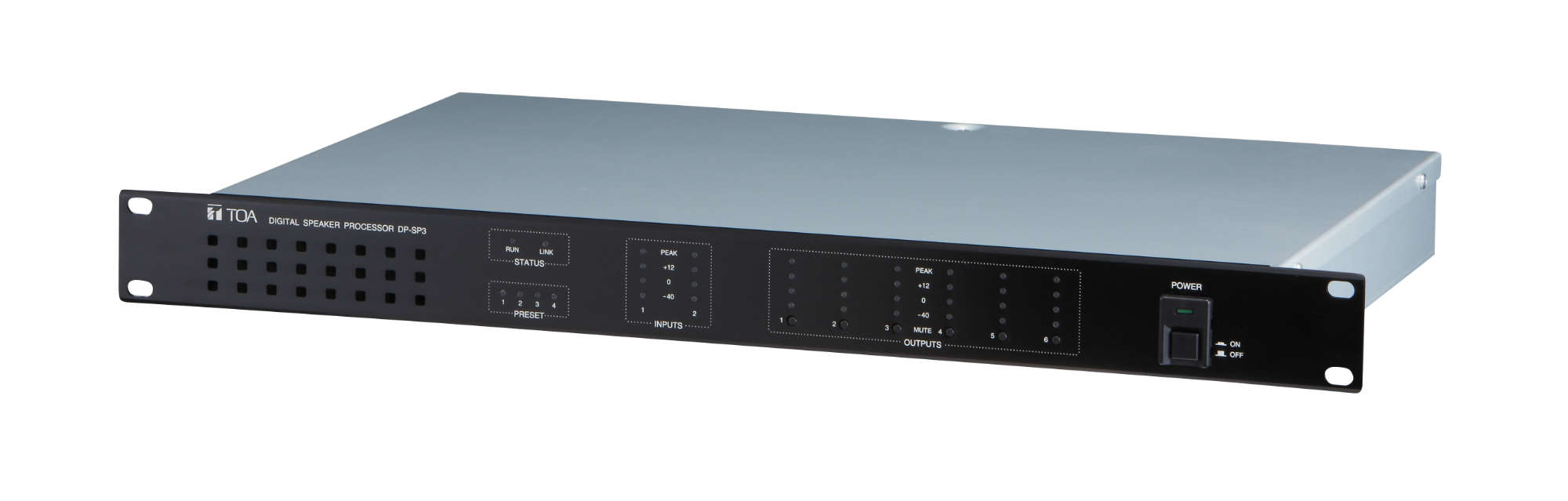

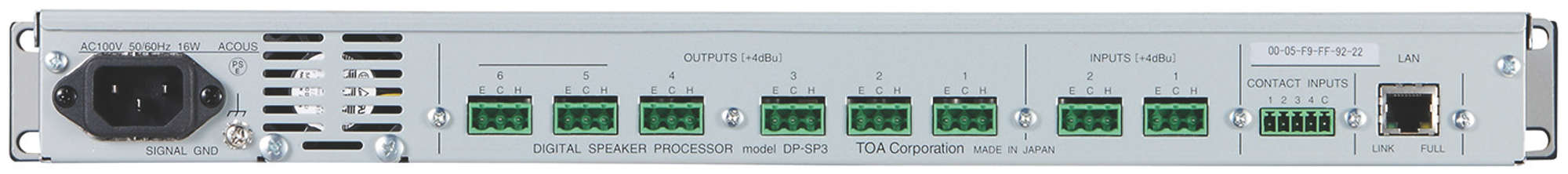

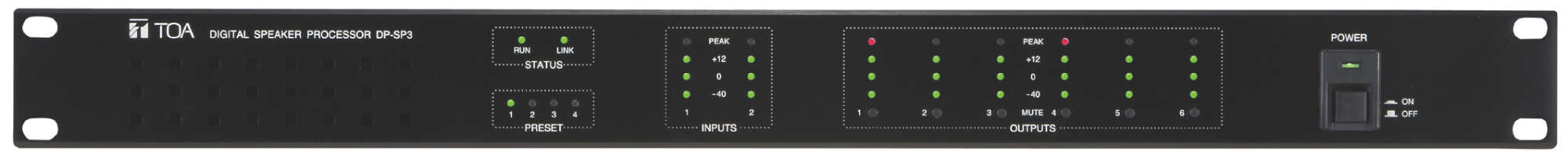

The DP-SP3 is a 1U rack mountable Digital speaker processor having 2 inputs and 6 outputs. It features digital signal processing functions such as Equalizer, Crossover, Matrix, Compressor, and Delay. Other functions include input PAD, analog output attenuator, output MUTE, EQ characteristic library for TOA speakers, and contact input terminals. When connected to a LAN, settings and operations of the DP-SP3 can be performed on a PC with the supplied DP-SP3 PC Software installed. It can be mounted in an EIA component rack (1U size).

  • Digital Speaker Processor for clear, high-quality and realistic sound, with a full sense of presence
  • Essential audio processing tools: Filters, Compressor, Parametric Equalizer, Output Delay and Mute
  • 10 filters on each input and 12 filters on each output, each filter type selectable
  • Any combinations of parametric equalizer and high/low pass, and high/low shelving filters, as well as all-pass, notch filters and CD horn equalizer are possible
  • 2 inputs & 6 outputs, processor can work with a 3-way multi-amp system



Brochure
Data sheet
  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
DP-SP3
Power source

220 - 240 V AC, 50 / 60 Hz
Frequency response

20 Hz - 20 kHz (±1 dB)
Dynamic range

Over 110 dB
Distortion

< 0.03 % (at 1 kHz)
Power / current consumption

25 W
Crosstalk

-80 dB
Inputs

2 channels, +4 dBu (Max. +24 dBu), 10 kΩ, electronically-balanced, removable terminal block (3P)
Contact inputs: 4 channels, open voltage: 5 V DC, short-circuit current: 5 mA, removable terminal block (5P), control function: preset memory selection, volume control, and mute
Outputs

6 channels, +4 dBu (Max. +24 dBu), applicable load 600 Ω or more, electronically-balanced, removable terminal block (3P)
A/D, D/A Converter

24 bits
LAN

Network I/F: 1 channel of 10BASE-T/100 BASE-TX (auto-negotiation), RJ45 connector, connection via switching hub
Network protocol: TCP/IP, Connection cable: Shielded Cat. 5 or higher twisted pair cable for LAN (Cat. 5-STP or better)
Maximum cable length: 100 m (between DP-SP3 and switching hub)
Sampling frequency

96 kHz
Equalizer / Filter

Parametric Equalizer: 20 Hz – 20 kHz, ±15 dB, Q: 0.267 – 69.249
Filter: High-pass filter: 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct,
Low-pass filter: 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct,
Notch filter: 20 Hz – 20 kHz, Q: 8.651 – 69.249,
All-pass filter: 20 Hz – 20 kHz, Q: 0.267 – 69.249,
High-shelving filter: 20 – 20 kHz, ±15 dB,
Low-shelving filter: 20 – 500 Hz, ±15 dB,
Horn equalizer: 20 kHz, 0 – 18 dB in 0.5 dB steps
Compressor

Threshold: -20 to +20 dBu in 1 dB steps
Ratio: 1:1, 1.1:1,1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 7:1, 8:1, 10:1, 12:1, 20:1, ∞:1
Attack time: 0.2 ms – 5 s
Release time: 10 ms – 5 s
Delay

Delay time: 0 – 682.656 ms in 0.01 ms steps
Matrix

2 x 6
Other features

Input PAD (-14dB) control, analog output attenuator (-∞ to 0 dB in 1 dB steps) control, EQ characteristic library for TOA speakers, input/output level indicator (4-point LED indicator), output MUTE switch x 6
Operating temperature.

0 °C to +40 °C
Operating humidity.

90 % RH (no condensation)
Dimensions.

482 x 44 x 289 mm (W x H x D)
Finish.

Aluminium, hairline, black
Accessory (included)

Power cord (2 m) x 1, Removable terminal plug (3 pins) x 8, Removable terminal plug (5 pins) x 1, Rack nounting screw x 4, CD-ROM (containing setup software) x 1
