Planning example: supermarket

Planning a VAS using the example of a supermarket

The procedure for planning a VAS requires experience in electroacoustics. The following example shall show you some aspects for such a planning. It illustrates a supermarket with the below specifications:

   Circuit  Ceiling
 Zone 1 - 6    Size  Type  Height
 Sales area 1* 1 AB 1547 m2 Trapezoid sheet 6 m
 Sales area 2* 2 AB 1547 m2 Trapezoid sheet 6 m
 Adjoining rooms 3 AB 257 m2 Acoustic ceiling 3 m
 Warehouse 4 AB 287 m2 Smooth concrete 3 m
 Catering / WC 5 AB 190 m2 Acoustic ceiling 3 m
 Technical rooms 6 AB 37 m2 Smooth concrete 3 m


* Sales area split into two virtual fire compartments (Sales area 1 & Sales area 2)


Required features

  • Transmission of background music to selectable zones (5 areas divided into 6 zones)

  • 1 remote microphone for manager’s office

  • 3 paging microphones for cashiers

  • Emergency functions: Automatic and manual voice alarm, emergency microphone in the equipment room


Normative specification

In accordance with EN 60849 (EN 50849) the emergency SPL must be at least 6 – 20 dB above the ambient noise level (10 dB was chosen in the example) and the speech intelligibility must be greater than STI 0.5.


Consideration speaker selection

  • Sales area:
    In comparison to most speaker types pendant speakers can be mounted on trapezoidal sheet ceilings. In addition these can be installed closer to the audience providing better speech intelligibility. Choice of EN 54-24 speaker: PE-154EN

  • Adjoining rooms:
    The acoustic ceiling allows an easy installation of ceiling speakers. Since some of these rooms are to small for more than one speaker, an A/B speaker is most suitable and complying with EN 60849 (EN 50849) or TS 54-32. Choice of EN 54-24 speaker: PC-245AB-EB

  • Warehouse:
    Since the ambient noise in the warehouse is higher than in the sales area, loudspeakers with a higher SPL are neccessary. The fixation requires only one or two screws. Choice of EN 54-24 speaker: CS-154EN

  • Catering / WC:
    The acoustic ceiling allows an easy installation of ceiling speakers. Choice of EN 54-24 speaker: PC-2369EN

  • Technical rooms:
    Typically the ambient noise in technical rooms can be high. Therefore a reflex horn speaker is a good solution. Choice of EN 54-24 speaker: SC-615BS


Ease Evac Simulation

Due to the size the sales area is the most critical sector according to the speech inteligibility. The application of the sound simulation Ease Evac software can support finding the final speaker locations for obtaining the required SPL and STI. Starting with a first idea of speaker distribution, the simulation result gives a hint how to improve the distribution. An iterative process of change and resimulation leads to an optimum result.

An important value for the speech inteligbility calculation is the reverberation time. In the supermarket example it is 1.5 s in the sales area.

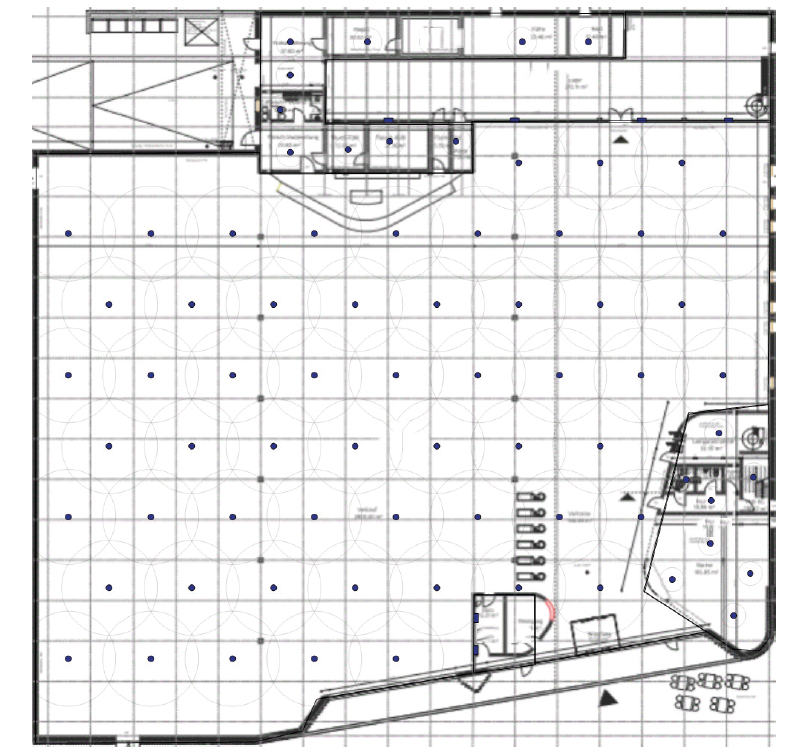

Distribution of the loudspeakers

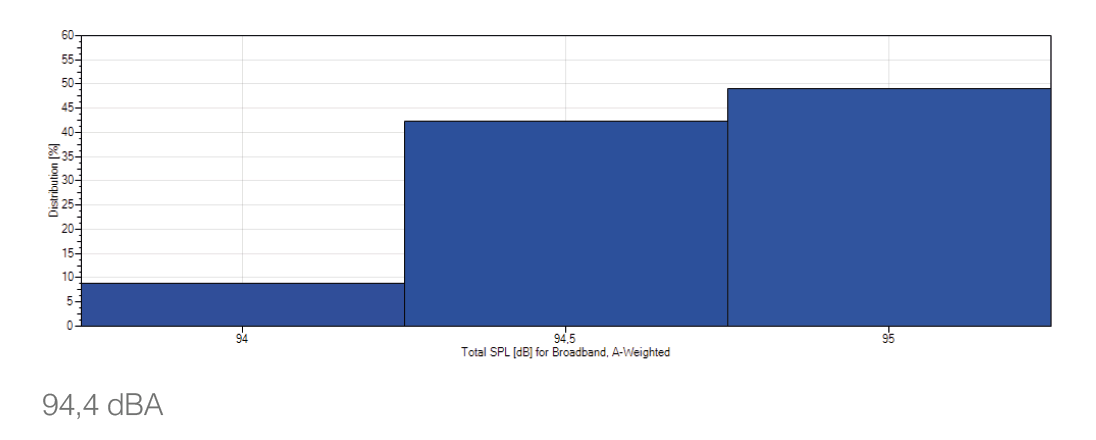

Distribution of the overall SPL in the sales area

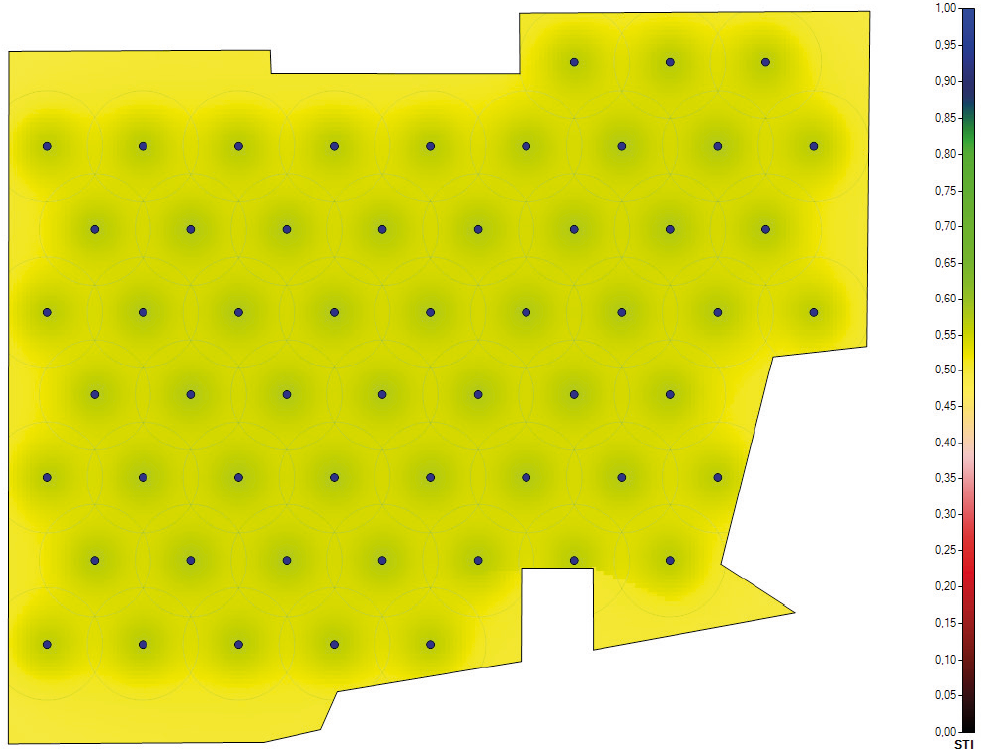

Speech intelligibility in the sales area

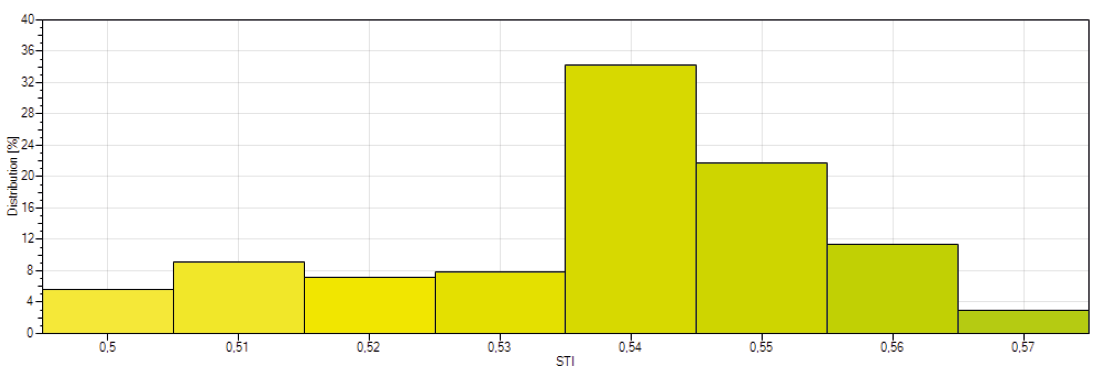

Distribution of speech intelligibility

Average STI 0.56 / STI 0.52 (minus standard deviation)


Final result after simulation

  EN 54-24 loudspeakers
   Quantity  Model  Height  Tapping  Total dB SPL
 (A-weighted)
 Total
 load
 Sales area 1 28  PE-154EN 4,5 m 10 W 94 280 W
 Sales area 2 28  PE-154EN 4,5 m 10 W 94 280 W
 Adjoining
 rooms
11  PC-245AB-EB 3 m 2 x 3 W 88 66 W
 Warehouse 4  CS-154EN   2,5 m 10 W 97 40 W
 Catering / WC 10  PC-2369EN 3 m  3 W 95  30 W
 Technical
 rooms
2  SC-615BS 2,5 m 3 W 108 6 W
   Total load of the 6 A/B loudspeaker circuits: 702 W

Selection of the voice alarm system

All required functions can be fulfilled by the VM-3000 system.

Max. features:

  • Up to 60 zones, can be controlled individually for background music

  • 4 remote microphones

  • 3 audio inputs for paging microphones, e.g. PM-660D

  • Integrated voice storage function for automatic and manual voice alarm as well as integrated emergency microphone on VM-3360VA

Using system manager VM-3360VA and expansion amplifier VM-3360E enables 6 A/B loudspeaker circuits with an adequate total amplifier power of 720 watts.
