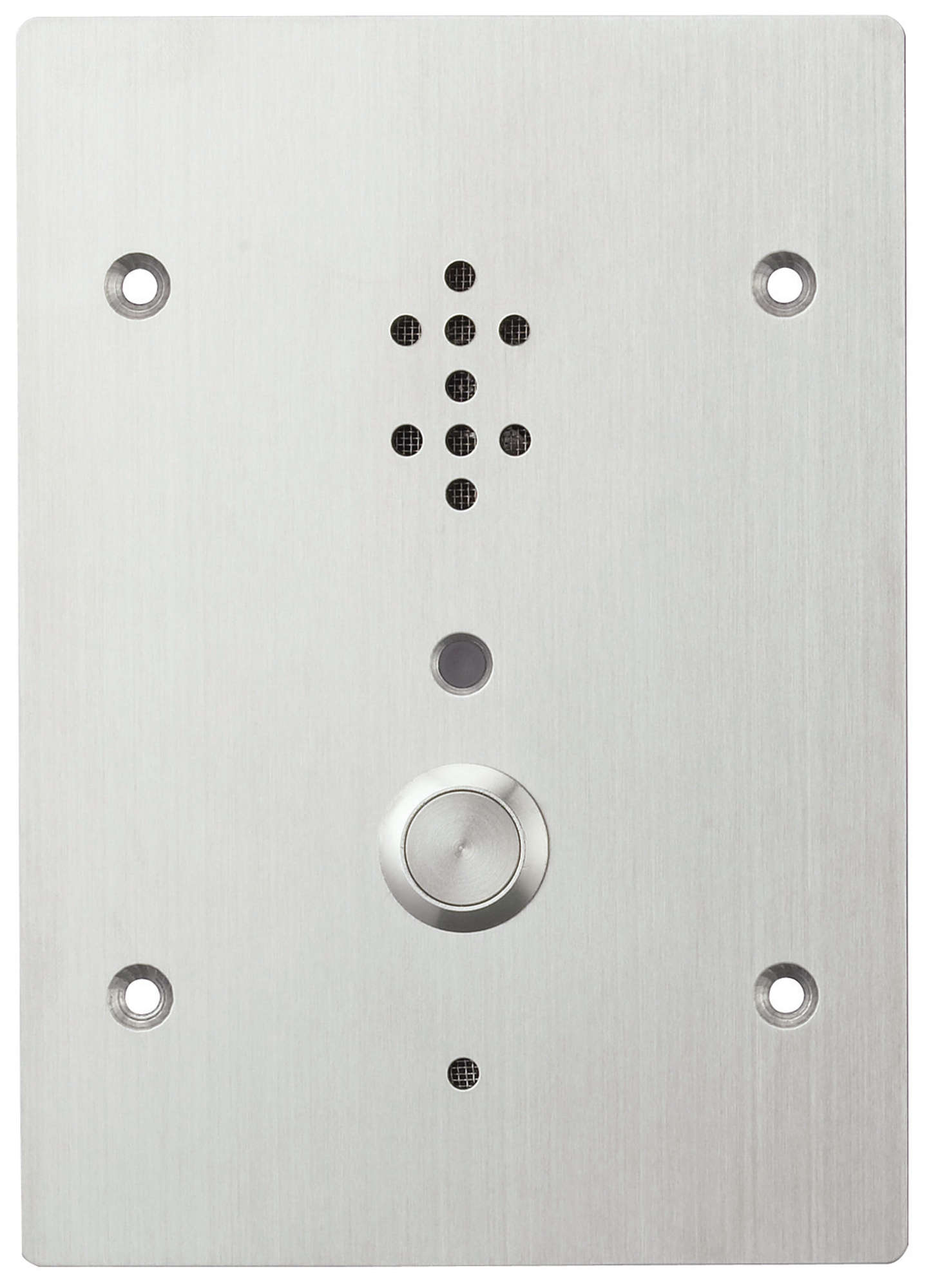

N-8050DS
Door Station
Designed to connect to the IP Intercom Exchange, the N-8050DS is a door station featuring high quality hands-free conversation. It has a contact output (momentarily closed) to remotely control an electronic door lock. It is in full conformity with IP54 water-proof and dust-proof standards. The operating temperature range is -10 to 50°C. As provided with guard nets inside to cover over the openings of microphone and speaker, the N-8050DS can be installed free from care in public space.
- For indoor / outdoor use
- Hands-free conversation
- Contact output
- Status LED
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| N-8050DS | N-8050SB | N-8031MS | |
|---|---|---|---|
| Power source |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
| Power / current consumption |
2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
| Frequency response |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
| Outputs |
Open collector output, withstand voltage: max. 30 V DC, control current: max. 50 mA, one shot: can be set from1 to 9 sec, screw terminal (polarized) |
Open collector output, withstand voltage: max. 30 V DC, control current: max. 50 mA, one shot: can be set from1 to 9 sec, screw terminal (polarized) |
|
| Inputs |
No-voltage make contact input, open voltage: 5 V DC, short-circuit current: 1 mA, screwless connector (5 pins) |
||
| Dimensions |
115 x 162 x 54 mm (W x H x D) |
67 x 128.3 x 26 mm (W x H x D) |
115 x 254 x 54.6 mm (W x H x D) |
| Finish |
Stainless steel |
Stainless steel |
|
| Weight |
0.68 kg |
0.1 kg |
0.85 kg |
Application examples
Equipment
Tender text
Downloads
