N-8050SB
Door Station Board

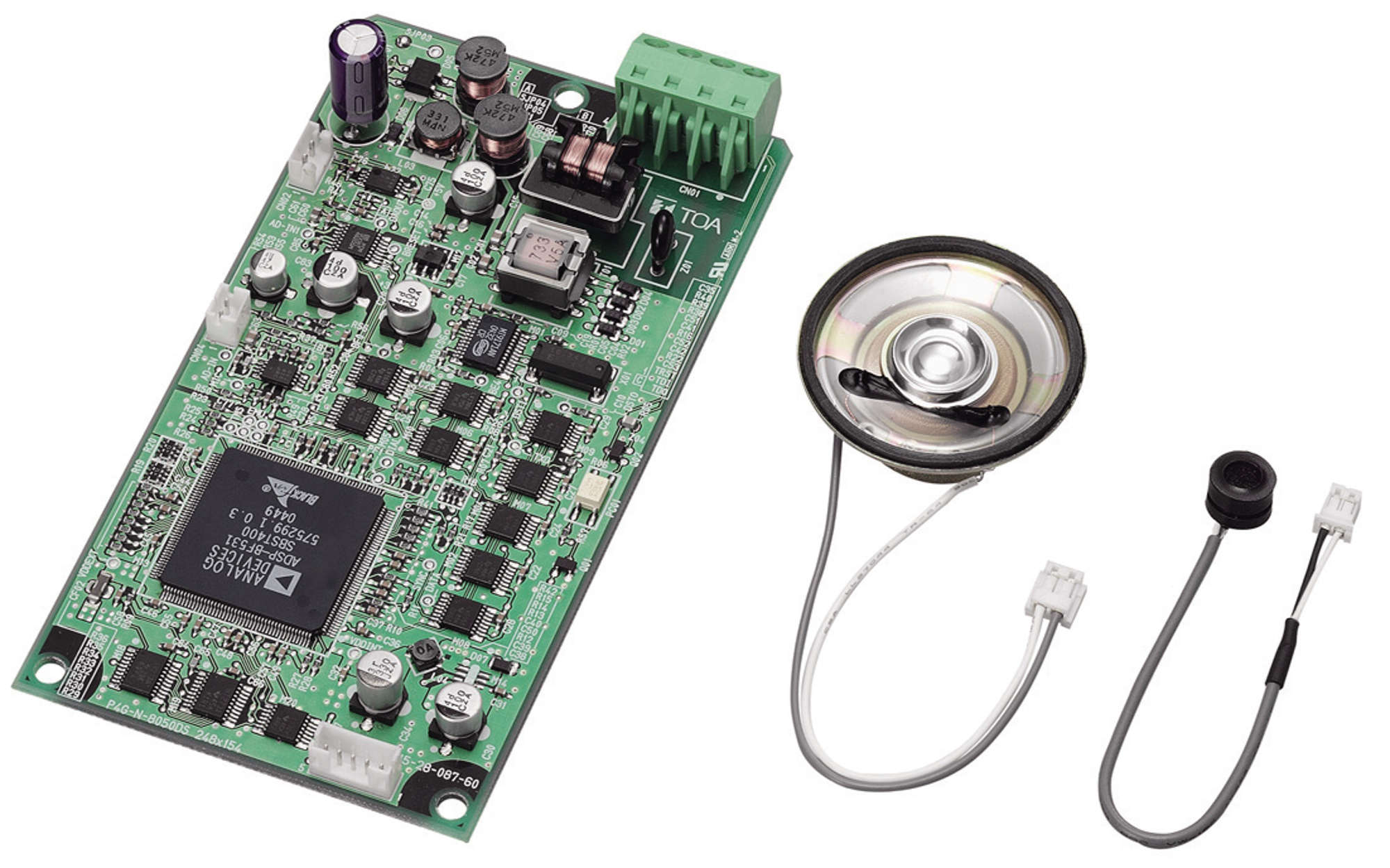

The N-8050SB is a printed circuit board unit for the N-8050DS Door Station, You can make the sub station suitable for applications using the N-8050SB in combination with the operation panel section to be prepared separately.
- Hands-free door station board unit
- For custom made solutions
- Features like N-8050DS
- Specifications
- Application examples
- Tender text
- Downloads
Specifications
Specifications for product:
| N-8050SB | N-8050DS | |
|---|---|---|
| Power source |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
| Power / current consumption |
2.4 W (max.) |
2.4 W (max.) |
| Frequency response |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
| Outputs |
Open collector output, withstand voltage: max. 30 V DC, control current: max. 50 mA, one shot: can be set from1 to 9 sec, screw terminal (polarized) |
Open collector output, withstand voltage: max. 30 V DC, control current: max. 50 mA, one shot: can be set from1 to 9 sec, screw terminal (polarized) |
| Dimensions |
67 x 128.3 x 26 mm (W x H x D) |
115 x 162 x 54 mm (W x H x D) |
| Weight |
0.1 kg |
0.68 kg |
| Finish |
Stainless steel |
