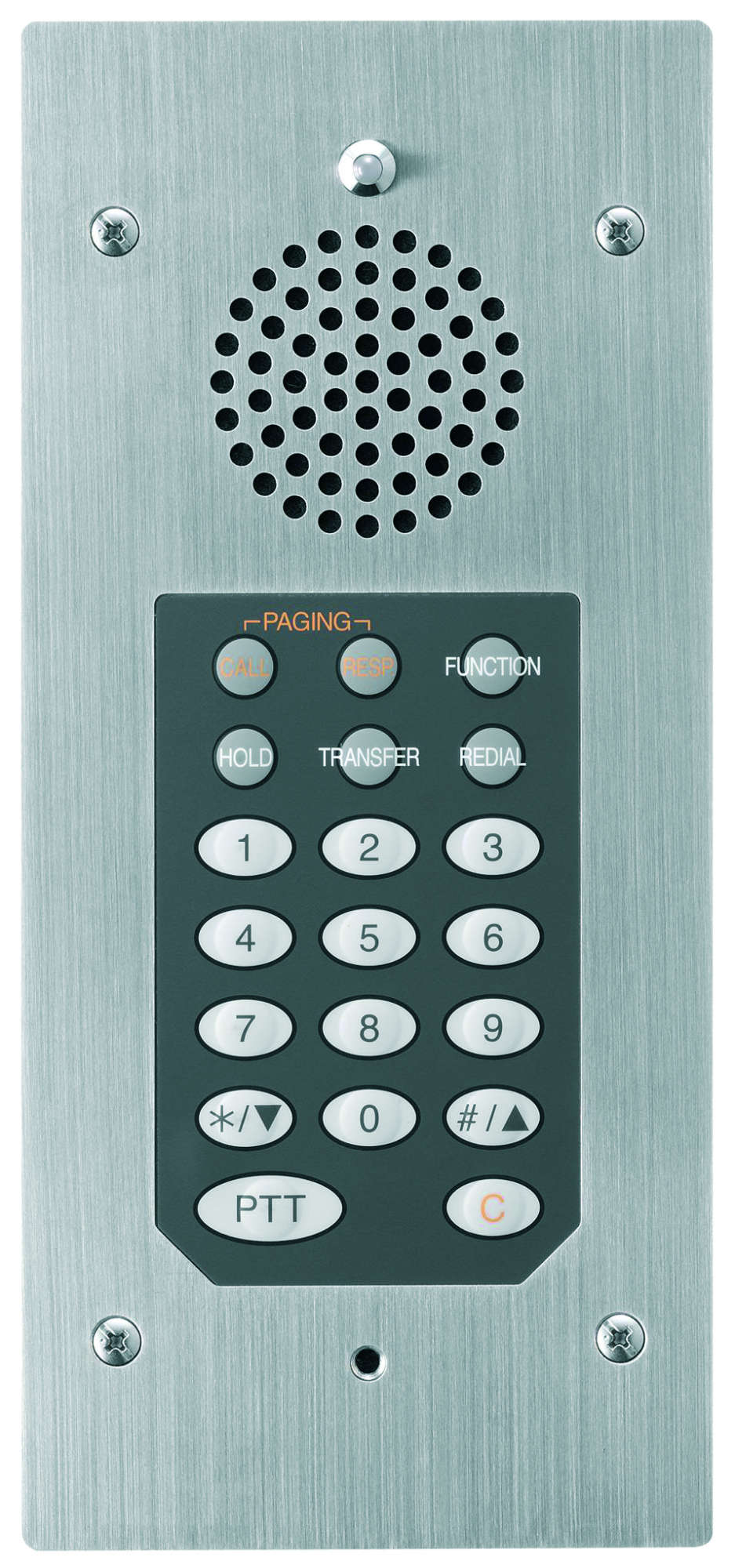

N-8031MS
Flush-Mount Hands-Free Master Station
The N-8031MS is a flush- or surface-mount master station designed to operate in conjunction with TOA IP Intercom Exchange and features high quality hands-free conversation. Connecting a foot switch or other external switch to the external dial input terminal permits one-touch dialing operation by way of such switches. Handset conversation can be established in conjunction with the optional RS-191.
- Paging and Communication function
- Hands-free or handset conversation
- Contact Input
- High sound quality
- Status LED
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| N-8031MS | N-8033MS | N-8000MS | N-8065MS | N-8010MS | N-8011MS | |
|---|---|---|---|---|---|---|
| Power source |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
| Power / current consumption |
2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
1.8 W (at rated), 2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
| Frequency response |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
| Dimensions. |
115 x 254 x 54.6 mm (W x H x D) |
115 x 254 x 54.6 mm (W x H x D) |
148 x 208 x 70.5 mm (W x H x D) |
160 x 360 x 91 mm (W x H x D) |
148 x 208 x 70.5 mm (W x H x D) |
92 x 195 x 56.1 mm (W x H x D) |
| Finish. |
Stainless steel, hairline |
white, grey |
ABS resin, grey |
Aluminium, orange |
ABS resin, grey |
ABS resin, grey |
| Accessory (included) |
Box mounting screw (No.6-32UNC x 18) 4x, Box mounting screw (M4x25) 4x, Removable terminal plug (2 pins preinstalled on the unit) 1x, Handset jumper (8 pins, preinstalled on the unit) 1x, Ferrite clmap 1x |
Box mounting screw (M4x35) 4x, Acoustic absorbent 1x, Removable terminal plug (2 pins, preinstalled on the unit) 1x |
Connection Cord (3m) 1x |
Connection Cord (3m) 1x |
Connection cord (3m) 1x |
