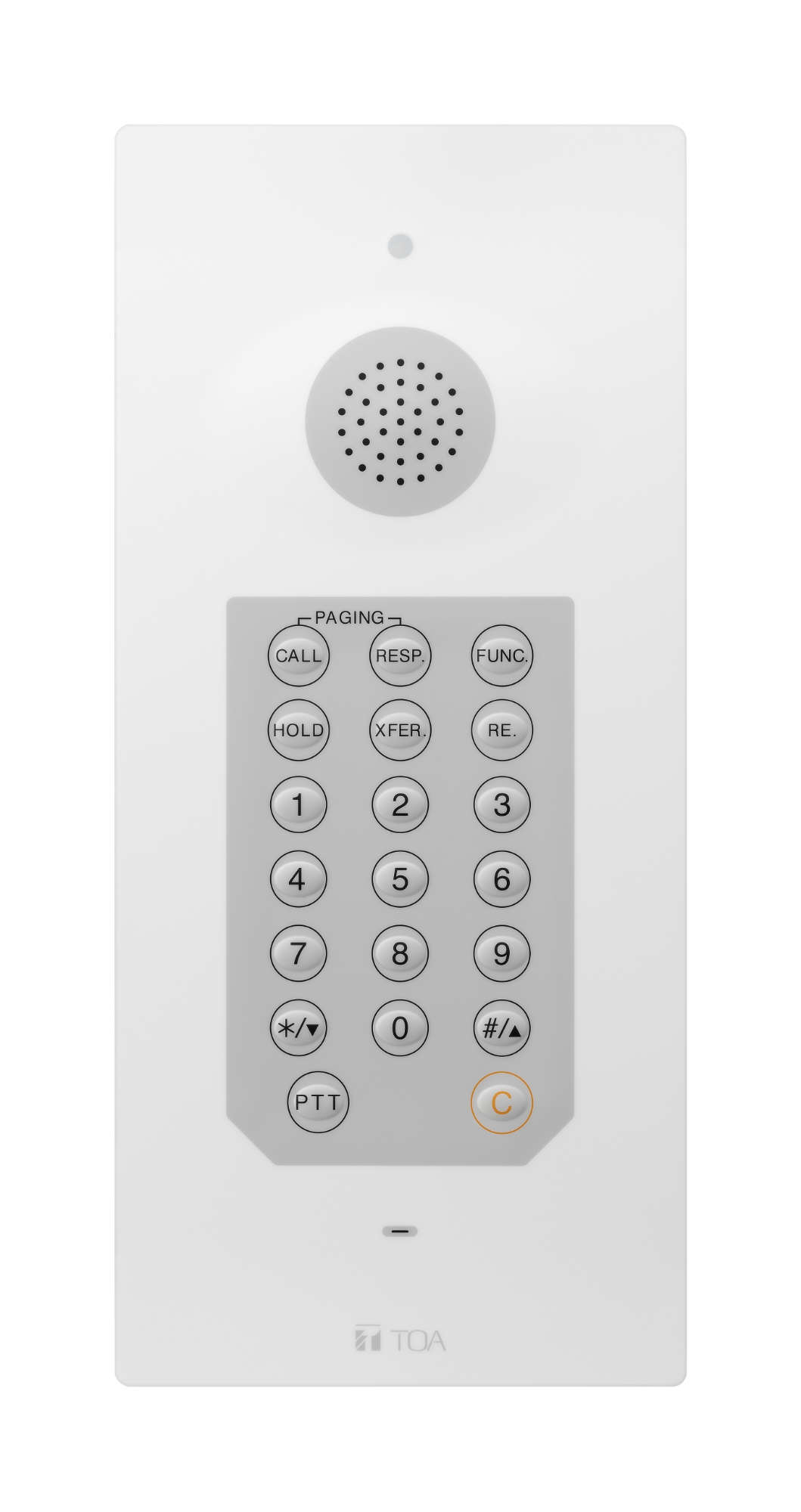

N-8033MS
Flush-Mount Master Station
The N-8033MS is a flush- or surface-mount master station designed to operate in conjunction with TOA IP Intercom Exchange and features high quality hands-free conversation. Connecting a foot switch or other external switch to the external dial input terminal permits one-touch dialing operation by way of such switches.
- Paging and Communication function
- Hands-free conversation
- Contact Input
- High sound quality
- Chemical resistant (clean room)
- Status LED
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| N-8033MS | N-8031MS | N-8000MS | N-8010MS | N-8011MS | N-8020MS | N-8065MS | |
|---|---|---|---|---|---|---|---|
| Power source |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
| Power / current consumption |
2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
1.8 W (at rated), 2.4 W (max.) |
| Frequency response |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
| Inputs |
No-voltage make contact input, open voltage: 5 V DC, short-circuit current: 1 mA, screwless connector (5 pins) |
No-voltage make contact input, open voltage: 5 V DC, short-circuit current: 1 mA, screwless connector (5 pins) |
|||||
| Outputs |
Open collector output (The contacts have polarity.)/ Withstand voltage: max. 30 V DC, Control current: max. 50 mA, screwless connector (2P) |
||||||
| Dimensions |
115 x 254 x 54.6 mm (W x H x D) |
115 x 254 x 54.6 mm (W x H x D) |
148 x 208 x 70.5 mm (W x H x D) |
148 x 208 x 70.5 mm (W x H x D) |
92 x 195 x 56.1 mm (W x H x D) |
170 x 220 x 97.8 mm (W x H x D) |
160 x 360 x 91 mm (W x H x D) |
| Finish |
white, grey |
Stainless steel |
ABS resin, grey |
ABS resin, grey |
ABS resin, grey |
ABS resin, grey |
Aluminium, orange |
| Weight |
0.85 kg |
0.85 kg |
0.8 kg |
0.7 kg |
0.4 kg |
1 kg |
3.75 kg |
