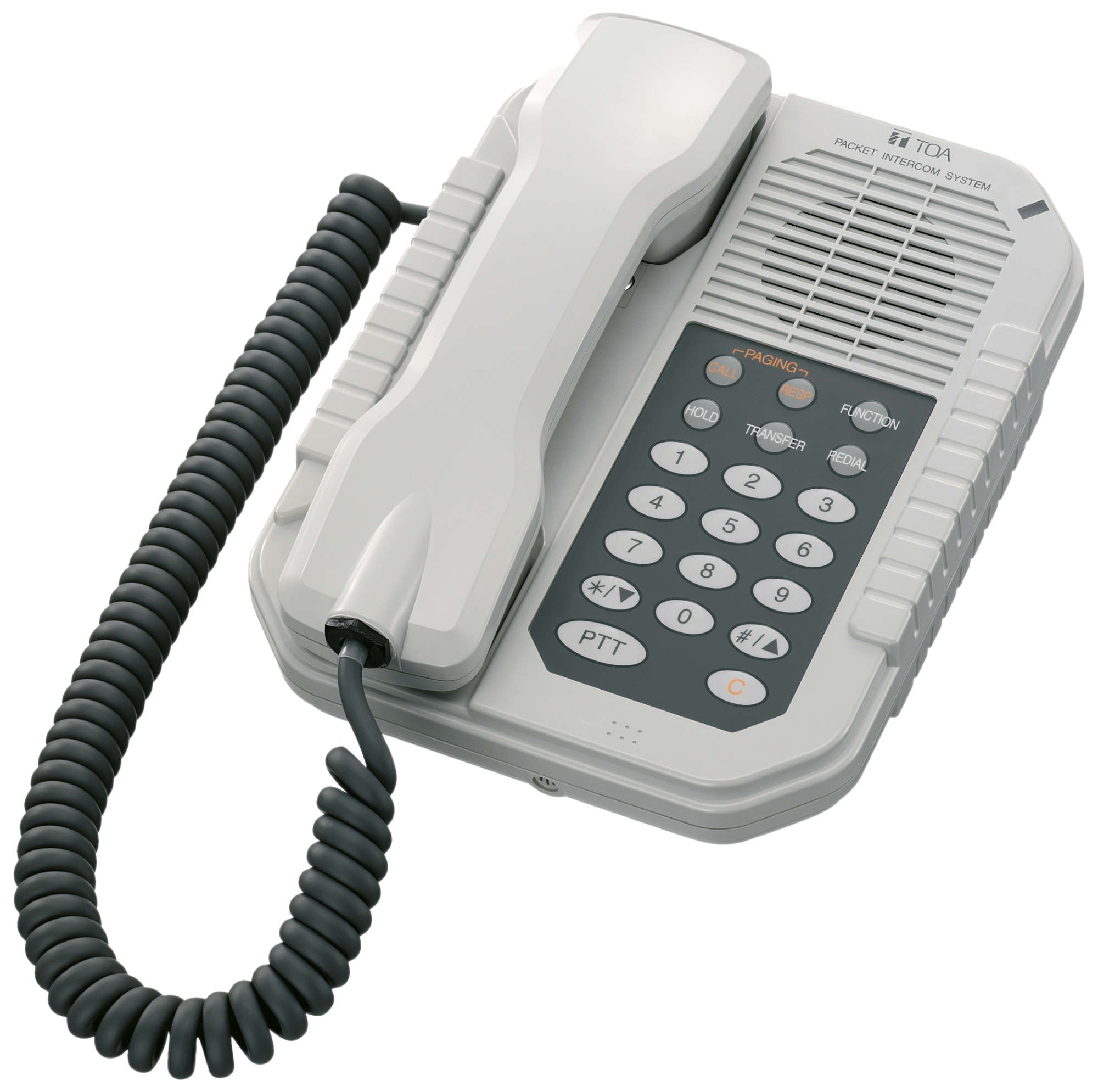

N-8020MS
Industrial-Use Master Station
This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free or handset conversation of high sound quality. It features dustproof and waterproof construction, and can be used in locations exposed to ambient temperatures ranging from -10 °C to +50 °C. In addition to the functions of the standard Master Station, the Industrial-Use Station permits connection of external speakers, and can take out control signal for dial-in indicator from its contact output. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.
- Paging and Communication function
- Industrial use Master Station
- Dustproof and waterproof construction IP54
- Wide ambient temperature range
- Connection of external speaker
- Status LED
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| N-8020MS | N-8065MS | N-8010MS | N-8000MS | N-8011MS | N-8031MS | N-8033MS | |
|---|---|---|---|---|---|---|---|
| Power source |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
48 V DC (supplied from the IP network intercom exchange) |
| Power / current consumption |
2.4 W (max.) |
1.8 W (at rated), 2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
2.4 W (max.) |
| Frequency response |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
300 Hz - 7 kHz |
| Finish |
ABS resin, grey |
Aluminium, orange |
ABS resin, grey |
ABS resin, grey |
ABS resin, grey |
Stainless steel |
white, grey |
| Dimensions |
170 x 220 x 97.8 mm (W x H x D) |
160 x 360 x 91 mm (W x H x D) |
148 x 208 x 70.5 mm (W x H x D) |
148 x 208 x 70.5 mm (W x H x D) |
92 x 195 x 56.1 mm (W x H x D) |
115 x 254 x 54.6 mm (W x H x D) |
115 x 254 x 54.6 mm (W x H x D) |
| Weight |
1 kg |
3.75 kg |
0.7 kg |
0.8 kg |
0.4 kg |
0.85 kg |
0.85 kg |
