Sub control unit

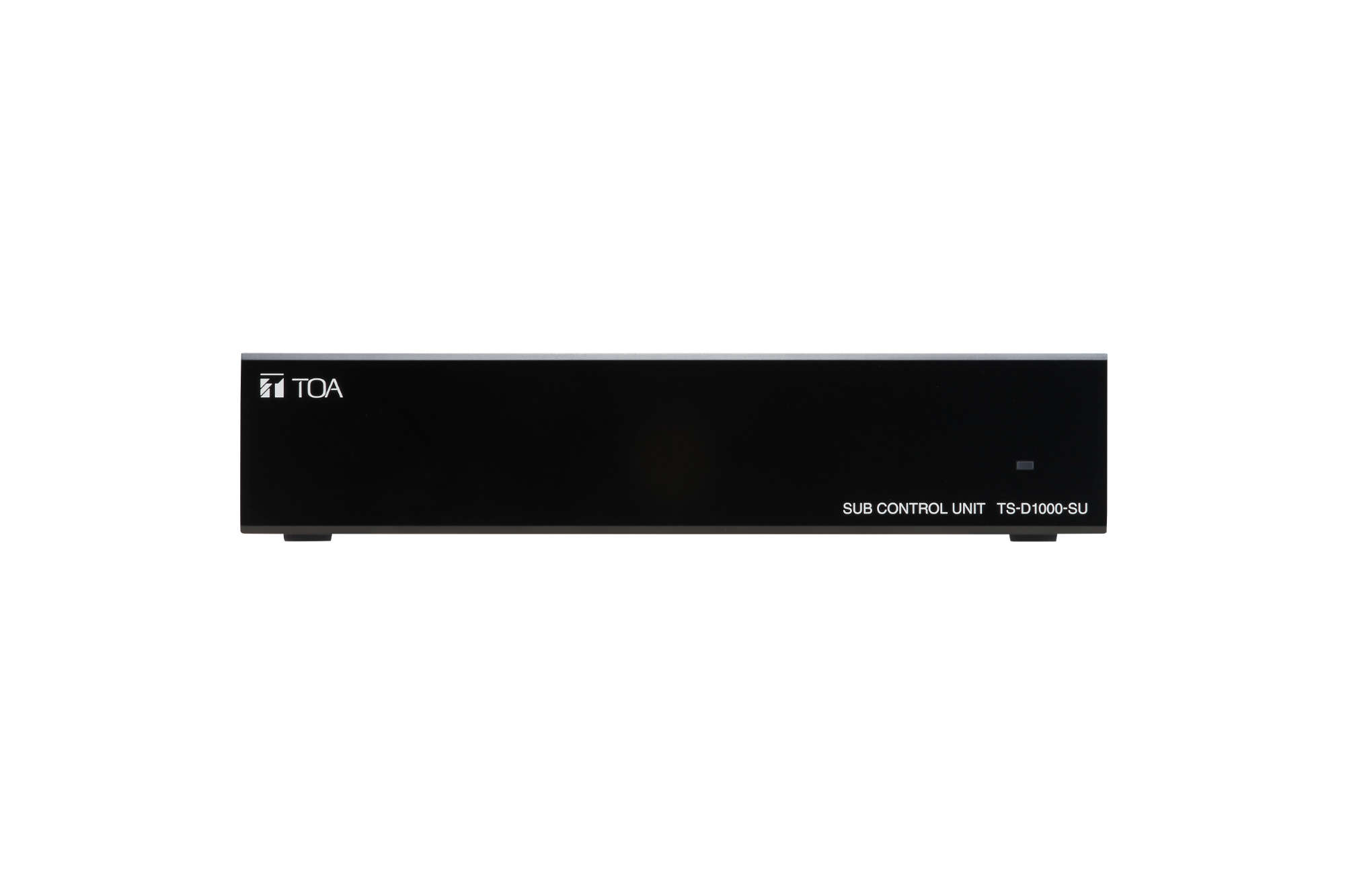

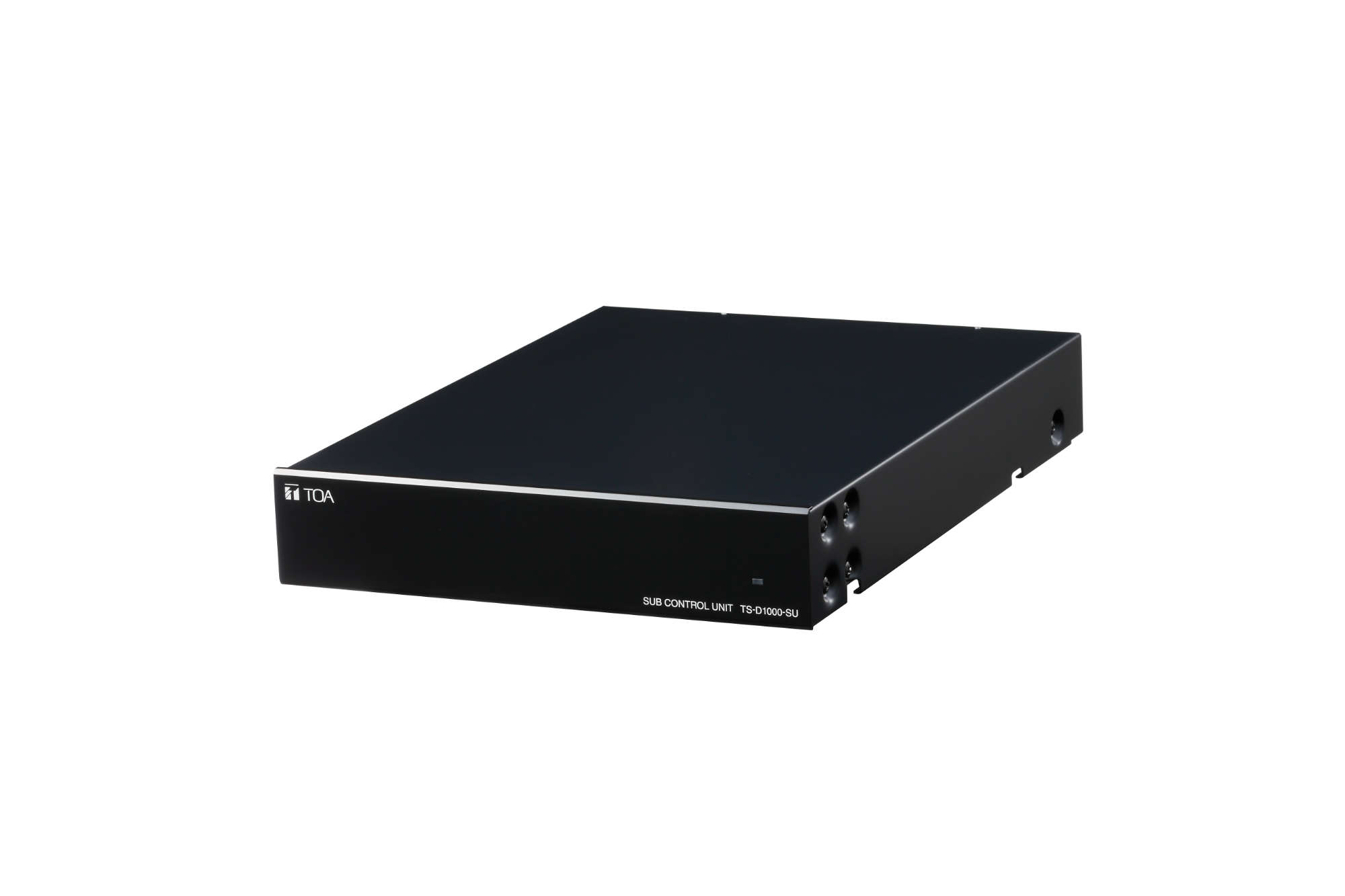

The TS-D1000-SU sub control unit is exclusively designed to be used with the digital conference system. It allows easy expansion of the conference system by connecting it to the TS-D1000-MU master control unit. Up to 48 chairman and delegate units can be connected per sub control unit by using easily-obtainable CAT5e STP LAN cables. Up to 5 sub control units can be connected to the master control unit using the supplied LAN cable. With the use of an optional rack mounting bracket, it can be mounted in an EIA standard equipment rack (1 unit size).
100 - 240 V AC, 50 / 60 Hz use of the supplied AC adapter
|Power / current consumption||
80 W or less
0 °C to +40 °C (32 °F to 104 °F)
90%RH or less (no condensation)
210 x 45.8 x 294.8 mm (W x H x D)
Aluminium, Steel plate, 30 % gloss, surface-treated, paint, black
AC adapter (Cord length: 1,8m DC cord, 2m detachable AC cord)
Connection cable (Cat5e STP 1m)
The sub control unit shall connect up to 48 additional conference units to the master unit by using CAT5e STP LAN cables. The power source shall be 100-240 V AC at 50/60 Hz and the units power consumption shall be 80 W at maximum. With the use of an optional rack mounting bracket, it shall be mounted in an EIA standard equipment rack (1-unit size). The sub control unit shall be the TOA model TS-D1000-SU, the conference units shall be the TOA models TS-D1000-CU/DU and the master unit shall be the TOA model TS-D1000-MU.
