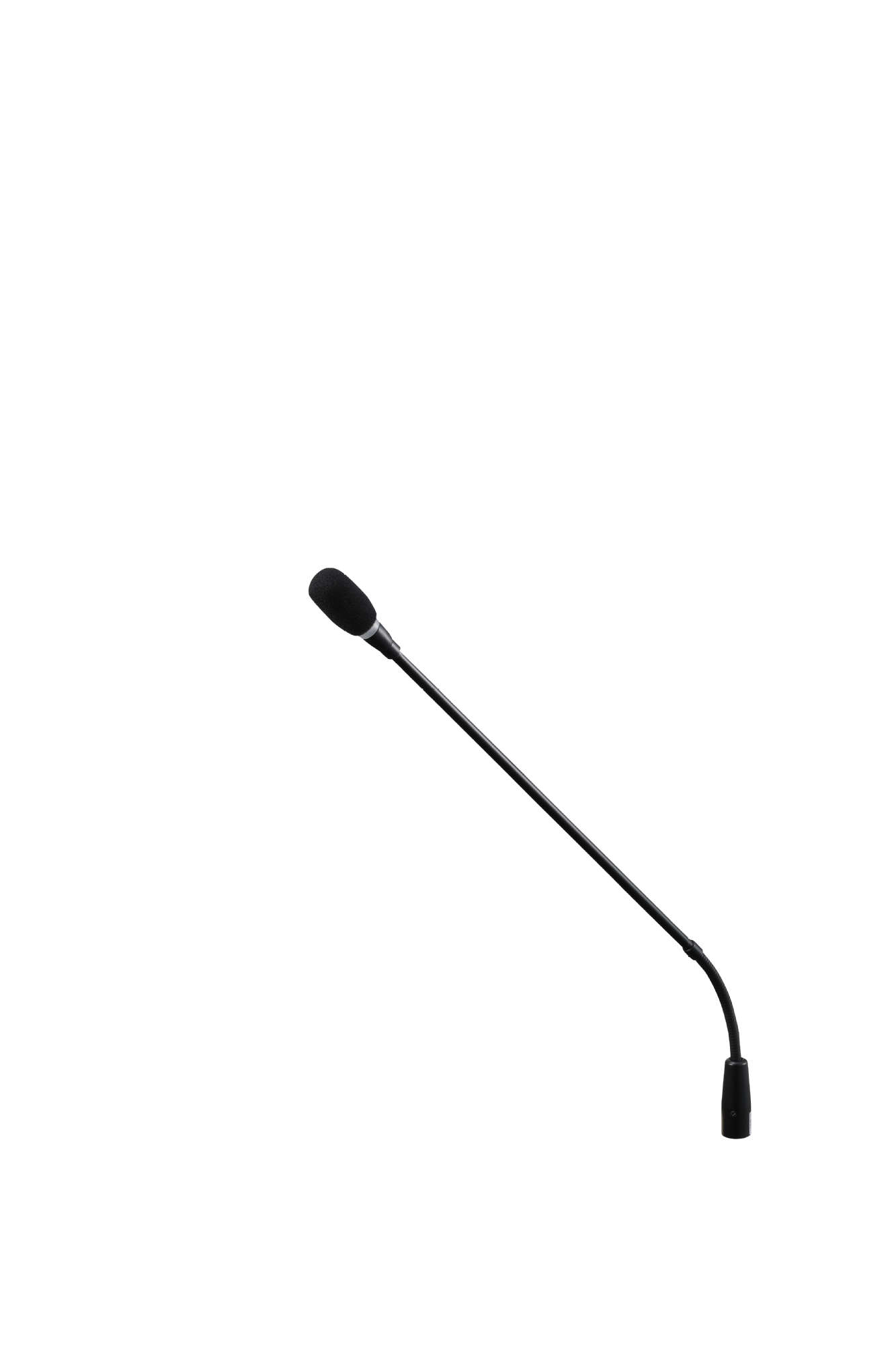

TS-D1000-M1
Standard Microphone

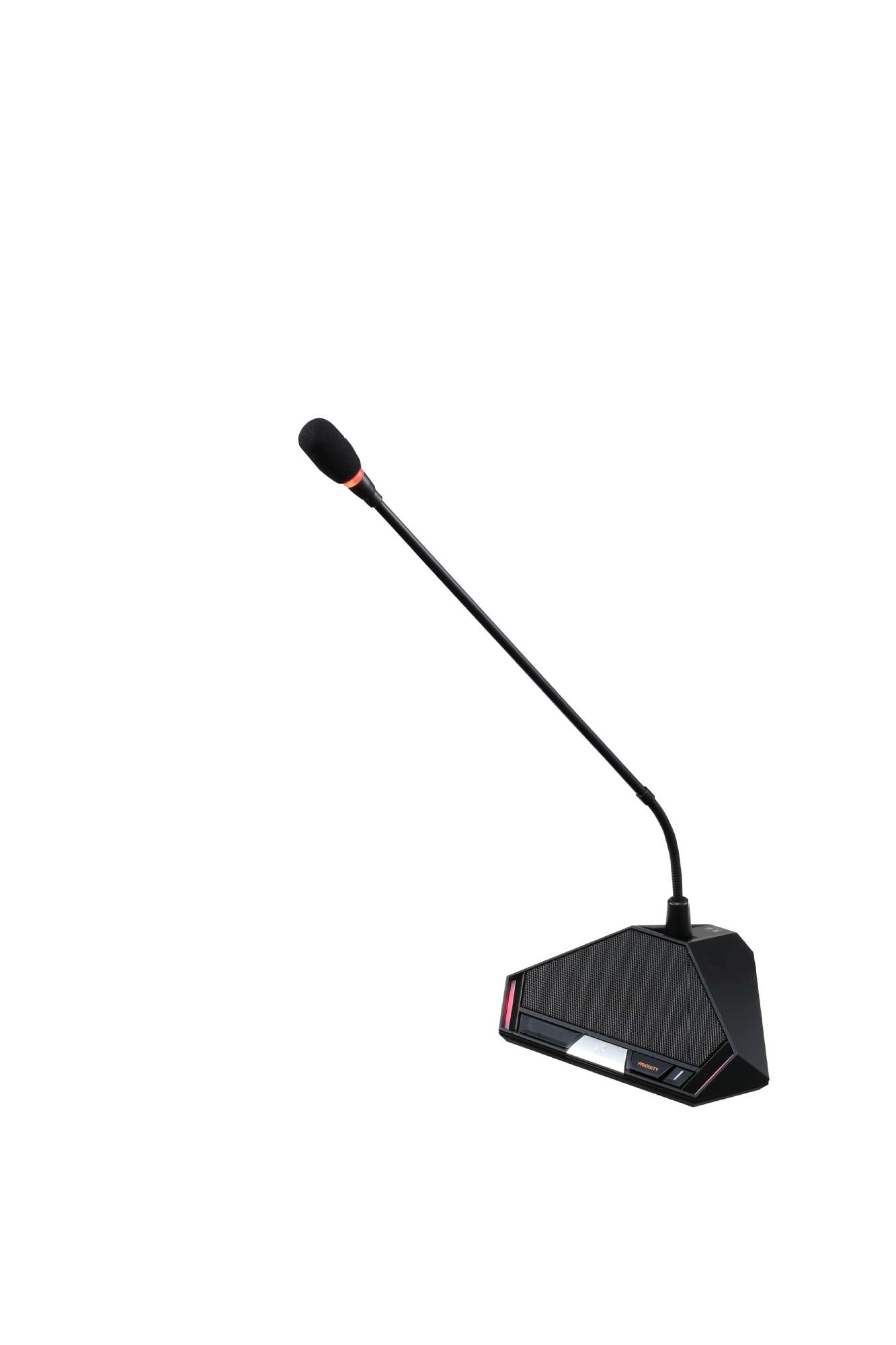

The TS-D1000-M1 microphone is a dedicated component of the digital conference system's chairman unit and delegate unit. Its microphone head is equipped with an illuminated display ring that allows the status of the units in use to be monitored at a glance.
- Gooseneck Microphone with one flexible section
- Unidirectional electret condenser microphone
- In use LED indicator
- XLR-4-32 connector
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| TS-D1000-M1 | TS-D1000-M2 | |
|---|---|---|
| Frequency response |
100 Hz - 13 kHz |
100 Hz - 13 kHz |
| Directivity |
Unidirectional |
Unidirectional |
| Dimensions |
25 x 518 mm (Ø x D) |
25 x 668 mm (Ø x D) |
| Finish |
ABS resin, Stainless steel, black |
ABS resin, Stainless steel, black |
| Operating temperature |
0 °C to +40 °C (32 °F to 104 °F) |
0 °C to +40 °C (32 °F to 104 °F) |
| Weight |
0.11 kg |
0.125 kg |
