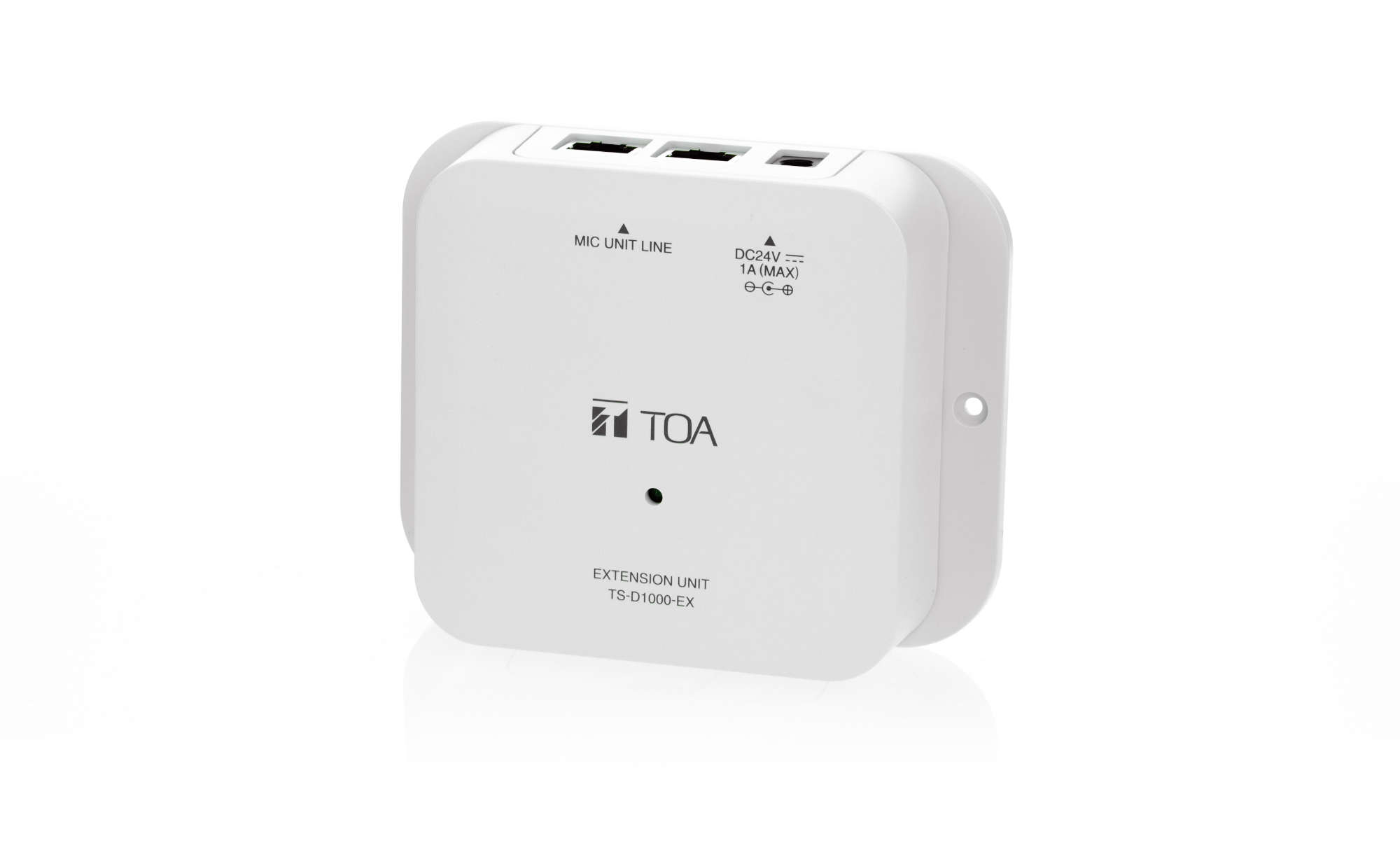

The TS-D1000-EX extension is the digital conference system's dedicated unit for extending the cable distance of the system to up to 50m (164,04 ft). One extension unit can be connected to each wiring line between master/sub control units and chairman/delegate units at the end of daisy chain using easily-obtainable CAT5e STP LAN cables.
100 - 240 V AC, 50 / 60 Hz use of the supplied AC adapter
|Power / current consumption||
25 W or less
0 °C to +40 °C (32 °F to 104 °F)
90%RH or less (no condensation)
124.3 x 35 x 100.3 mm (W x H x D)
ABS resin, signal white (RAL 9003 or equivalent)
AC adapter (Cord length: 1,8m DC cord, and 2m detachable AC cord)
The expansion unit shall extend a single line to up to 100m (328 ft). It shall be connected at the end of a daisy chain wiring line between the master/sub control unit and chairman/delegate units wit CAT5e STP LAN cables. It shall be powered with 100-240 V AC at 50/60 Hz with the supplied AC adapter and shall supply the chairman/delegate units with 24 V DC. The expansion unit shall be the TOA model TS-D1000-EX, the chairman/delegate units shall be the TOA models TS-D1000-CU/DU and the master unit shall be the TOA model TS-D1000-MU.
