H-2WP

Design Speakers

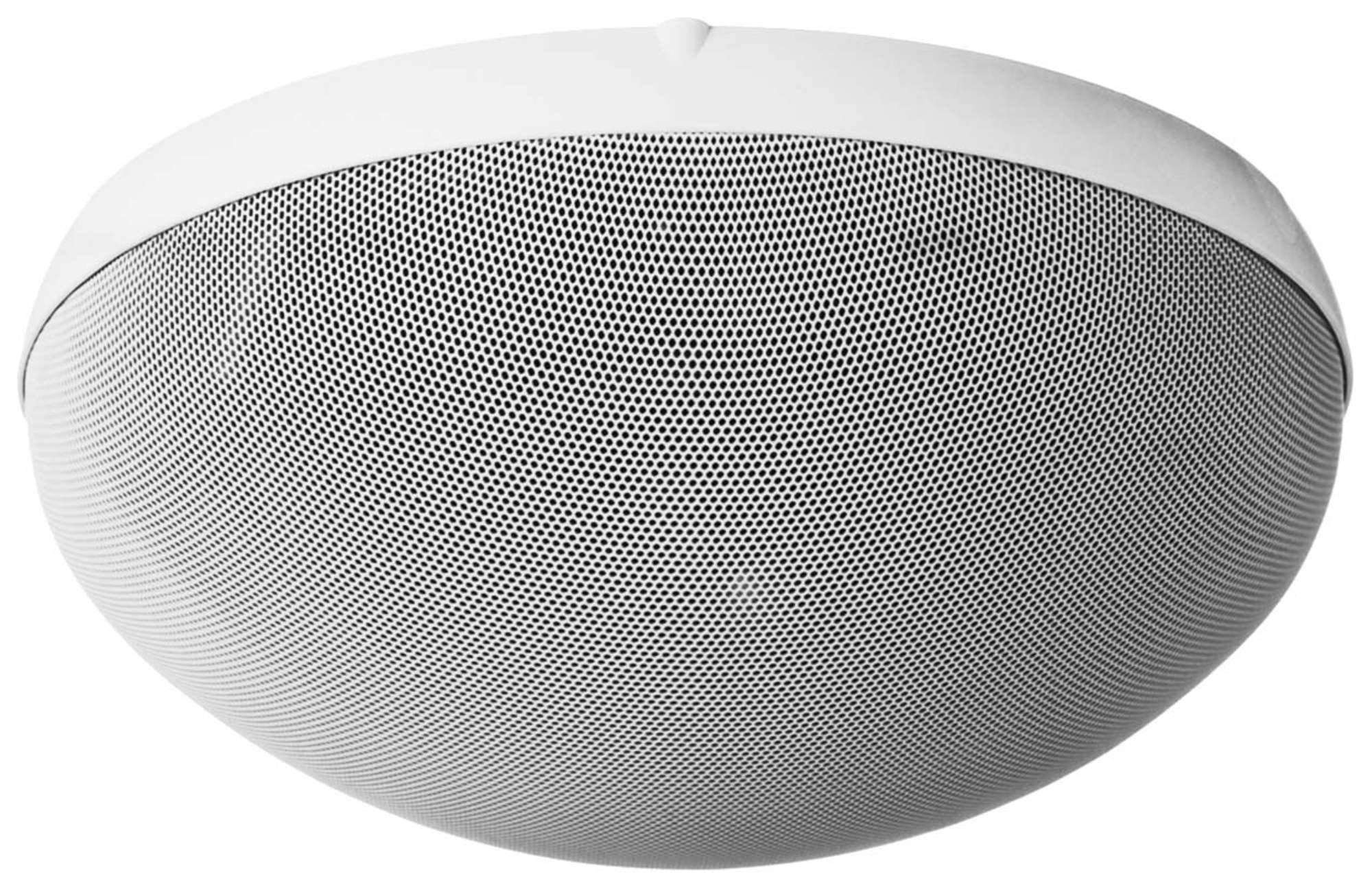

Designed for outdoor-use applications, the H-2WP is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface. (For the installation on walls, however, keep the speaker facing down within 45 degrees left and right each.)

  • 2-way design speaker
  • Ferrofluid-cooled balanced dome tweeters, neodymium magnet cone woofers
  • Narrow coverage area allows a controlled sound
  • Sound direction can be adjusted within 360°
  • High power handling of 120 W (continuous program)
  • Fire-rated ABS enclosure (UL 94-V0)
  • Weatherproof IP64 certified




  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
H-2WP H-1 EU H-2 EU
Frequency response

100 Hz - 20 kHz

120 Hz - 20 kHz

100 Hz - 20 kHz

Connection

Detachable screw terminal

Detachable screw terminal

Detachable screw terminal

Sensitivity (1 W, 1 m)

88 dB

85 dB

88 dB

Speaker component

Low: 10 cm cone-type, High: Balanced dome-type

8 x 5 cm cone woofer (neodymium magnet); 2.5 cm balanced

dome tweeter

Low: 10 cm cone-type, High: Balanced dome-type

Rated input

12 W

12 W

12 W

Tappings

12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V)

12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V)

12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V)

Rated impedance

4 Ω, 16 Ω, 70 V, 100 V

4 Ω, 16 Ω, 70 V, 100 V

4 Ω, 16 Ω, 70 V, 100 V

Power handling capacity

120 W (continuous program, 4 Ohm), 40 W (continuous pink noise, 4 Ohm)

90 W (continuous program, 4 Ohm), 30 W (continuous pink noise, 4 Ohm)

120 W (continuous program, 4 Ohm), 40 W (continuous pink noise, 4 Ohm)

Finish

Steel plate, ABS resin, paint, signal white (RAL 9003 or equivalent)

ABS resin, paint, signal white (RAL 9003 or equivalent)

Steel plate, ABS resin, paint, signal white (RAL 9003 or equivalent)

Weight

2.1 kg

1.5 kg

2.1 kg

Accessory (included)

Base frame x 1, electrical box mounting screw x 1 set

Adapter frame x 1, mounting csrew x 4, hole pattern paper x 1

Base frame x 1, electrical box mounting screw x 1 set
