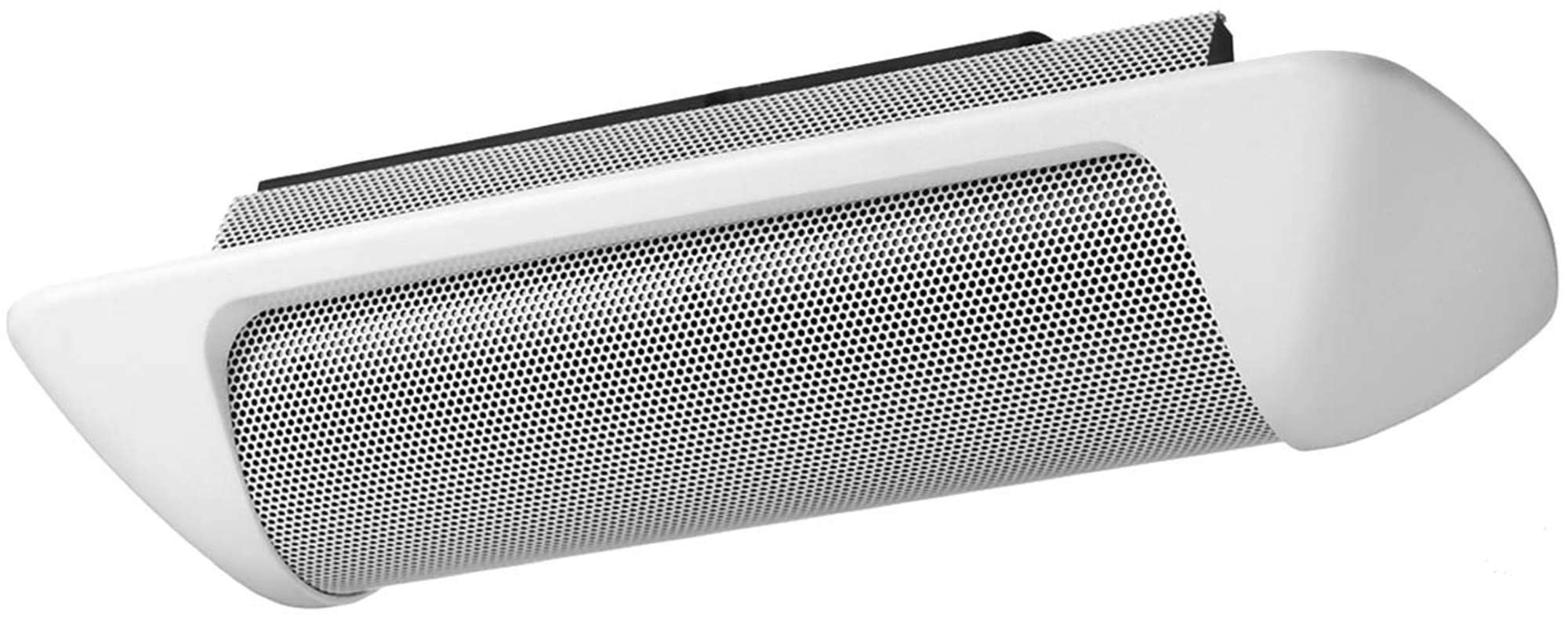

H-1 EU

Design Speakers

The H-1 is a cylinder-shaped, small flush-mount 2-way speaker that ensures quality sound reproduction. The mounting angle for its enclosure can be adjusted for up to 90 degrees.

  • Sleek and attractive 2-way design speaker
  • Ferrofl uid-cooled balanced dome tweeters and neodymium magnet cone woofers
  • Narrow coverage area allows a controlled sound
  • Sound direction can be adjusted within 90°
  • Built-in transformer allows both high and low impedance
  • High power handling
  • Easy installation in standard electrical gang boxes
  • Fire-rated ABS enclosure (UL 94-V0)




  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
H-1 EU H-2 EU H-2WP
Frequency response

120 Hz - 20 kHz

100 Hz - 20 kHz

100 Hz - 20 kHz

Connection

Detachable screw terminal

Detachable screw terminal

Detachable screw terminal

Sensitivity (1 W, 1 m)

85 dB

88 dB

88 dB

Speaker component

8 x 5 cm cone woofer (neodymium magnet); 2.5 cm balanced

dome tweeter

Low: 10 cm cone-type, High: Balanced dome-type

Low: 10 cm cone-type, High: Balanced dome-type

Rated input

12 W

12 W

12 W

Tappings

12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V)

12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V)

12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V)

Rated impedance

4 Ω, 16 Ω, 70 V, 100 V

4 Ω, 16 Ω, 70 V, 100 V

4 Ω, 16 Ω, 70 V, 100 V

Power handling capacity

90 W (continuous program, 4 Ohm), 30 W (continuous pink noise, 4 Ohm)

120 W (continuous program, 4 Ohm), 40 W (continuous pink noise, 4 Ohm)

120 W (continuous program, 4 Ohm), 40 W (continuous pink noise, 4 Ohm)

Finish

ABS resin, paint, signal white (RAL 9003 or equivalent)

Steel plate, ABS resin, paint, signal white (RAL 9003 or equivalent)

Steel plate, ABS resin, paint, signal white (RAL 9003 or equivalent)

Weight

1.5 kg

2.1 kg

2.1 kg

Accessory (included)

Adapter frame x 1, mounting csrew x 4, hole pattern paper x 1

Base frame x 1, electrical box mounting screw x 1 set

Base frame x 1, electrical box mounting screw x 1 set
