H-2
Design Speakers

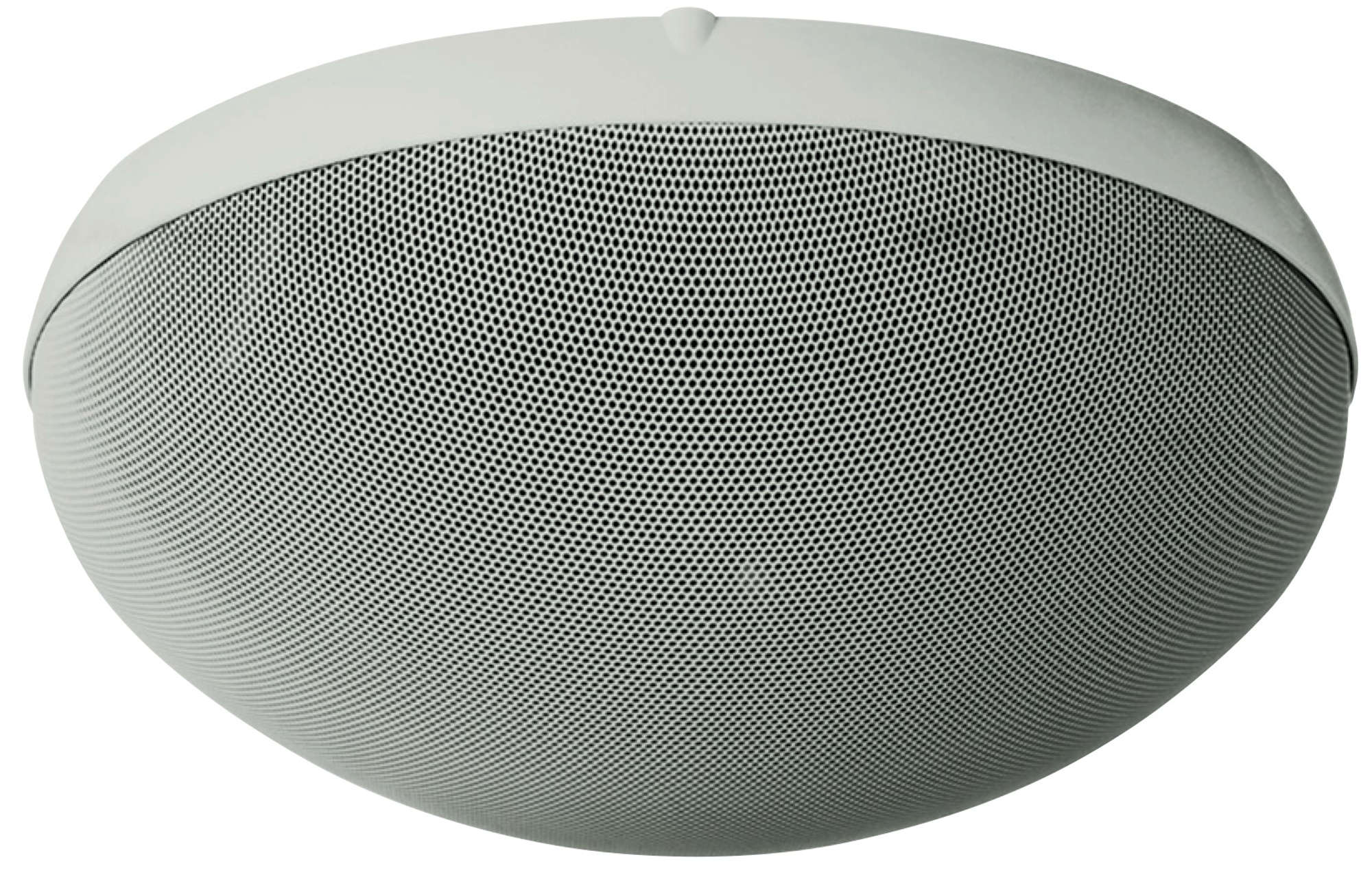

The H-2 is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface.
- 2-way design speaker
- Ferrofluid-cooled balanced dome tweeters, neodymium magnet cone woofers
- Narrow coverage area allows a controlled sound
- Sound direction can be adjusted within 360°
- High power handling of 120 W (continuous program)
- Fire-rated ABS enclosure (UL 94-V0)
- Specifications
- Application examples
- Tender text
- Downloads
Specifications
Specifications for product:
| H-2 | H-1 | H-1 | H-2WP | |
|---|---|---|---|---|
| Frequency response |
100 Hz - 20 kHz |
120 Hz - 20 kHz |
120 Hz - 20 kHz |
100 Hz - 20 kHz |
| Sensitivity (1 W, 1 m) |
88 dB |
85 dB |
85 dB |
88 dB |
| Rated input (100 V) |
12 W |
12 W |
12 W |
12 W |
| Tappings (100 V) |
12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V) |
100 V : 830 Ω (12 W) / 1.7 kΩ (6 W) / 3.3 kΩ (3 W) 70 V : 420 Ω (12 W) / 830 Ω (6 W) / 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) |
100 V : 830 Ω (12 W) / 1.7 kΩ (6 W) / 3.3 kΩ (3 W) 70 V : 420 Ω (12 W) / 830 Ω (6 W) / 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) |
12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V) |
| Rated input (low impedance) |
120 W (continuous program, 4 Ohm), 40 W (continuous pink noise, 4 Ohm) |
90 W (continuous program, 4 Ohm), 30 W (continuous pink noise, 4 Ohm) |
90 W (continuous program, 4 Ohm), 30 W (continuous pink noise, 4 Ohm) |
120 W (continuous program, 4 Ohm), 40 W (continuous pink noise, 4 Ohm) |
| Rated impedance (low impedance) |
4 Ω, 16 Ω |
4 Ω, 16 Ω |
4 Ω, 16 Ω |
4 Ω, 16 Ω |
| Speaker component |
Low: 10 cm cone-type, High: Balanced dome-type |
8 x 5 cm cone woofer (neodymium magnet); 2.5 cm balanced dome tweeter |
8 x 5 cm cone woofer (neodymium magnet); 2.5 cm balanced dome tweeter |
Low: 10 cm cone-type, High: Balanced dome-type |
| Dimensions |
268 x 111 mm (Ø x D) |
312 x 126 x 90 mm (W x H x D) |
312 x 126 x 90 mm (W x H x D) |
268 x 111 mm (Ø x D) |
| Finish |
Steel plate, ABS resin, signal white (RAL 9003 or equivalent) |
ABS resin, signal white (RAL 9003 or equivalent) |
ABS resin, signal white (RAL 9003 or equivalent) |
Steel plate, ABS resin, signal white (RAL 9003 or equivalent) |
| Weight |
2.1 kg |
1.5 kg |
1.5 kg |
2.1 kg |
