IP-A1 Series

Expand your VMS/SIP System with audio solutions

Add a strong voice to your system

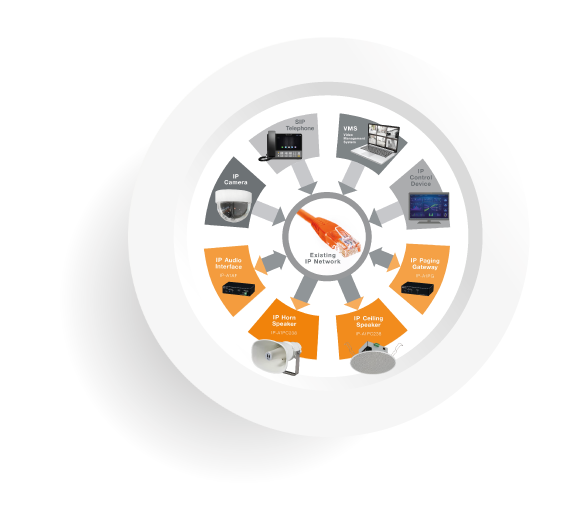

Expand your IP Camera, VMS, SIP-based Communication or Control System by IP-based audio products

Plug & Start: IP-based audio products, easy to integrate in existing IP networks - for security and comfortable audio communication
TOA's extensive audio expertise can now be integrated into your IP network solution. Combine the possibilities and benefits of IP security systems and audio devices to help protect people and property. Turn your SIP telephone system into a network paging solution. Or provide your BGM installation with flexible and feature-rich network audio equipment. The applications are manifold.
A single standard network cable provides both power and connectivity to your network. Build your stand-alone solution without a server or primary system using peer-to-peer communication or extend your network system based on open protocols. The TOA IP-A1 Series fits right into your IP camera setup, SIP telephone system, VMS or IP control solution.



Application examples


IP Camera Systems
Surveillance and Responsiveness


An IP camera is a digital video camera that receives control data and sends image data via an IP network, commonly used for surveillance. Indoor or outdoor applications are possible.

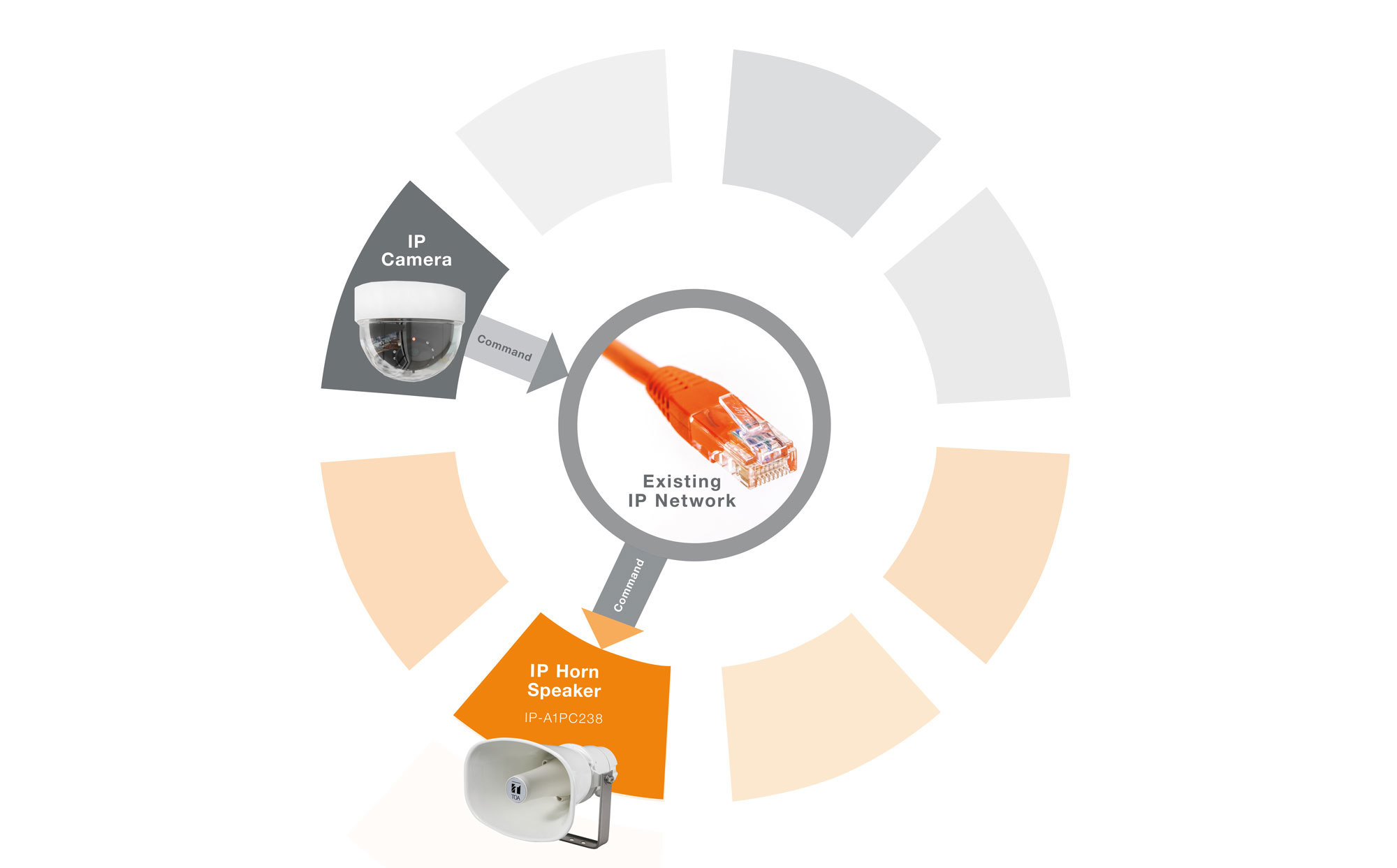

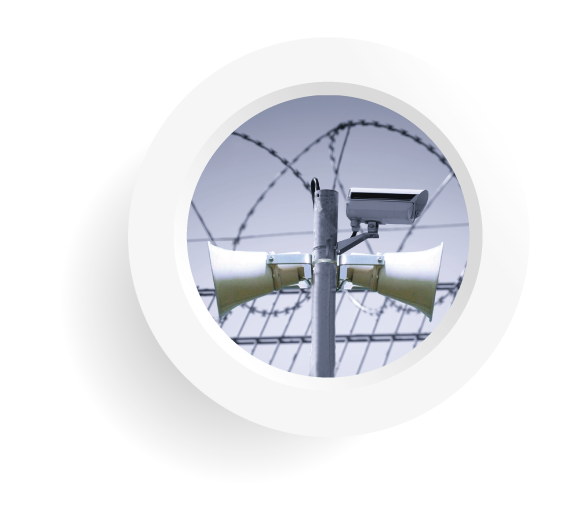

Give your camera a strong voice


Add a robust and powerful IP Speaker to make crystal-clear announcement directly on site :

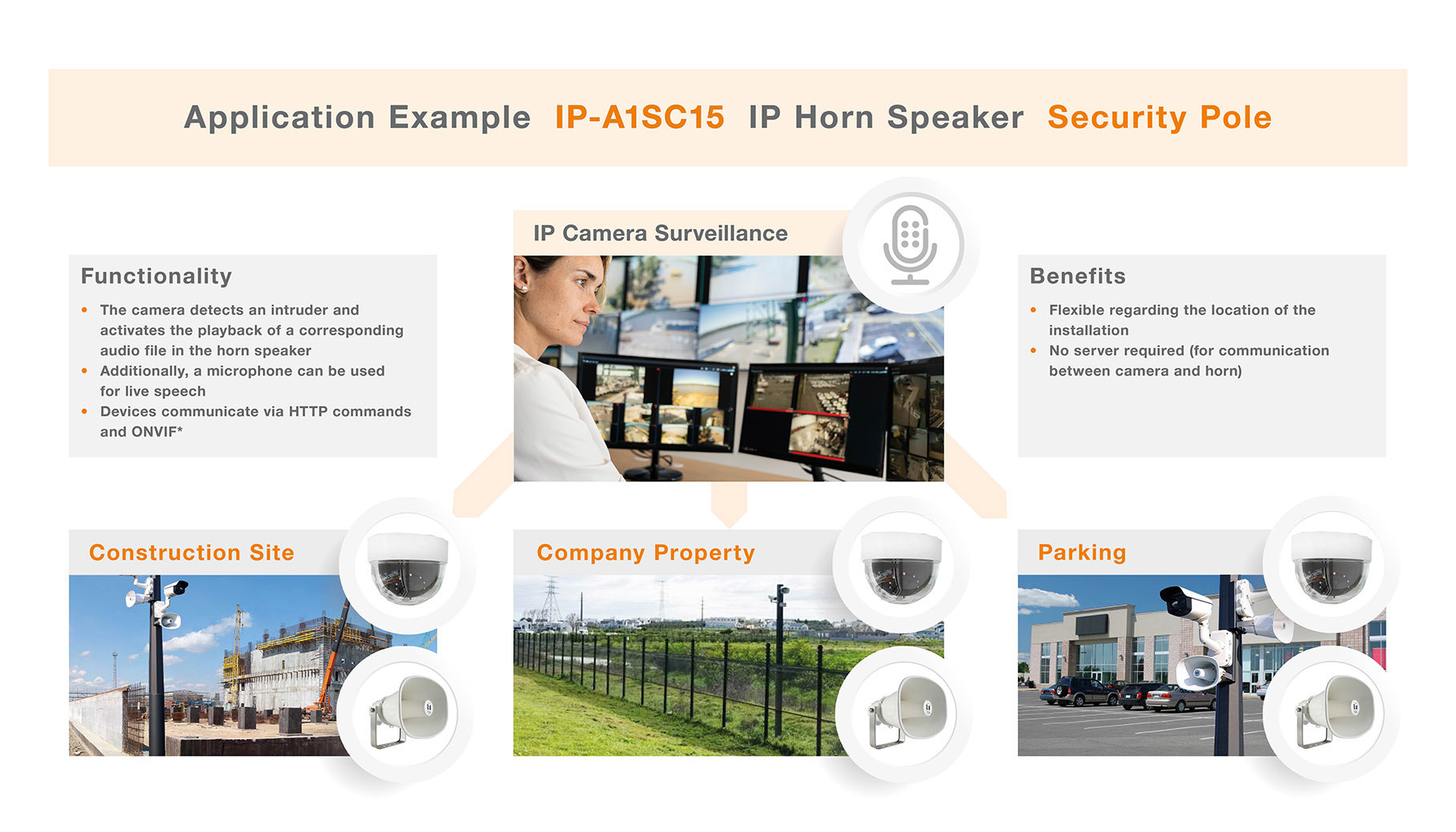

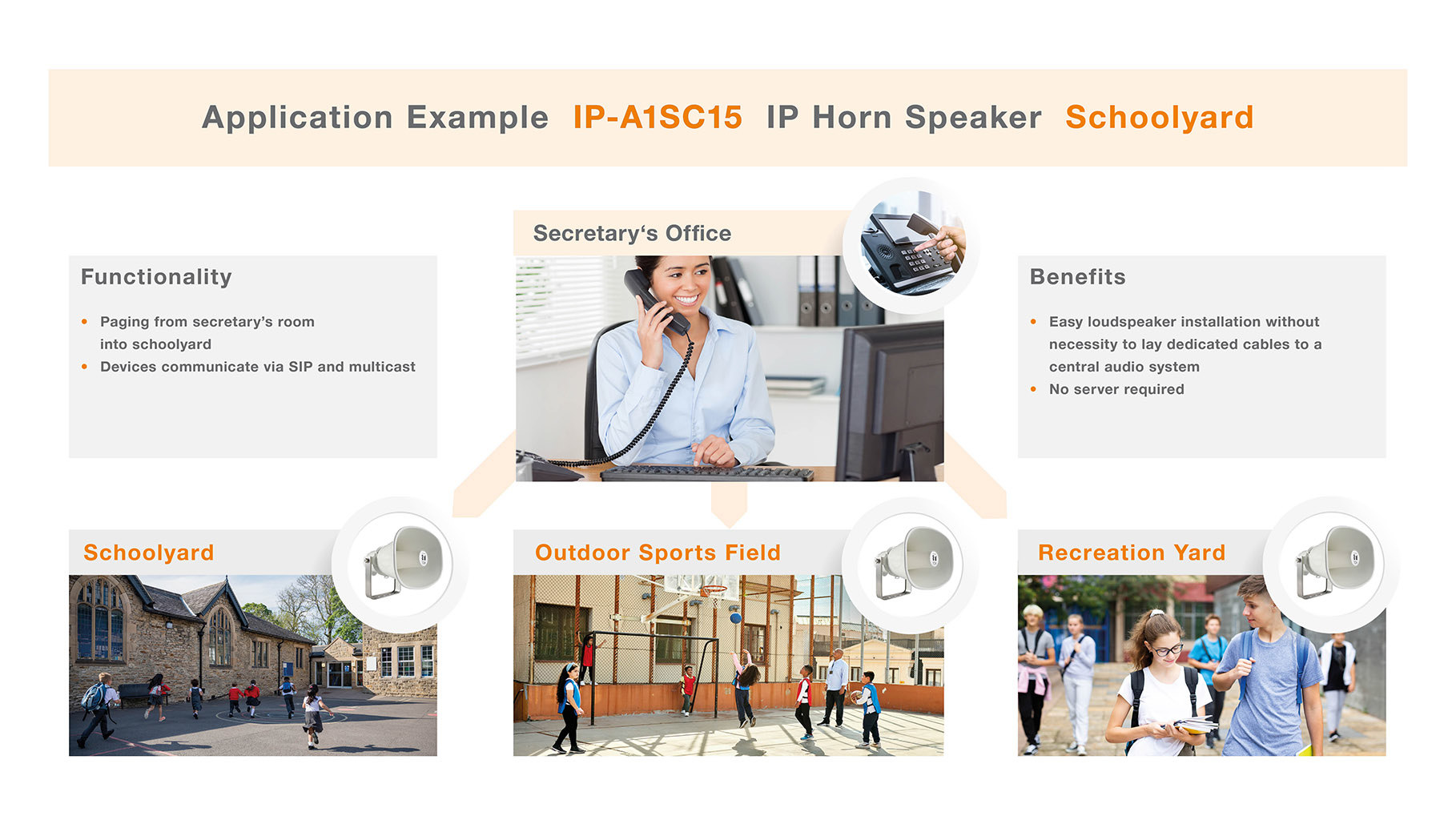

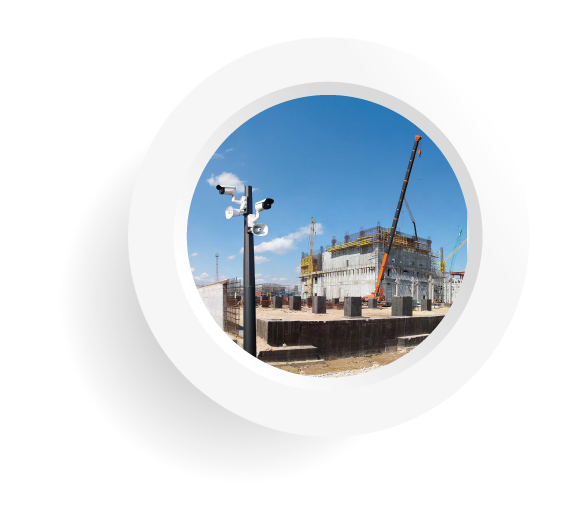

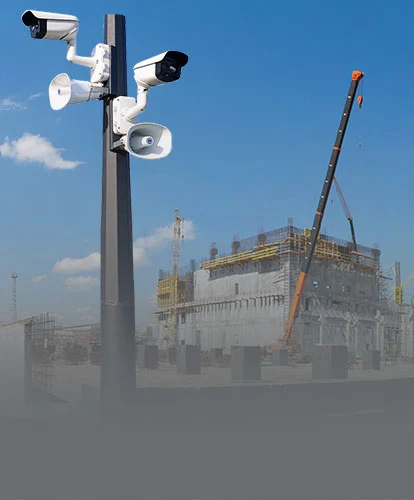

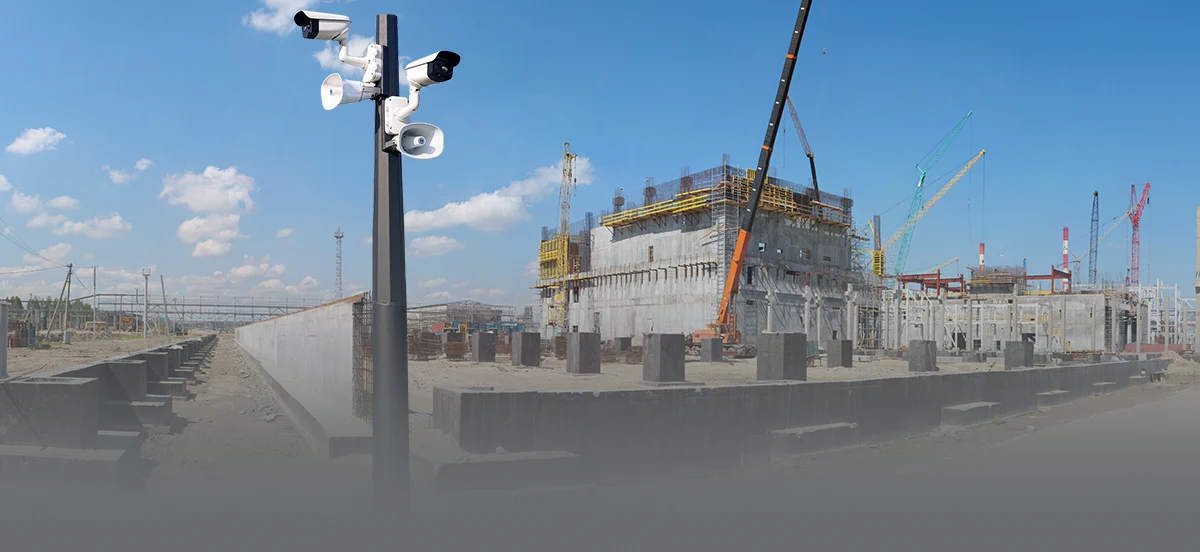

The IP-A1SC15 weatherproof IP Horn Speaker is perfectly suited for installations at construction sites or in manufacturing facilities.


SIP Communication Systems
Accessibility and Reachability


SIP, which is short for Session Initiation Protocol, has quickly become the new standard for telephone systems in various applications. Analogue systems are no longer topic of discussion, and SIP takes over every imaginable installation with need or telephones. A SIP phone can perform simple calls and often also announcements to groups of other devices.

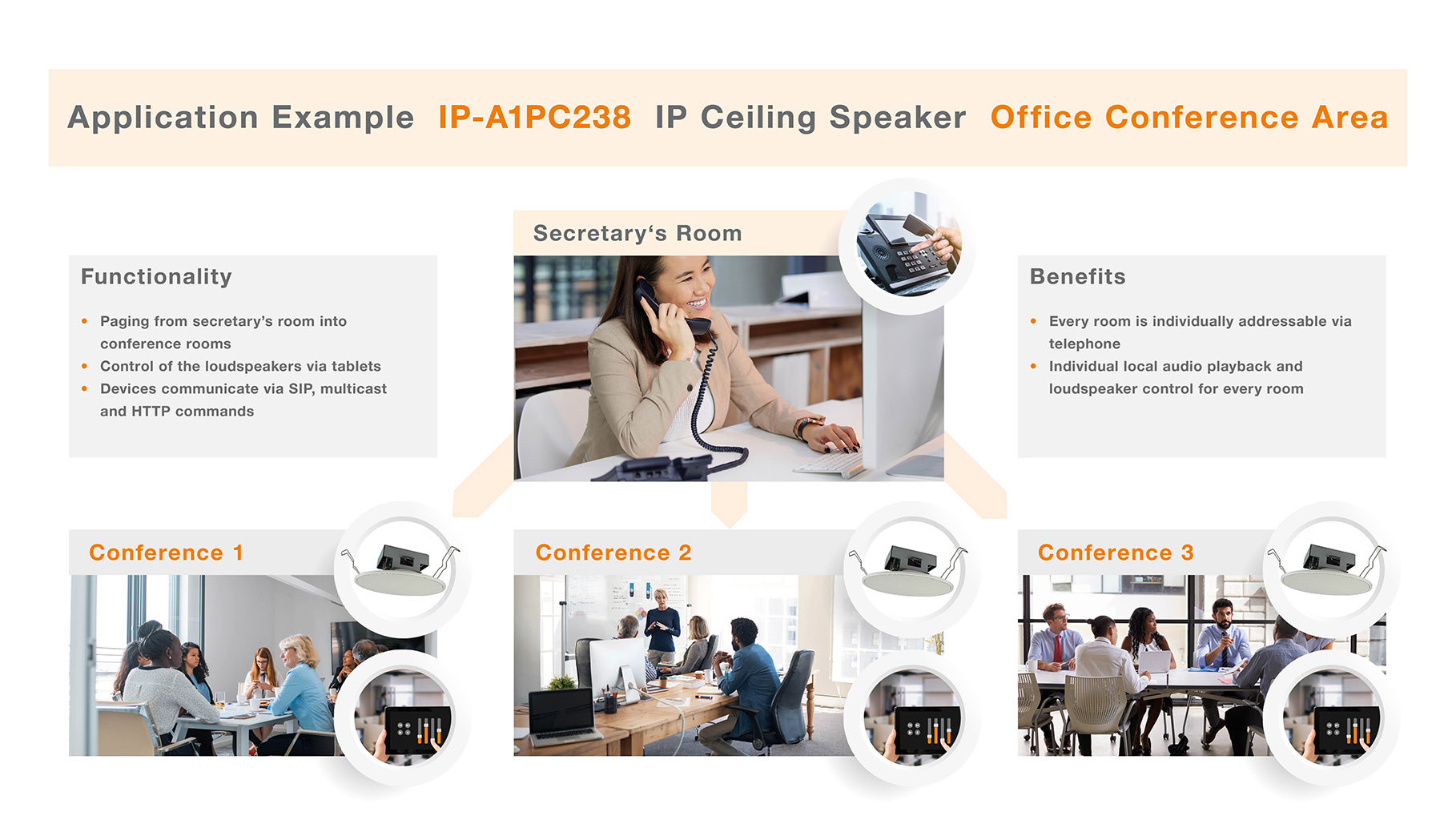

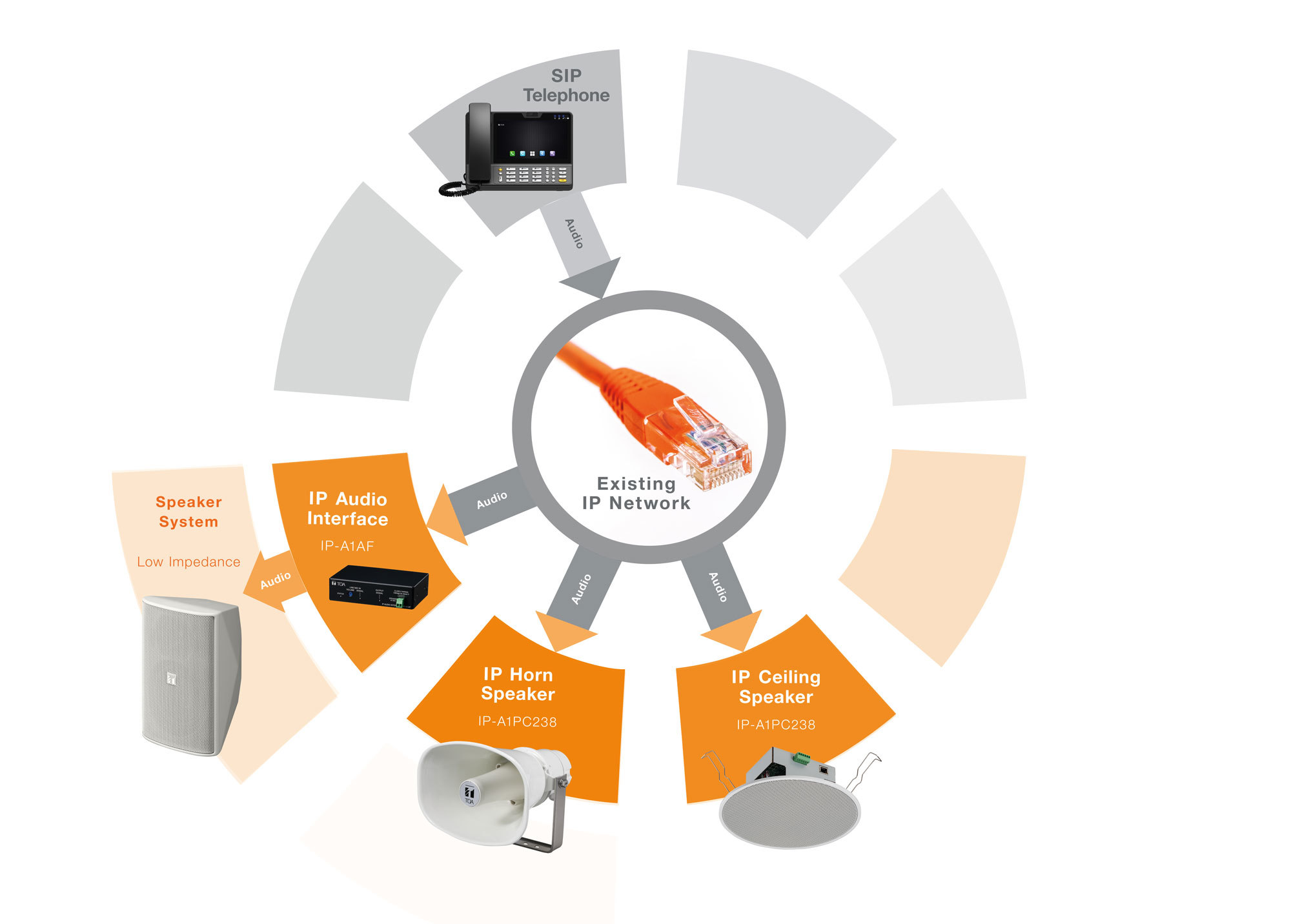

Use your SIP phone to page into dedicated zones


Turn your SIP communication system into an intelligible paging system:

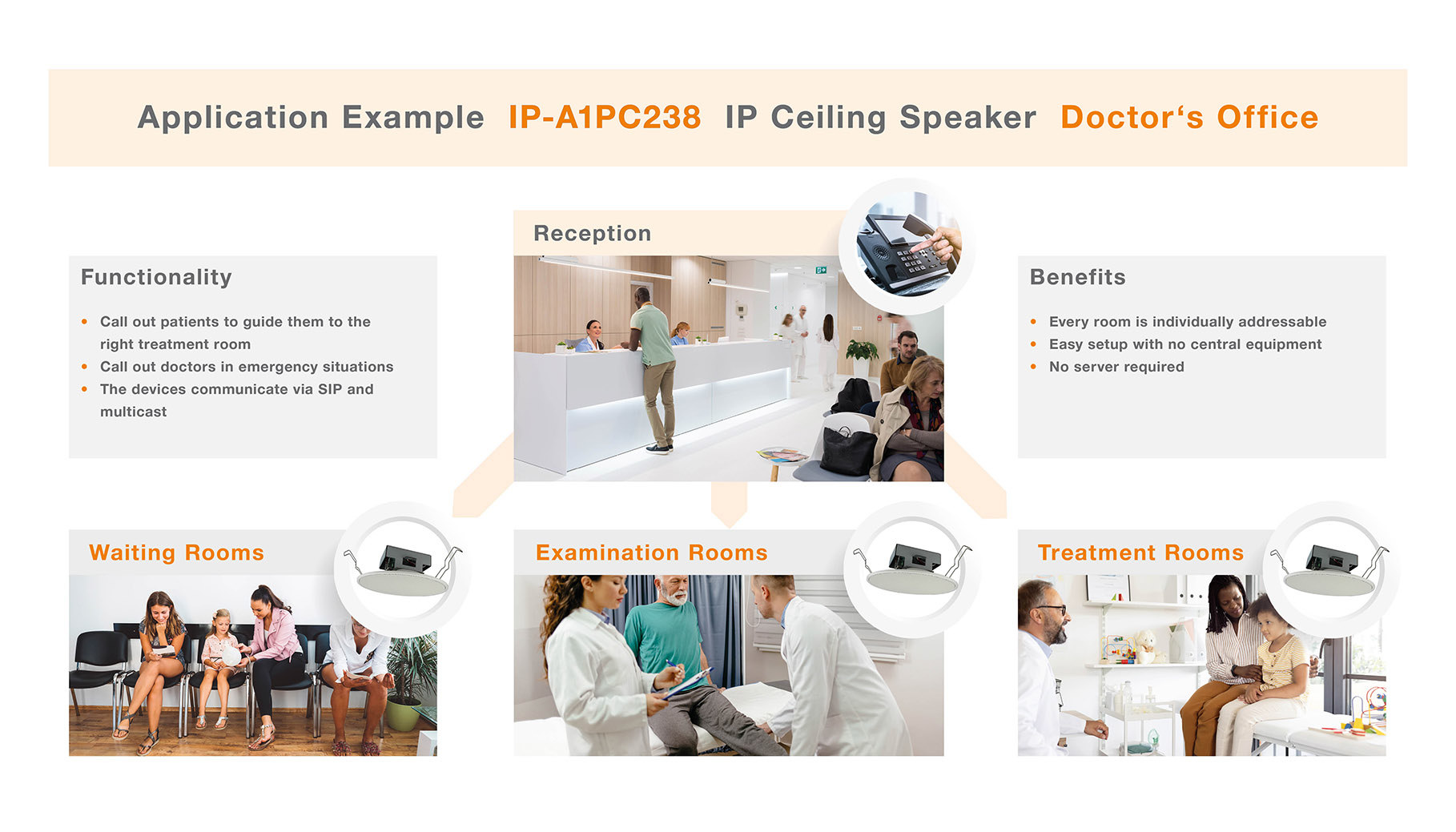

The IP-A1PC238 intelligible IP ceiling speaker is ideal for indoor areas as lobbies, meeting rooms, or corridors.

The IP-A1SC15 weatherproof IP horn speaker can be used in outdoor zones as parking lots or courtyards.

The IP-A1AF IP audio interface can supply a low impedance speaker and therefore integrate a wide variety of loudspeakers like the F-1000.




Video Management Systems (VMS)
Security and Reliability


A video management system (VMS) orchestrates a surveillance workflow by integrating with cameras, recording systems and analytics software, utilizing a wide variety of AI technology. The software and the devices communicate using open ONVIF standard.

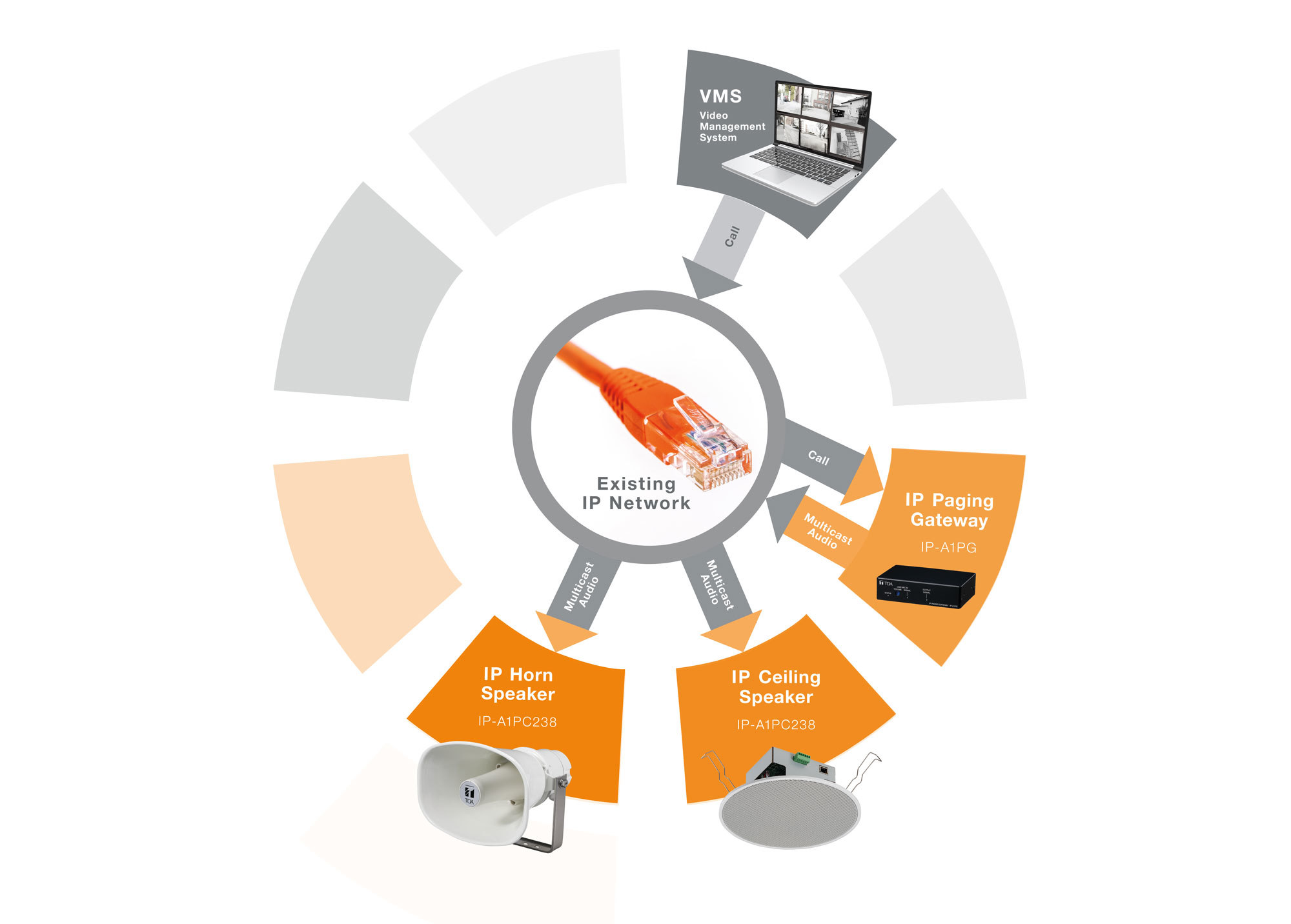

Expand your VMS System by a clear and strong voice

Respond immediately to an alert or emergency with a live speech directly on site.

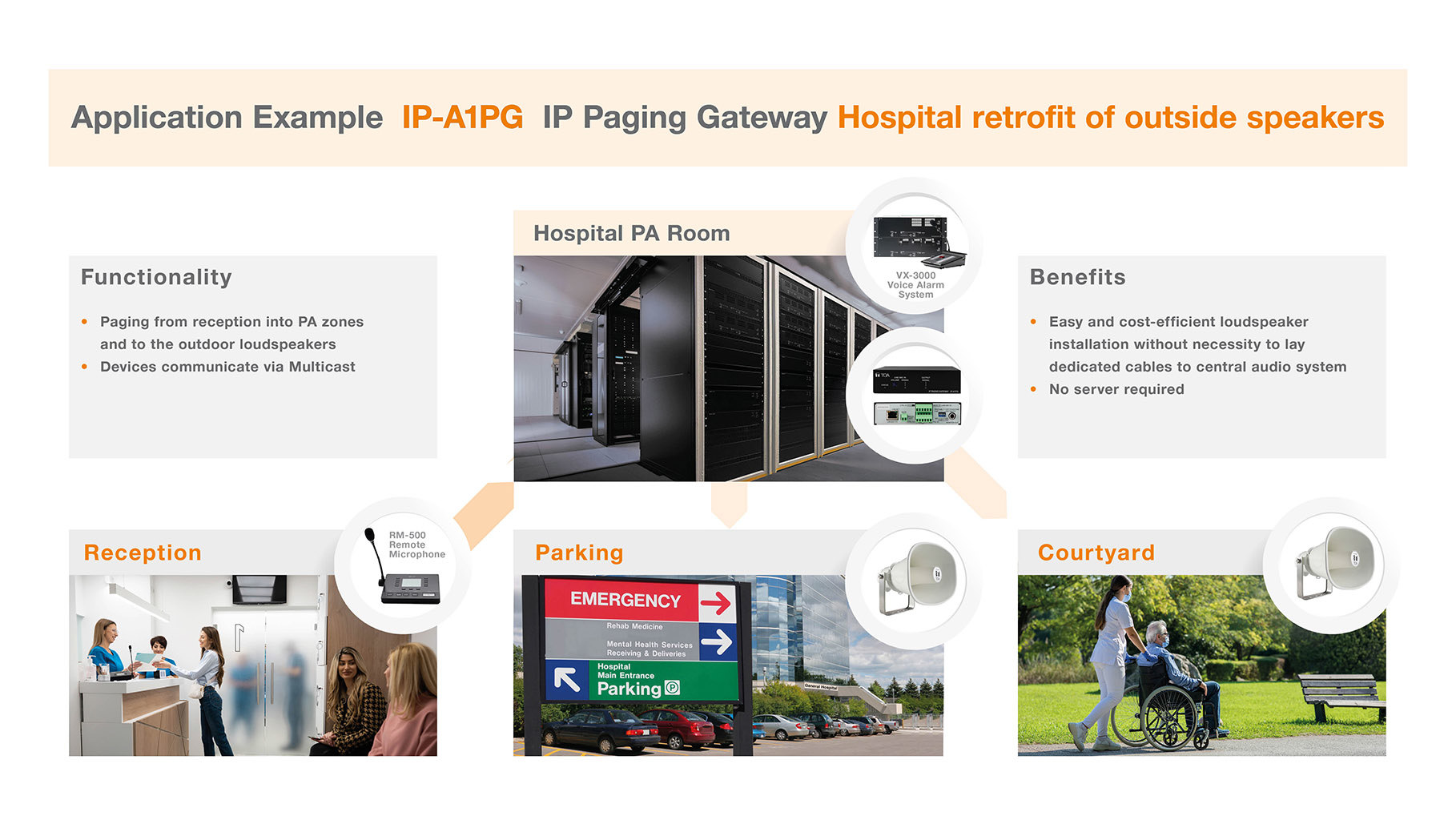

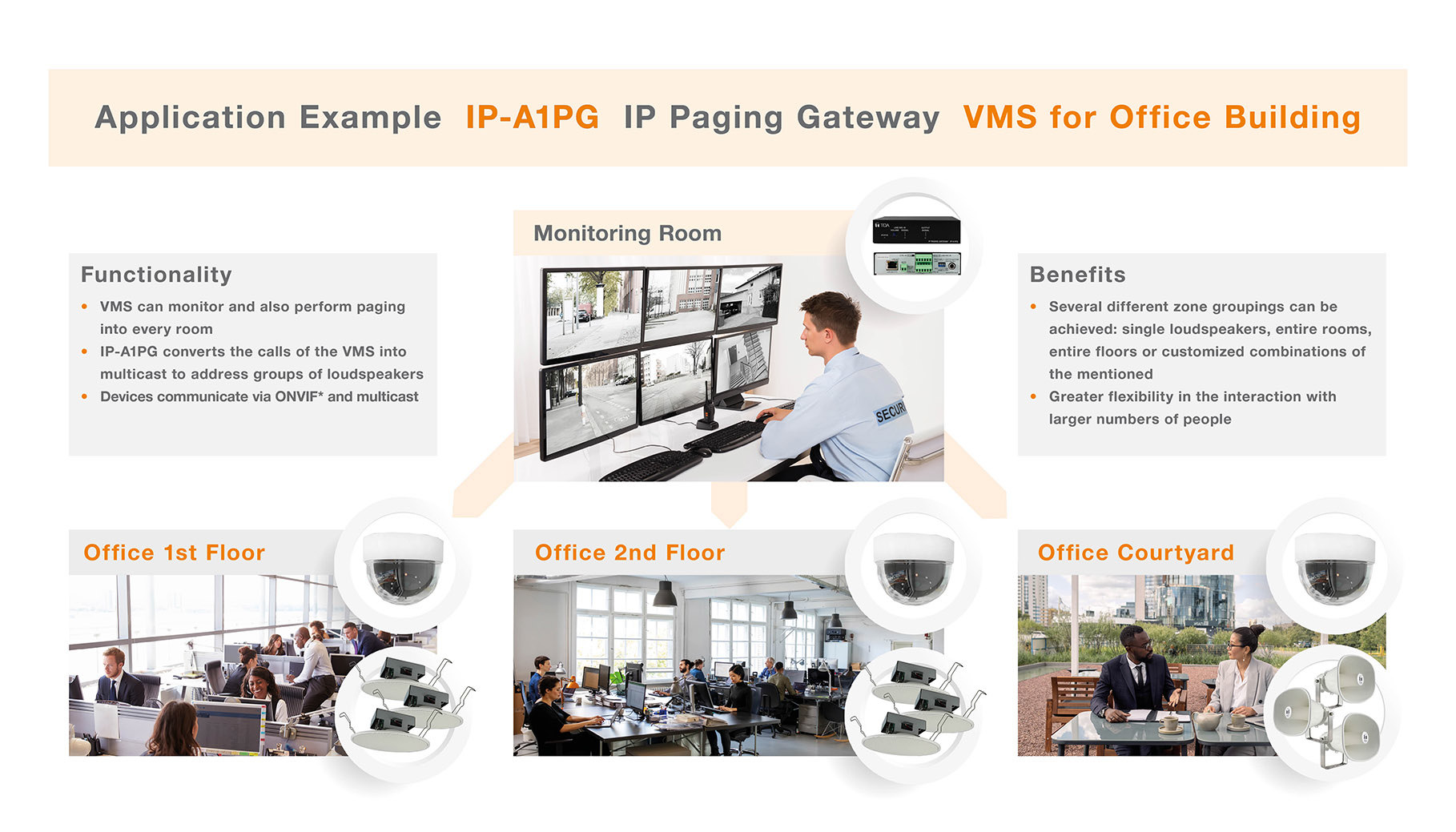

The IP-A1PG IP paging gateway converts simple calls into multicast audio streams to address any desired number of speakers.
The IP-A1SC15 and IP-A1PC238 are ONVIF-compatible IP speakers easily integratable into your VMS.

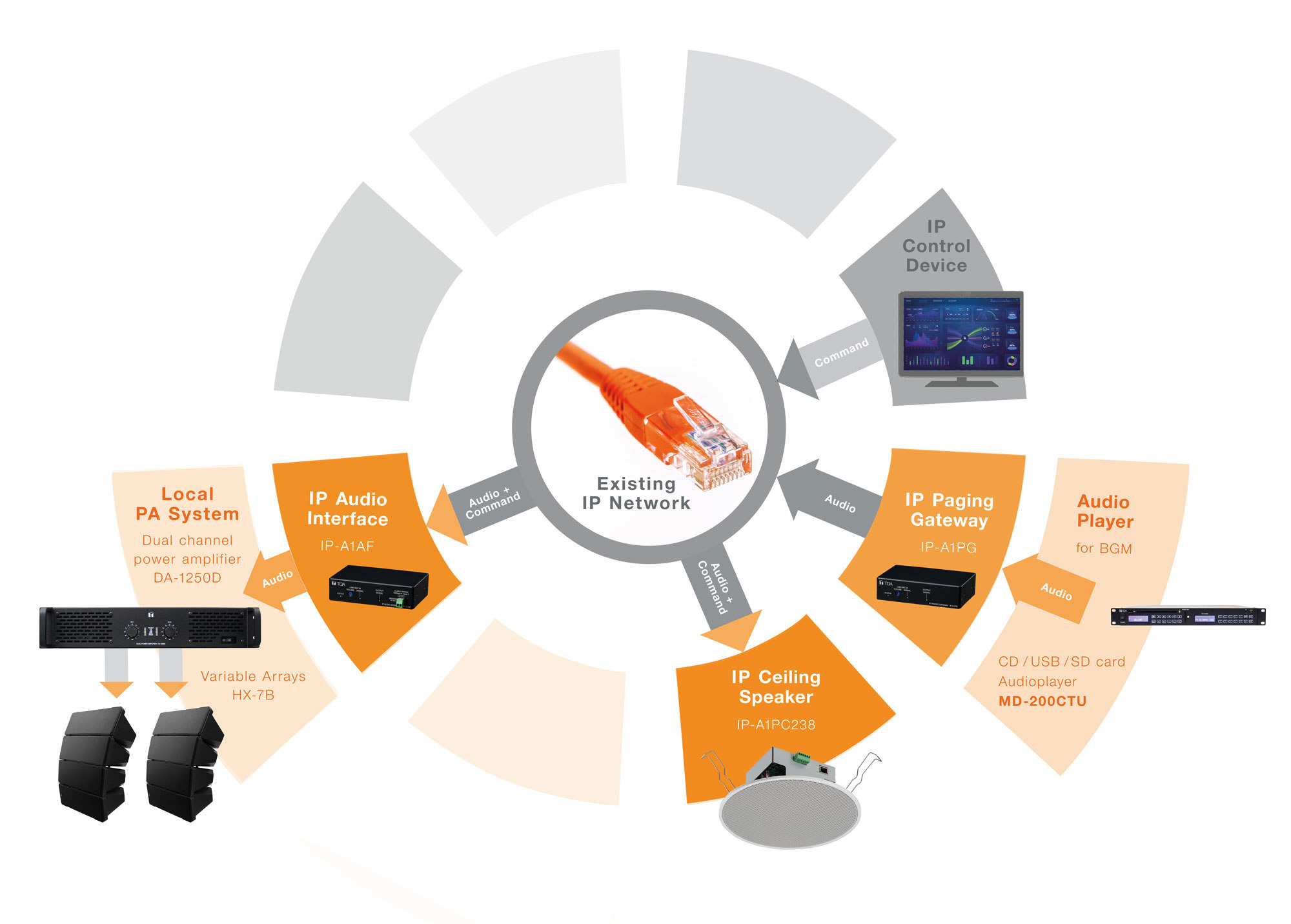

IP Control Devices
Comfort and Flexibility


There can be a central IP control system or simple control devices like wall panels and other remote controllers. The user needs easy access to the controlling functions of the audio system.

Control comfortably the IP loudspeakers over the network

You can change the volume of each IP speaker individually, start and stop music playback or activate internal messages via HTTP command.

The IP-A1PG IP paging gateway can distribute analogue audio to various devices in the network simultaneously.

The IP-A1PC238 intelligible IP ceiling speaker is ideal for indoor areas as sales areas, storage rooms or corridors.

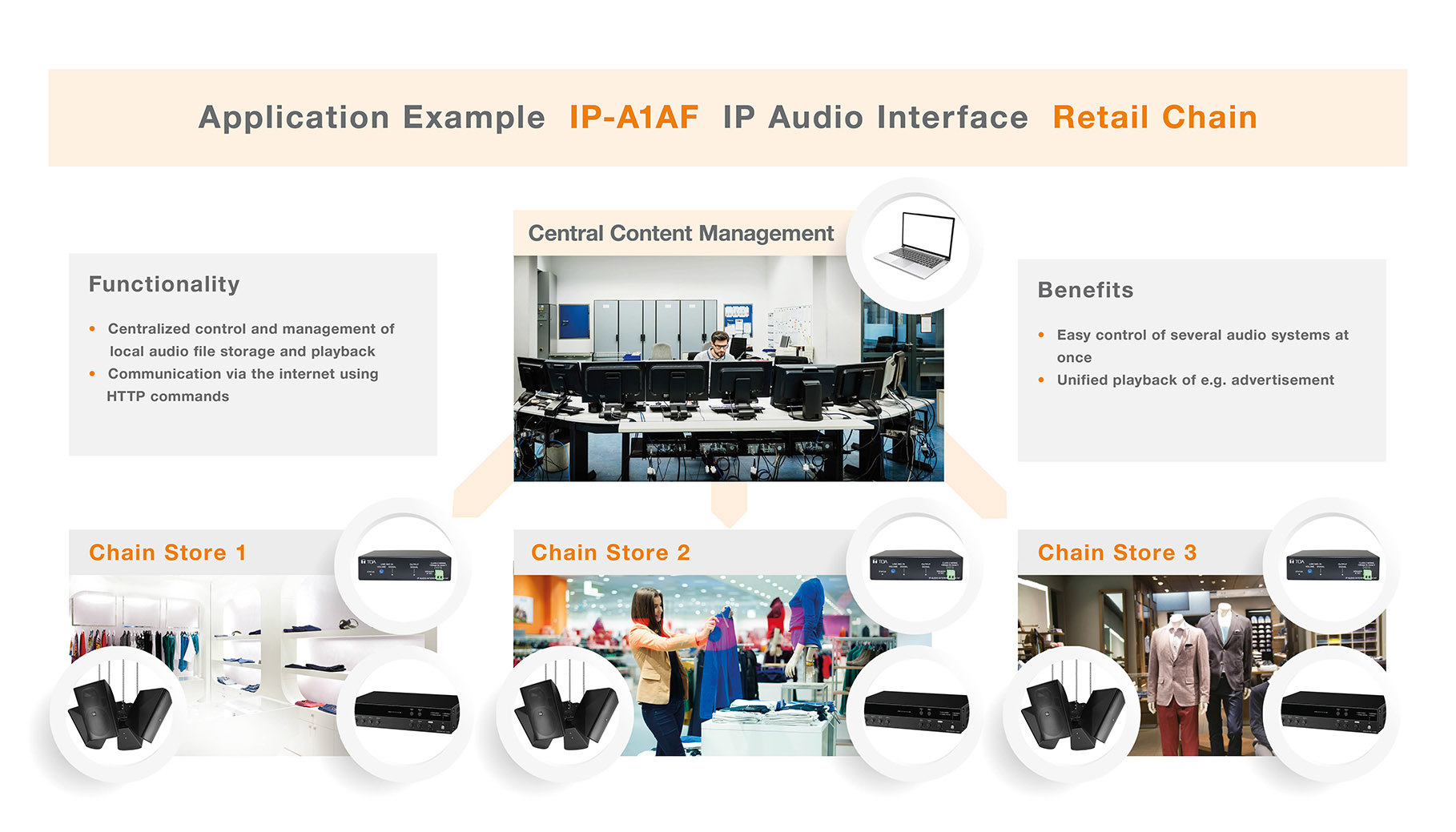

The IP-A1AF IP audio interface can integrate a local PA system into your IP solution.

The products of the IP-A1 Series

Plug & Receive :
The IP-A1AF IP Audio Interface can integrate analogue receiving devices into your network as e.g., conventional 8 Ohm speakers or local PA systems.


Plug & Sound :

A single standard network cable provides both power and connectivity. The speakers broadcast crystal clear pre-recorded voice messages or live speech announcements, manually or automatically triggered by SIP phone systems, IP camera systems, image sensing or motion detection video systems, e.g., to respond immediately to an emergency.

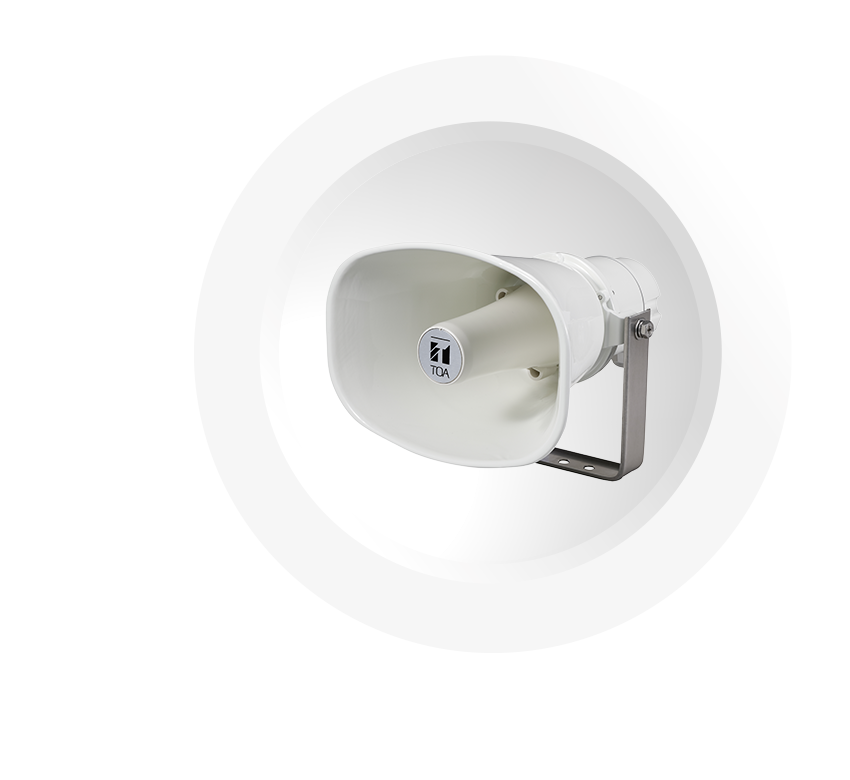

The IP-A1SC15 IP Horn Speaker comes with a built-in 15 W power amplifier and high sound pressure levels. Its weatherproof enclosure is perfectly suited for outdoor applications.

The IP-A1PC238 IP Ceiling Speaker comes with a built-in 8 W power amplifier and spring clamps for easy and quick installation. Its light weight and universal applicable diameter enable a variety of indoor applications.


Plug & Transmit :

The IP-A1PG IP Paging Gateway converts simple SIP / ONVIF calls into multicast streams and enables paging into larger zones. Furthermore, it provides a multicast-ready audio input and the possibility to send sets of HTTP commands into the network.

ADVANTAGES

Let your VMS, IP Camera or SIP system have the voice

Based on open standards, TOA's IP-based audio products plug right into standard IP networks and can be easily integrated into your Video Management System (VMS) or SIP-based Communication System using open protocols. Automatically or manually triggered by SIP phone systems, IP camera systems, VMS, image sensing or motion detection video surveillance systems, the IP-A1 Series products can be integrated into security or communication systems via ONVIF / SIP / Multicast.

Complete control over your audio broadcast

The IP-A1 Series products can be controlled, triggered and customized individually. Integrated into your system, the IP audio products add a strong voice wherever you need one. Control your broadcast using the included timer function, control inputs, individual or global muting to offer convenient handling in everyday life. For each different audio source, the output level can be harmonised to enable a uniform output sound level ensuring clear and listener-friendly voice announcements with high intelligibility.

Flexible group paging

The IP-A1SC15 Horn Speaker, the IP-A1PC238 Ceiling speaker and the IP-A1AF Audio Interface can be addressed via multicast, enabling audio paging into groups of IP devices simultaneously.
The IP-A1PG converts SIP or ONVIF calls into multicast streaming for delivering the group paging function even to systems that are not multicast-ready.

Easy to customize over API

For customized solutions, you can use the provided API to control the IP audio devices individually. By using HTTP commands, the IP-A1 Series products can be integrated into your own control program in a very simple way. Adapt the individual volume to the environmental noise level and optimize it to time, degree of emergency or distance. The IP speakers offer fine volume control to increase or decrease sound volume and set different volume levels. Furthermore, EV message activation, stop, upload, or download is easy to realize.


Cost effective and fast reaction

In an alert or emergency situation, it can be fast and effective to use audio to respond with voice announcements instead of sending a security guard. When combined with e.g. video surveillance - or motion detection systems, it allows immediate reaction with live speech announcements or pre-recorded messages. Each device can store up to 20 audio files on its internal storage.

All-in-one stand-alone network audio technology

The IP-A1SC15 Horn Speaker and the IP-A1PC238 Ceiling Speaker are complete stand-alone advanced audio systems in a single unit. The IP Horn Speaker IP-A1SC15 has an integrated and PoE+-powered 15 W amplifier to broadcast excellent sound quality at very high sound pressure level. The IP Ceiling Speaker comes with 8 W rated power, a built-in and PoE-powered amplifier as well and an appealing design. Both have a built-in audio source for 20 pre-recorded messages.


Simple to install wherever you need a strong voice

Plug and broadcast: A single standard network cable provides both power and connectivity with your network. The IP Horn Speaker IP-A1SC15 already includes a weatherproof mounting bracket and for ceiling installations, the IP-A1PC238 Ceiling Speaker provides spring clamps for quick and easy mounting.


Make yourself heard clearly at 124 dB

Excellent sound and clear speech over long distances with a maximum sound pressure level of 124 dB at 1 m: The connection of the IP horn speaker IP-A1SC15 with PoE+ enables the integrated 15 W amplifier to broadcast excellent sound quality at very high sound pressure level.

Robust IP66 weather resistant housing

The IP-A1SC15 Horn Speaker is ideal for outdoor applications. It combines the TOA proven robust construction with the latest IP technology. The IP horn speaker is ready to broadcast even at extreme temperatures between -30 °C and + 55 °C and has an IP66 (Dust/Water) protected housing.

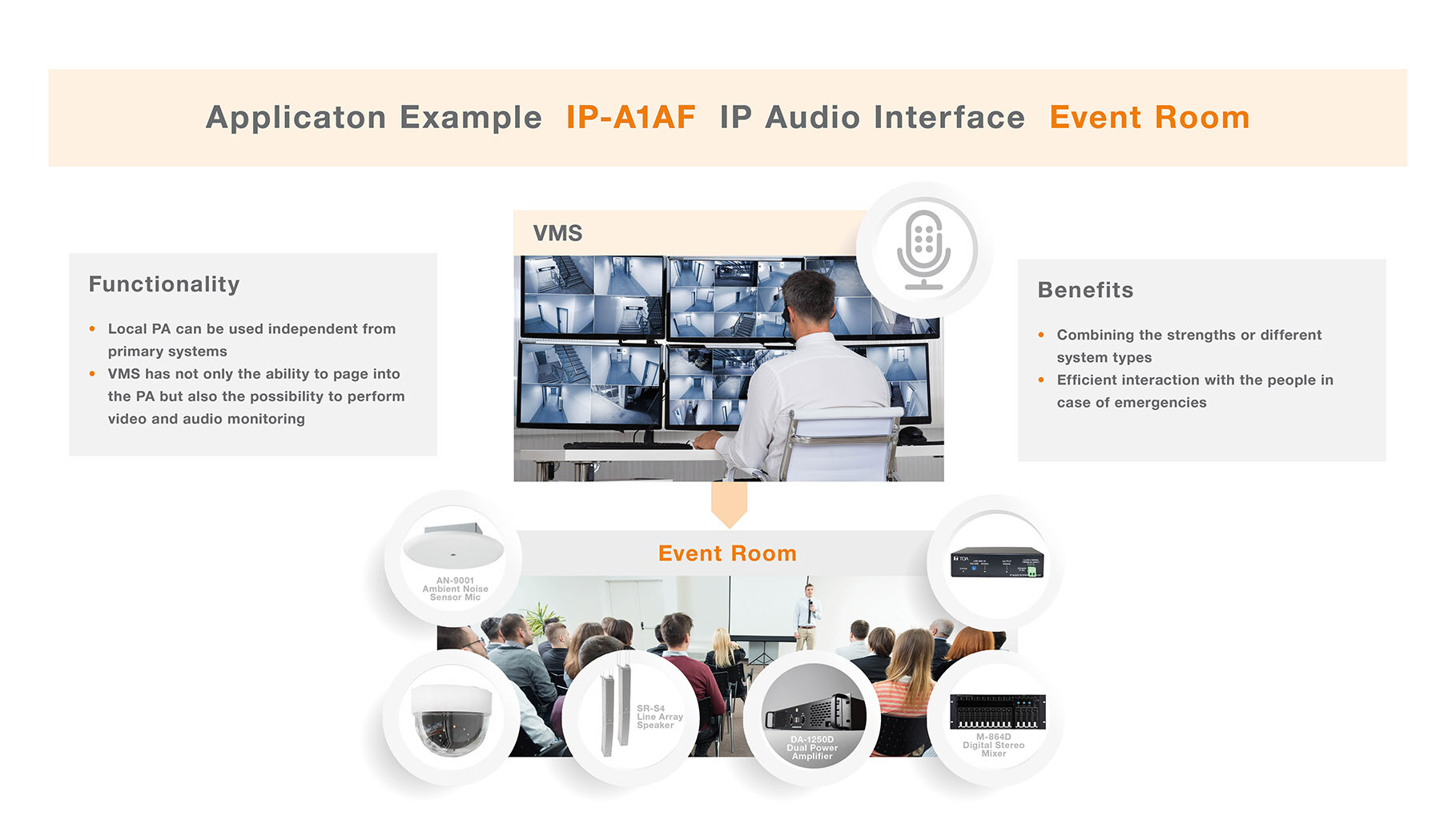

Turn your analogue equipment into IP devices

The IP-A1AF Audio Interface can supply a wide variety of conventional 8 Ohm loudspeakers or integrate a complete local PA system into your IP solution. The IP-A1PG Paging Gateway can be connected to analogue audio sources as audio players for BGM or microphones and distribute this audio to various IP devices in the network simultaneously.

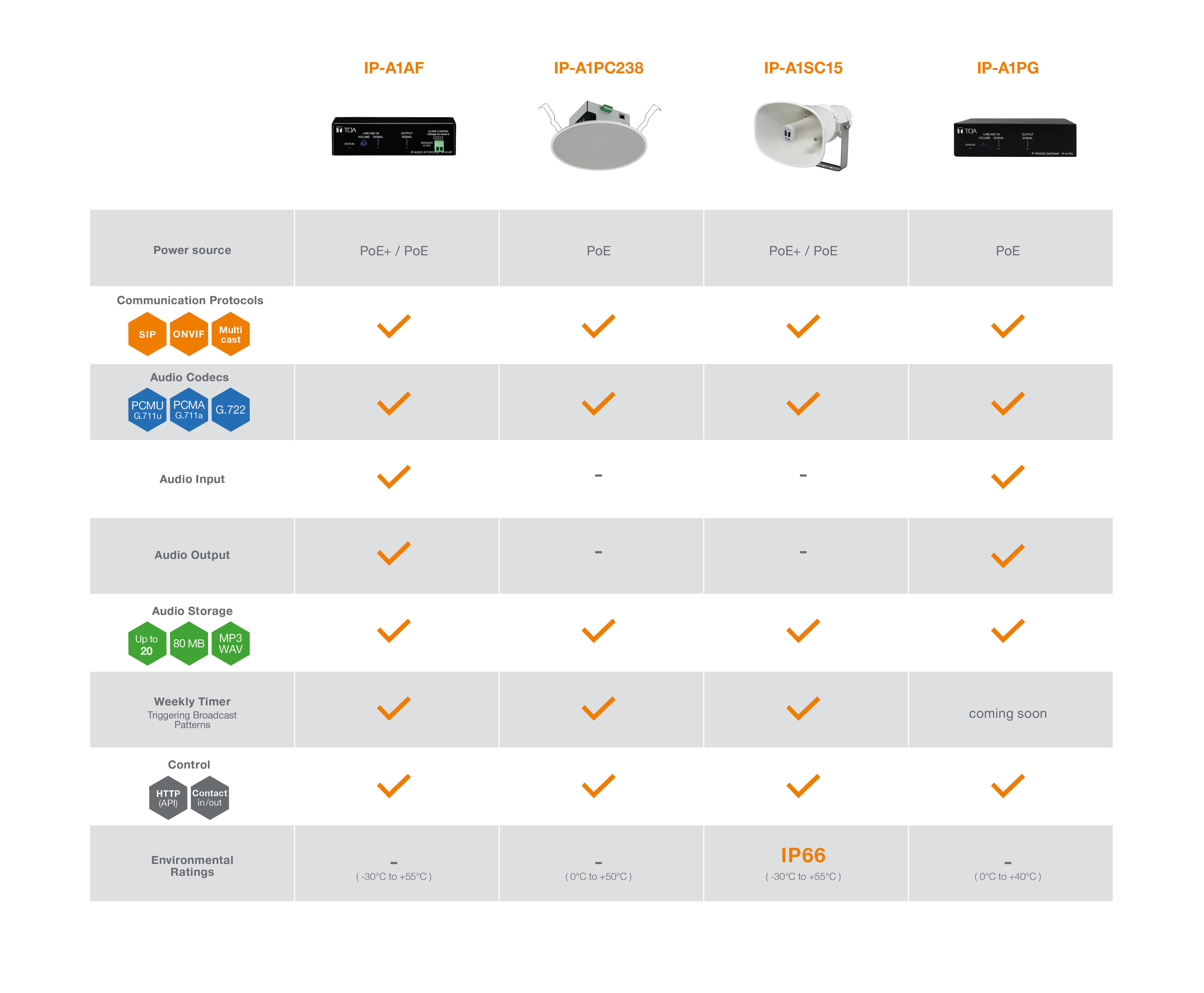

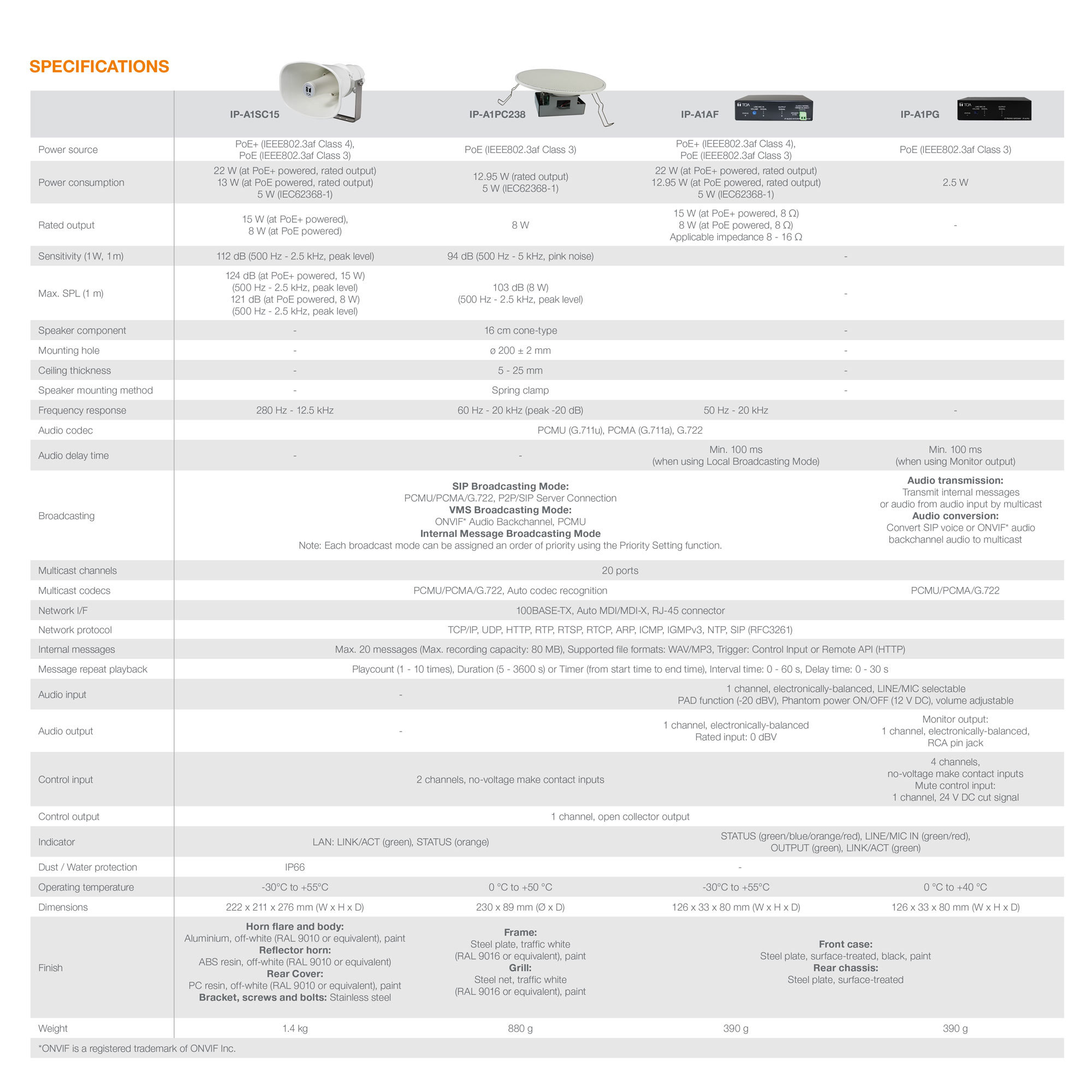

IP-A1 Product Information

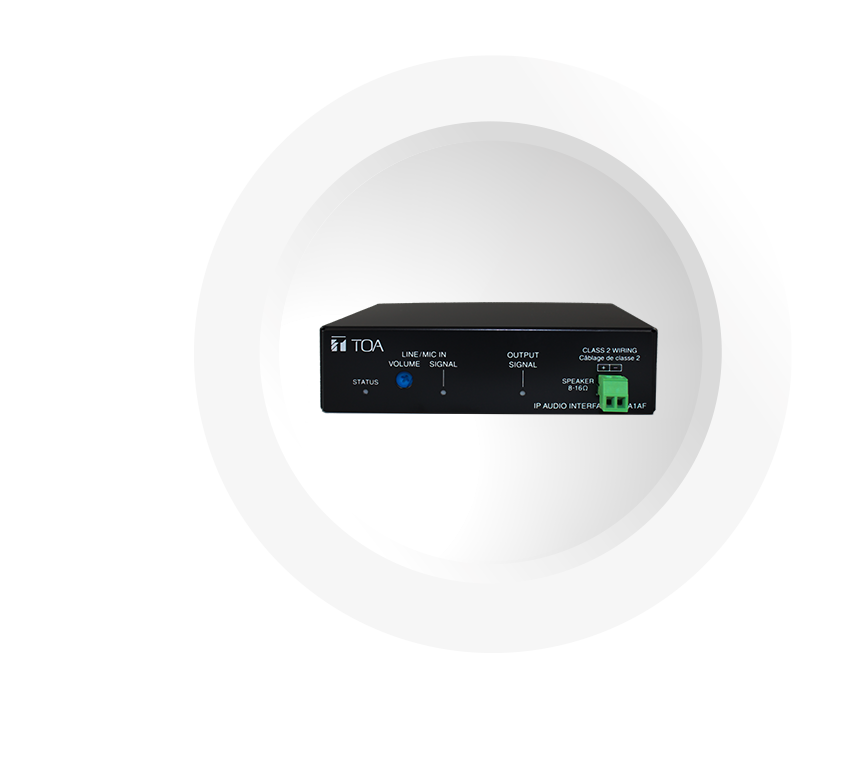

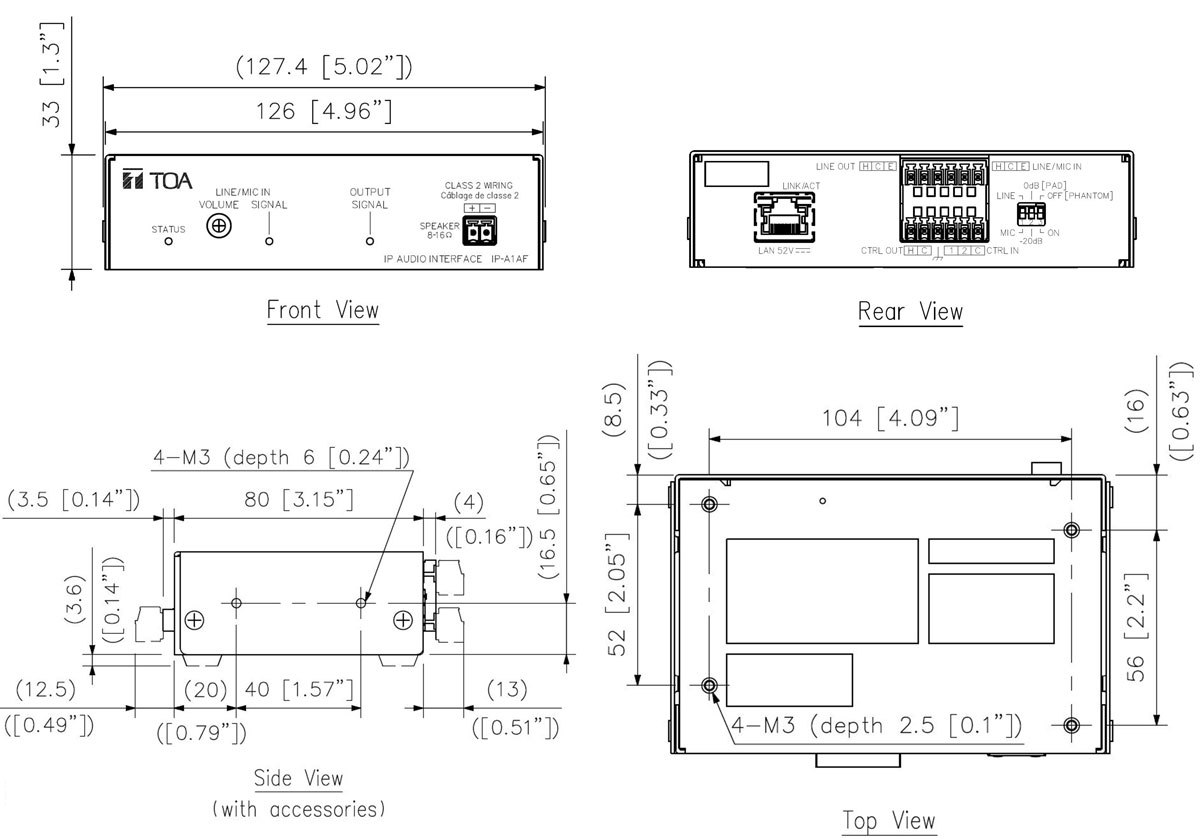

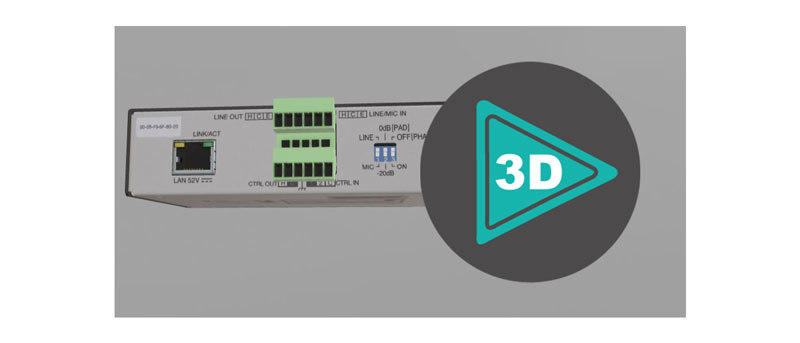

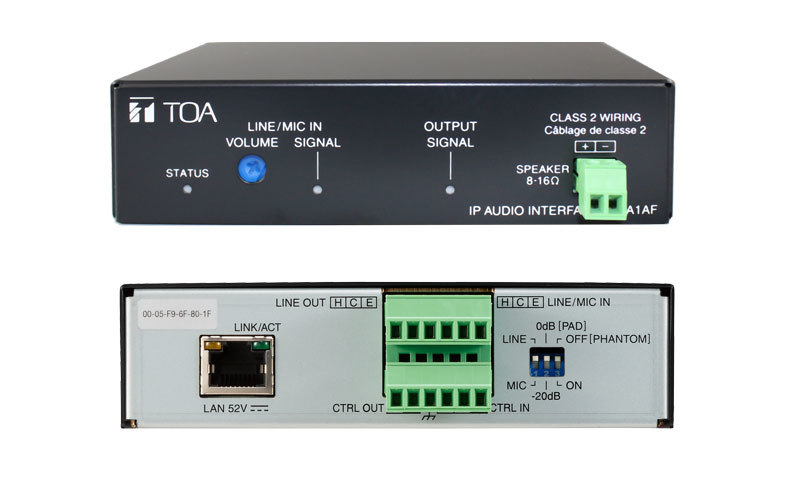

IP Audio Interface Unit - IP-A1AF


The IP-A1AF converts SIP or ONVIF audio signals to analogue audio signals to integrate local PA systems like audio mixers and amplifier. It also allows ordinary 8 Ohm loudspeakers to be turned into a SIP-based IP speaker.

  • PoE+, PoE powered

  • Line Output - MIC / Line Input (Phantom power for microphone input)

  • 15 W (8 Ohm, PoE+) / 8 W (8 Ohm, PoE) amplifier

  • Control relay output

  • Onboard timer function for up to 20 internally stored messages

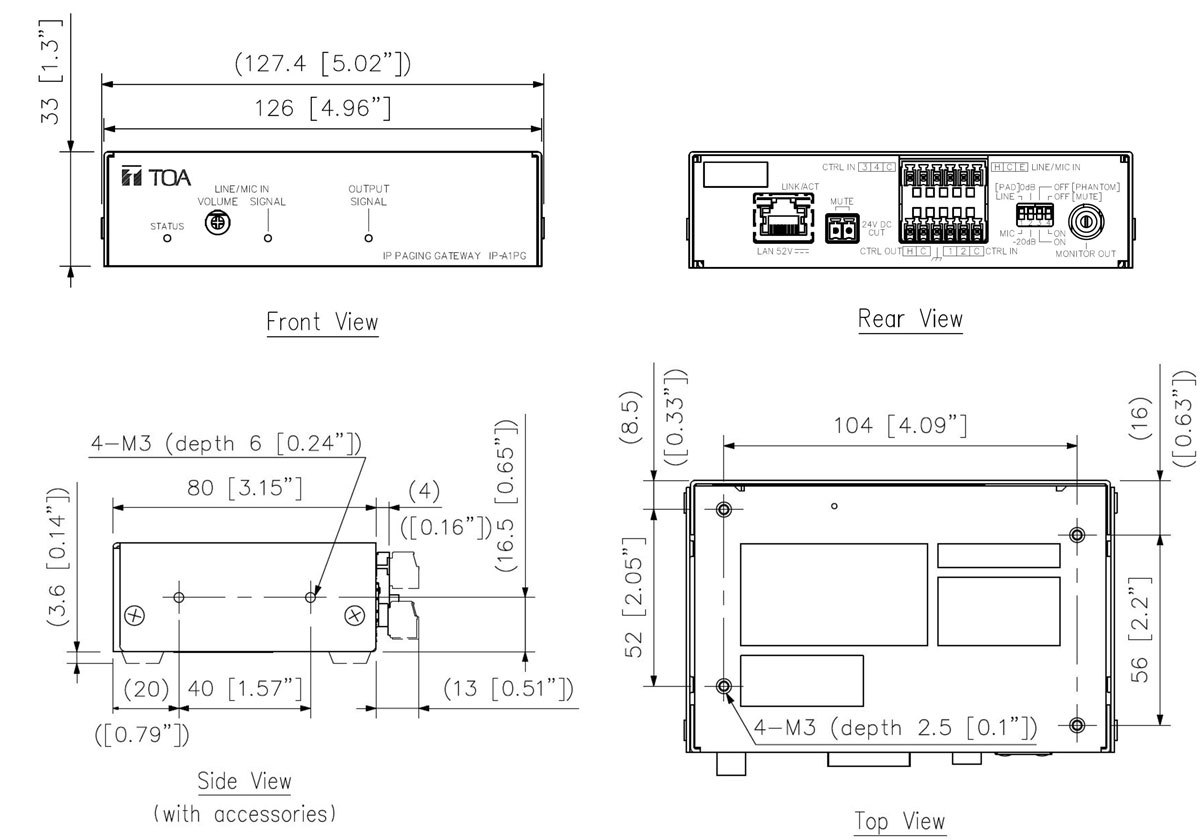

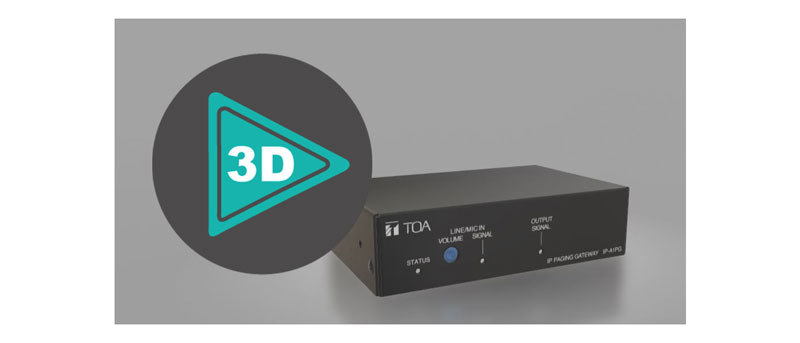

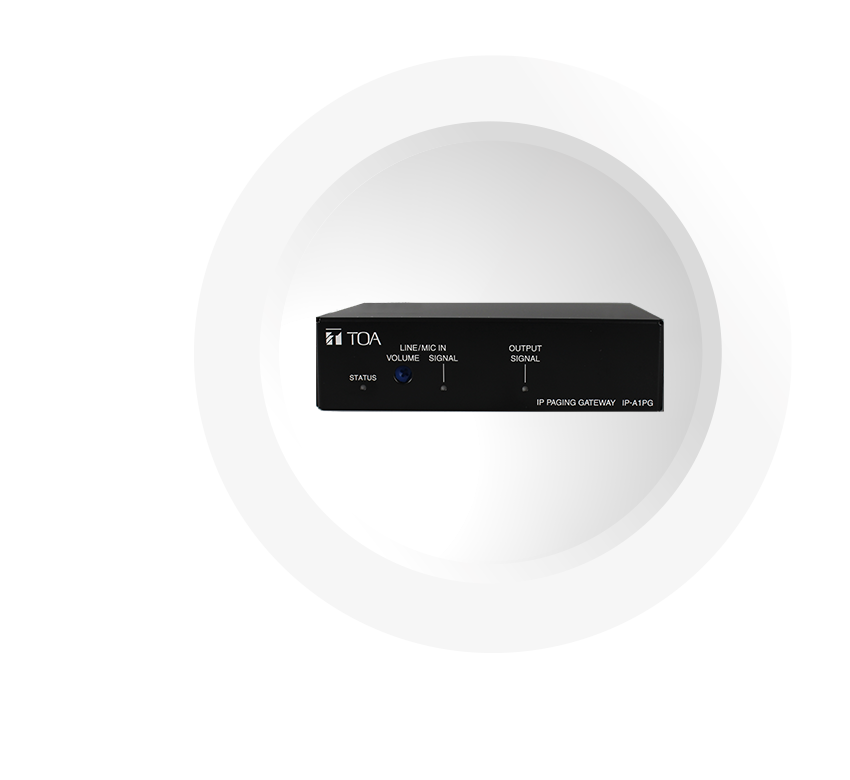

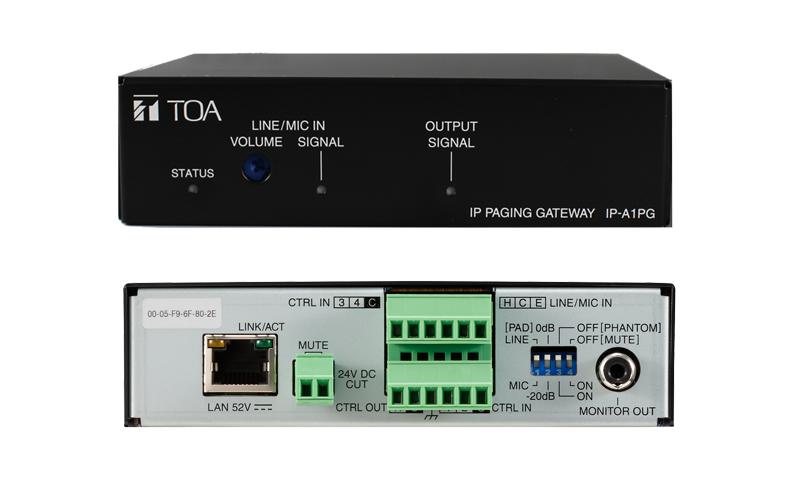

IP Paging Gateway Unit - IP-A1PG



The IP-A1PG converts IP audio signals into multicast streaming for delivering the audio to multiple IP speakers and / or other IP endpoints, which is ideal for zoning / grouping audio distribution projects.

  • PoE powered

  • Converts IP audio signals into multicast streaming

  • Analogue audio input

  • Control input for triggering broadcast event

  • Onboard timer function (coming soon) for up to 20 internally stored messages

  • Priority Management

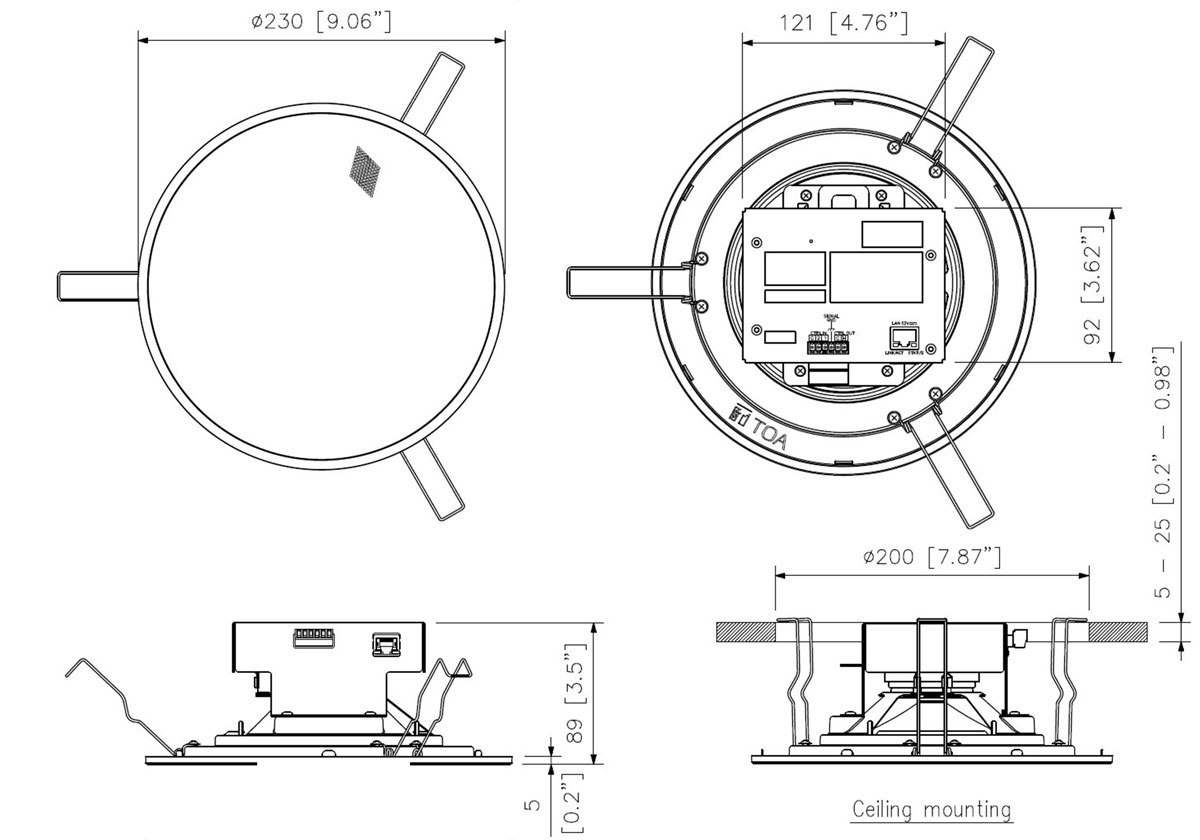

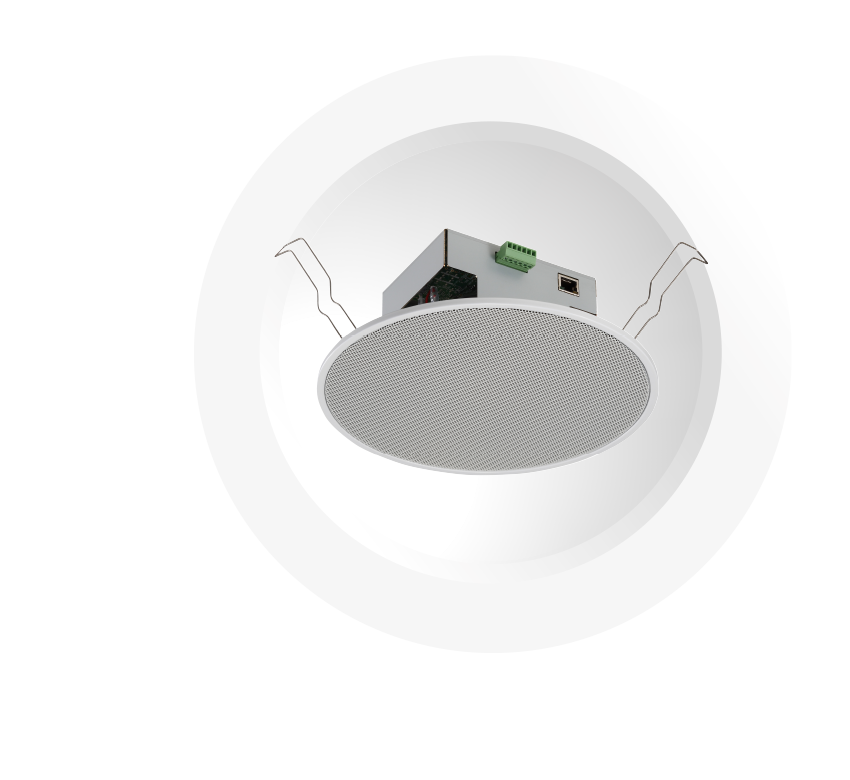

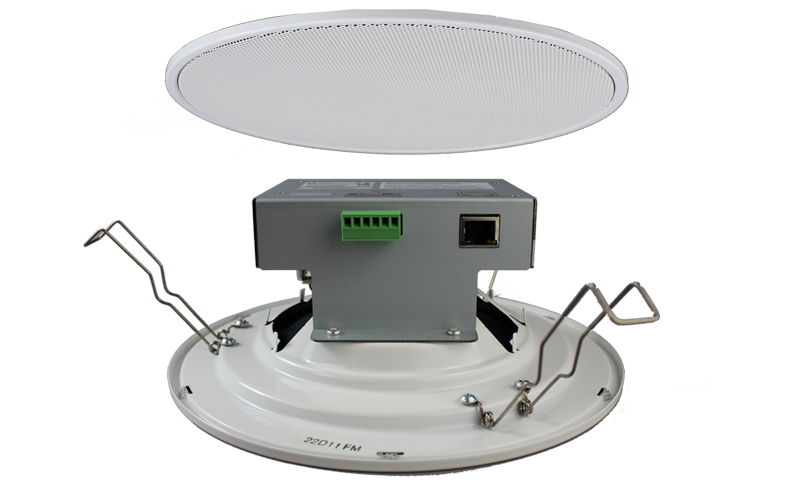

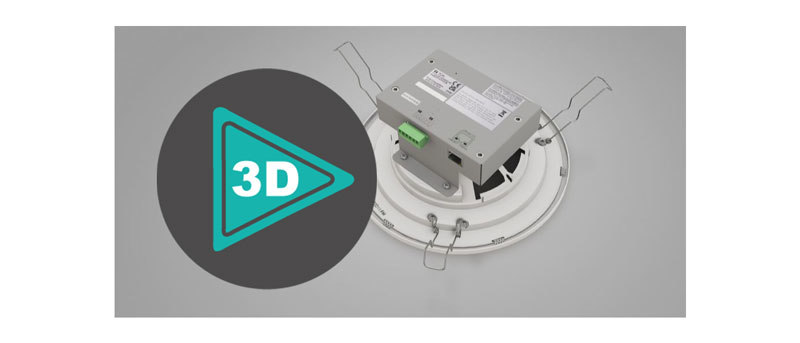

IP Ceiling Speaker - IP-A1PC238



The IP-A1PC238 is an SIP-enabled flush-mount ceiling speaker. The pre-assembled spring catch hardware allows quick installations.

  • 8 W rated output (built-in amplifier, PoE powered)

  • Flat front panel

  • Weight of only 880 g

  • Contact inputs and output for interaction with local equipment

  • Universal applicable diameter of 230 mm

  • Onboard timer function for up to 20 internally stored messages

  • Can be integrated with security video surveillance systems via network platform using ONVIF protocol

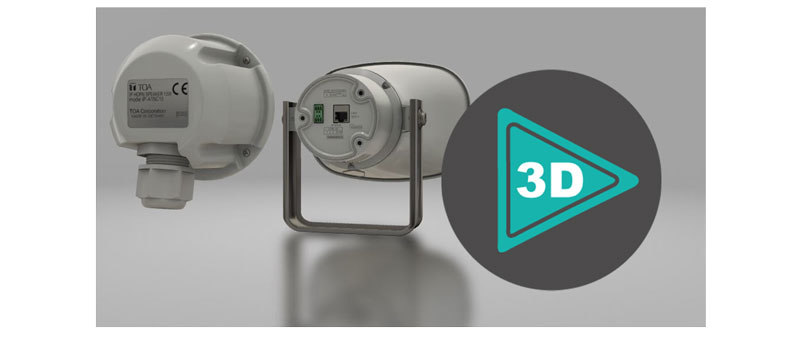

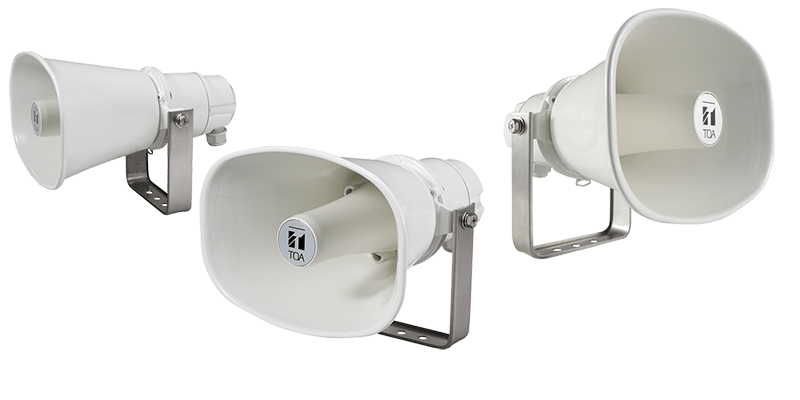

IP Horn Speaker - IP-A1SC15



Add a strong voice to your system - Expand your Video Management System (VMS) or SIP-based Communication System by clear and strong announcements. Based on open standards, the IP horn speaker IP-A1SC15 plugs right into standard IP networks and can be easily integrated with your VMS or SIP-based communication system.

  • It broadcasts crystal clear pre-recorded voice messages or live speech announcements, manually or automatically triggered by VoIP (Voice over IP) / SIP phone systems, IP camera systems, image sensing or motion detection video systems

  • Offering a maximum SPL of 124 dB, e.g. to respond immediately to an emergency situation with a live speech.

  • The IP horn speaker is a complete stand-alone PA-system with high-quality speaker, built-in 15W power amplifier and integrated audio source for 20 pre-recorded messages.

  • It supports Power over Ethernet (PoE+).
