IP-A1SC15

Add a strong voice to your system

Add a strong voice to your system

Expand your Video Management System (VMS) or SIP-based communication system by clear announcements

Based on open standards, the IP horn speaker IP-A1SC15 plugs right into standard IP networks and can be easily integrated with your VMS or SIP-based communication system. It broadcasts crystal clear pre-recorded voice messages or live speech announcements, manually or automatically triggered by VoIP (Voice over IP) / SIP phone systems, IP camera systems, image sensing or motion detection video systems, offering a maximum SPL of 124 dB, e.g. to respond immediately to an emergency situation with a live speech. The IP horn speaker is a complete stand-alone PA-system with high-quality speaker, built-in 15W power amplifier and integrated audio source for 20 pre-recorded messages. It supports Power over Ethernet (PoE+).

ADVANTAGES

Let your VMS or SIP system have the voice

Based on open standards, the IP-based horn speaker IP-A1SC15 plugs right into standard IP networks and can be easily integrated with your Video Management System (VMS) or SIP-based communication system using common protocols. The IP horn speaker broadcasts crystal clear pre-recorded voice messages or live speech announcements, manually or automatically triggered by VoIP (Voice over IP) / SIP phone systems, IP camera systems, image sensing or motion detection video systems.

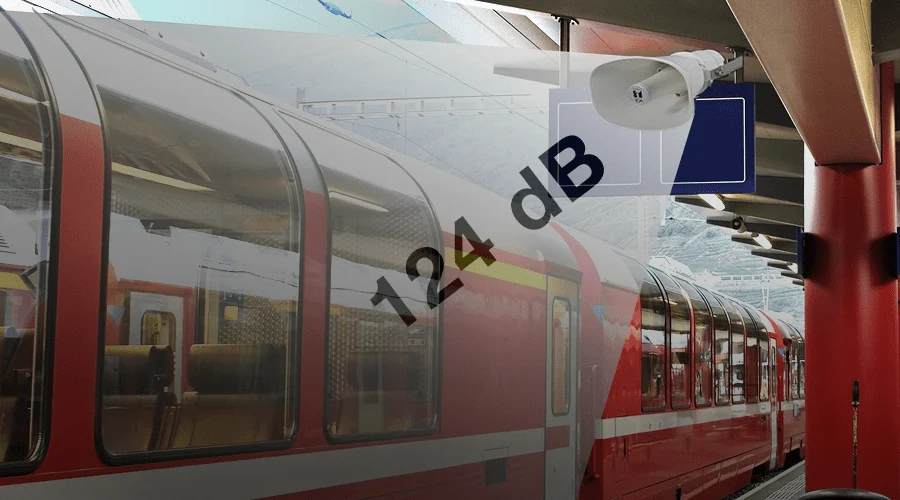

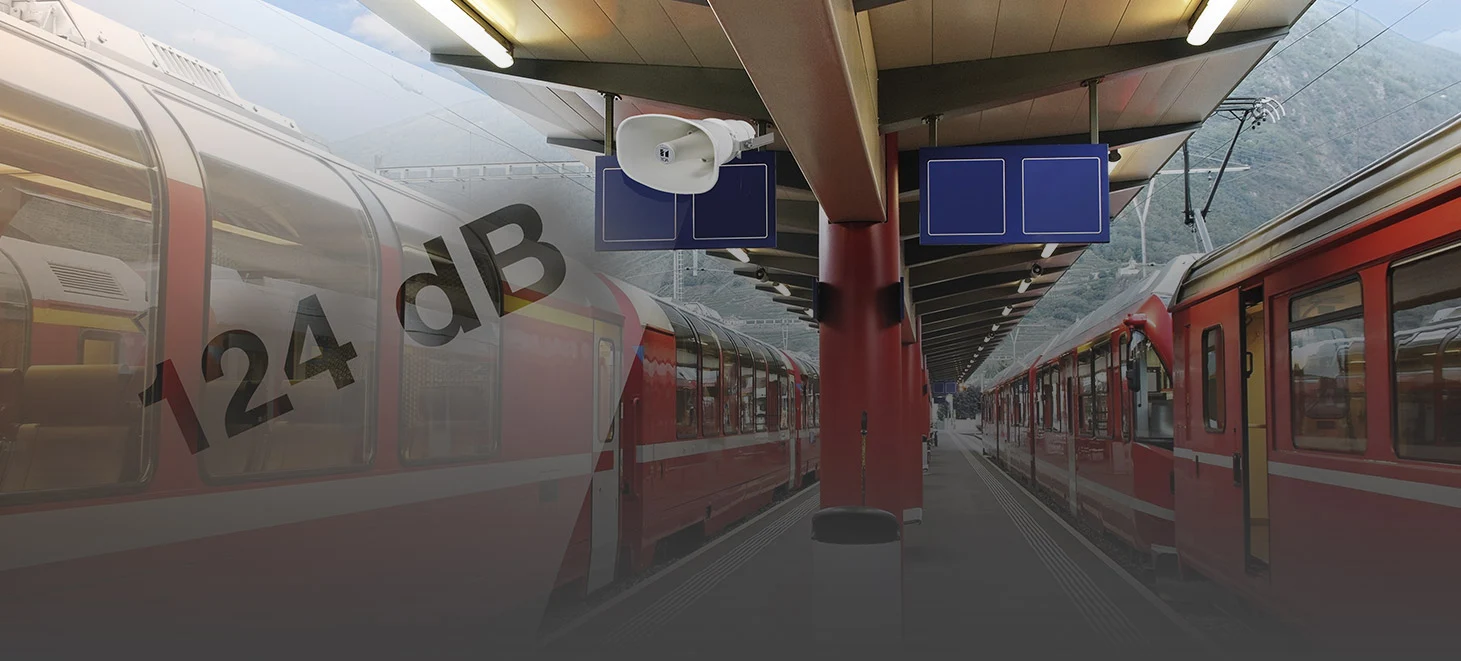

Make yourself heard clearly at 124 dB

Excellent Sound and clear speech over long distances at a maximum sound pressure level of 124 dB: The connection of the IP horn speaker with PoE+ enables the integrated 15W amplifier to broadcast excellent sound quality at very high sound pressure level.

Robust IP66 weather resistant housing

The IP-A1SC15 combines the TOA proven robust construction with the latest IP technology. The IP horn speaker is ready to broadcast even at extreme temperatures between -30 °C and + 55 °C and has an IP66 (Dust/Water) protected housing.

Watch the videos

PLUG & BROADCAST – QUALITY THAT COUNTS

124

124 dB max sound pressure level

15

15 W power amplifier integrated

66

IP66 Dust/Water protected housing

FURTHER BENEFITS

Easy to customize over API

For customized solutions you can use the provided API to control the device individually. By using BrowserLine commands the speaker can be integrated into your own control program in a very simple way. Adapt the individual volume to the environmental noise level and optimize it to time, distance, and degree of emergency. The IP horn speaker offers fine volume control to increase or decrease sound volume and set different volume levels.

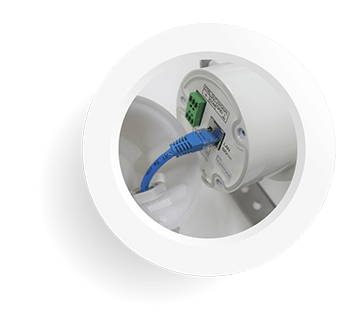

Simple to install wherever you need a strong voice

Plug and broadcast: A single standard network cable provides both power and connectivity with your network. Based on open standards, it supports Power over Ethernet (PoE+) and plugs right into standard IP networks. The IP horn speaker can be easily integrated with your Video Management System (VMS) or SIP-based communication system.

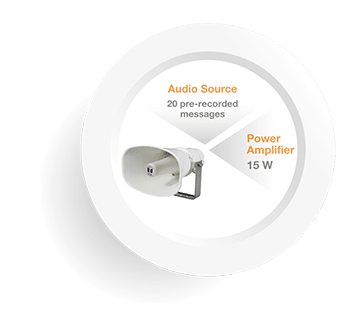

All-in-one stand-alone network audio technology

The TOA horn speaker IP-A1SC15 is a complete stand-alone advanced audio system with high-quality speaker, built-in 15W power amplifier and audio source for 20 pre-recorded messages in a single unit.

Cost effective and fast reaction

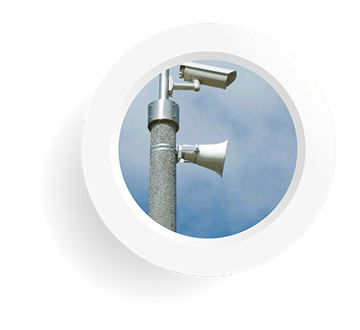

In an alert or emergency situation it can be fast and effective to use audio to respond with voice announcement instead of sending a security guard. When combined with e.g. video surveillance - or motion detection systems, it allows immediate reaction with live speech announcements or pre-recorded messages.

Harmonized output level for each different audio source

Individual volume level adjustment for each audio source to ensure uniform and harmonized output. A uniform output sound level ensures clear and listener-friendly voice announcements with high intelligibility. You can correct individually the input level of your sound sources one by one and set it to a uniform and harmonized output standard.

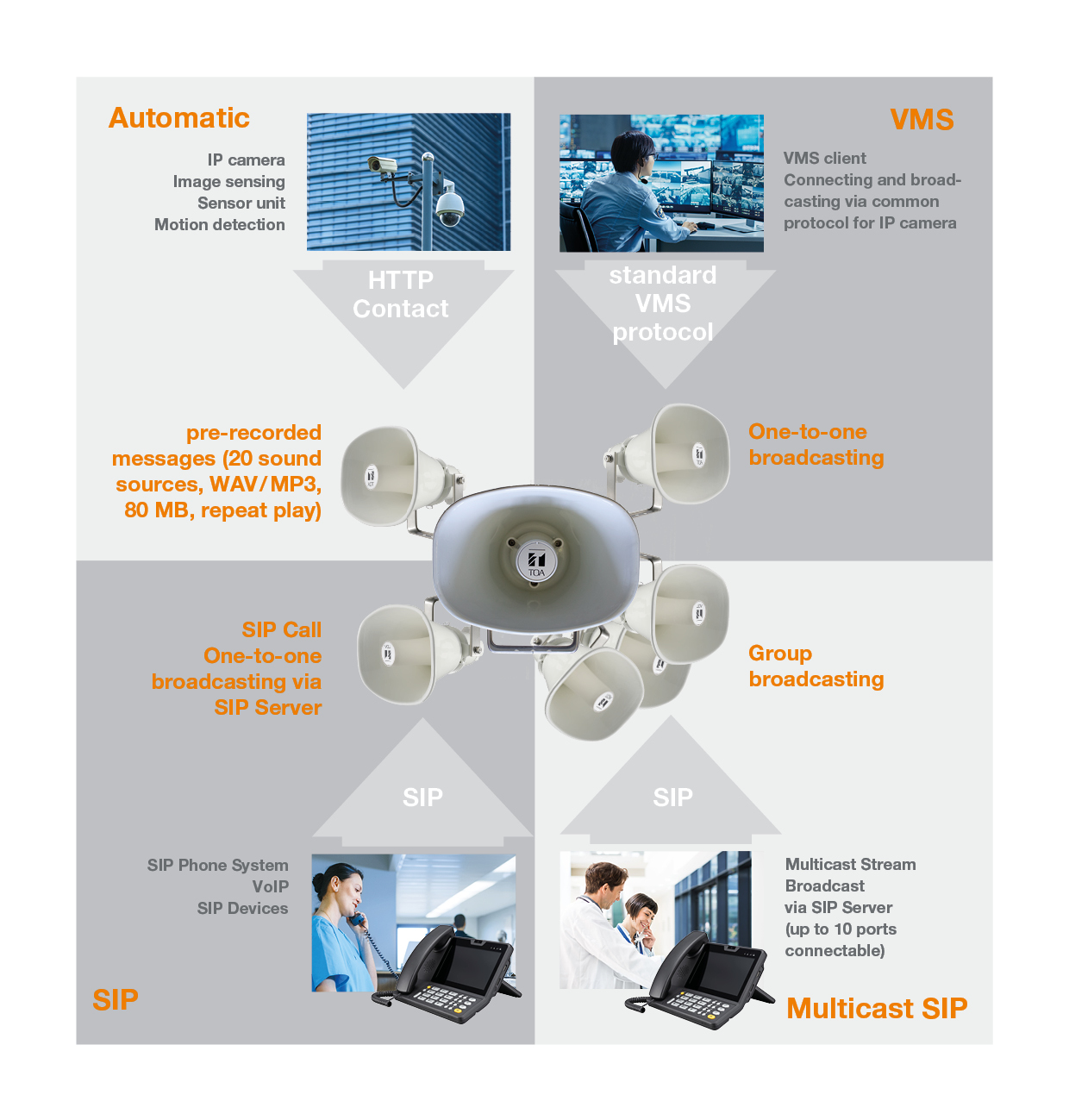

Plug & Broadcast: 4 Broadcasting Modes

Integrate and operate IP-A1SC15 via VMS, Motion Detection, IP Camera, Image Sensing, SIP Direct Call, SIP Multicast, VoIP, Pre-recorded Messages or live speech.

Get your quotation for the IP-A1SC15!

(* Please fill in this field)
Data Protection Policy

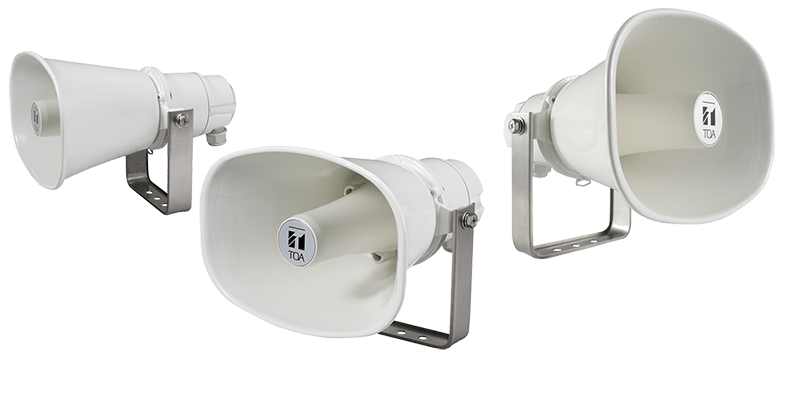

IP horn speaker IP-A1SC15

IP-based, robust and simple to install wherever you need a strong voice


FAQ

Specifications

Power source PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3)
Power Consumption 22 W (at PoE+ powered, rated output)
13 W (at PoE powered, rated output)
5 W (IEC62368-1)
Amplifier Rated Output 15 W (at PoE+ powered), 8 W (at PoE powered)
Sensitivity 112 dB (1 W, 1 m) (500 Hz - 2.5 kHz, peak level)
Maximum Sound Pressure Level 124 dB (at PoE+ powered, 15 W, 1 m) (500 Hz - 2.5 kHz, peak level)
121 dB (at PoE powered, 8 W, 1 m) (500 Hz - 2.5 kHz, peak level)
Frequency Response 280 Hz - 12.5 kHz
Audio Codec PCMU (G.711u), PCMA (G.711a), G.722
Broadcasting Mode SIP Broadcasting Mode: PCMU/PCMA/G.722
Multicast Broadcasting Mode: PCMU/PCMA/G.722, Max.10 ports
VMS Broadcasting Mode: Audio Backchannel, PCMU
Internal Message Broadcasting Mode
Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.
Internal Messages Max. 20 messages (Max. recording capacity׃ 80 MB)
Supported file formats
WAV file׃ 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file׃ 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat count׃ 1 - 10 times
Interval time׃ 0 - 30 sec
Trigger׃ Control Input or Remote API (HTTP)
Network I/F 100BASE-TX, MDI/MDI-X, RJ-45
Network Protocol TCP/IP, UDP, HTTP, RTP, ARP, ICMP, RTSP, SIP (RFC3261)
Control Input 2 channels, no-voltage make contact inputs, open voltage׃ 5 V DC, short-circuit current׃ 2 mA or less, removable terminal block (3 pins)
Control Output 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, removable terminal block (3 pins)
Indicator LAN LINK/ACT (green), STATUS (orange)
Dust/Water Protection IP66
Operating Temperature -30 °C to +55 °C (-22 °F to +131 °F)
Operating Humidity 90 % RH or less (no condensation)
Finish Horn flare and body׃ Aluminum, off-white (RAL 9010 equivalent), paint
Reflector horn׃ ABS resin, off-white (RAL 9010 equivalent)
Rear cover׃ PC resin, off-white (RAL 9010 equivalent), paint
Bracket, screws and bolts׃ Stainless steel
Dimensions 222 (W) X 211 (H) X 276 (D) mm (8.74" X 8.31" X 10.87")
Weight 1.4 kg (3.09 lb)
Accessory Rear cover x1, Removable terminal plug (3 pins) x2
Option Speaker mount bracket: SP-131, SP-201, SP-301
Pole band: YS-60B

IP-A1SC15 - IP horn speaker - Dimensional Drawing

Downloads

Instruction Manual
Operation Instructions
Datasheet PDF (Japan)

Further downloads

For further information as CAD-Model, Declaration of Conformity or Setting software please refer to the:

Product webpage of IP-A1SC15
