BGM sound systems

Small space project

Compact solution for small applications. For restaurant, a discreet and elegant speaker is often the first choice here.

For bars, the music is more in the foreground and requires a higher sound pressure level compared to restaurants.

Compact solution examples for small applications

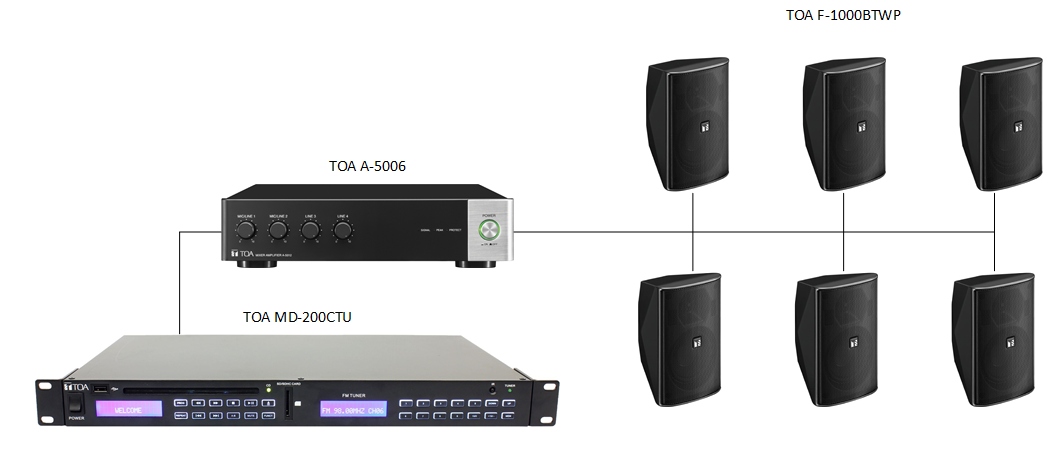

A multimedia player with CD player, USB/SD and FM Tuner. A compact amplifier with innovative EQ functions to optimize sound reproduction and six small, weatherproof speakers type F-1000TWP.

Medium space project

Medium size solution for areas in hotels or larger outdoor spaces, which requires a higher volume to cover the entire surface. The outdoor areas of this type of places often offer seating or areas to stroll around. The volume levels are usually rather low and it's more about background music.

Medium sized solution examples for outdoor areas

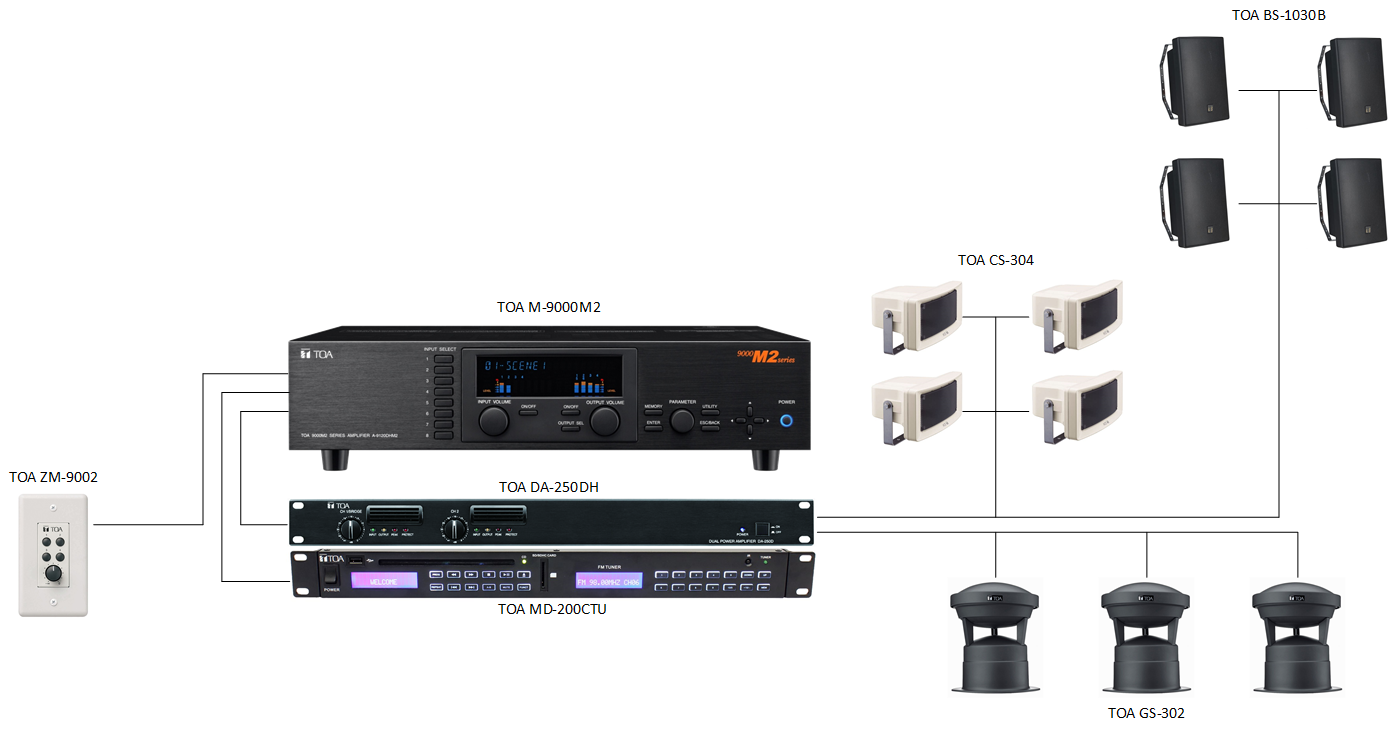

The heart of this system is the M-9000M2 with a D-001T module. The MD-200CTU player serves as music source while the DA-250DA acts as a 2-channel amplifier. One channel for the garden speakers and another channel for the the wall speakers.

The zones can be controlled remotely via the ZM-9002 remote control.

Large space project

Solutions for large outdoor locations, e.g. for pools, or the different outdoor areas of a hotel. It involves covering the exterior surfaces with a sound of sufficient quality and resistant to climatic conditions. The level of music can alternate between background music and foreground music. However, it is important to choose a speaker that covers the largest possible area and the seating around it.

Examples for large outdoor locations, e.g. of hotels

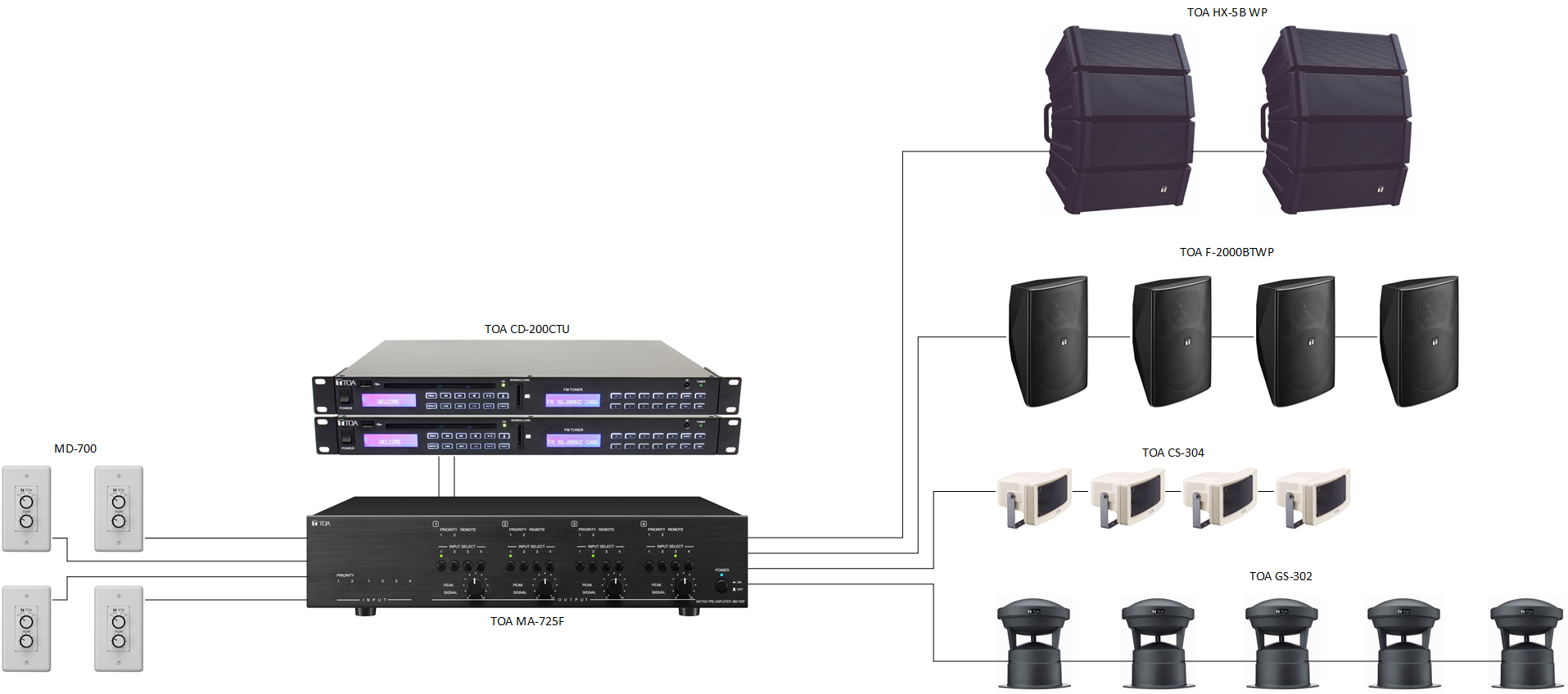

A 4x4 matrix amplifier with 250W per channel is driven by two MD-200CTU audio players. The MD-700 remote control can be used to adjust both the audio source and the volume for each zone, and thanks to the EQ's, the audio quality can be optimally adjusted to the respective needs.
