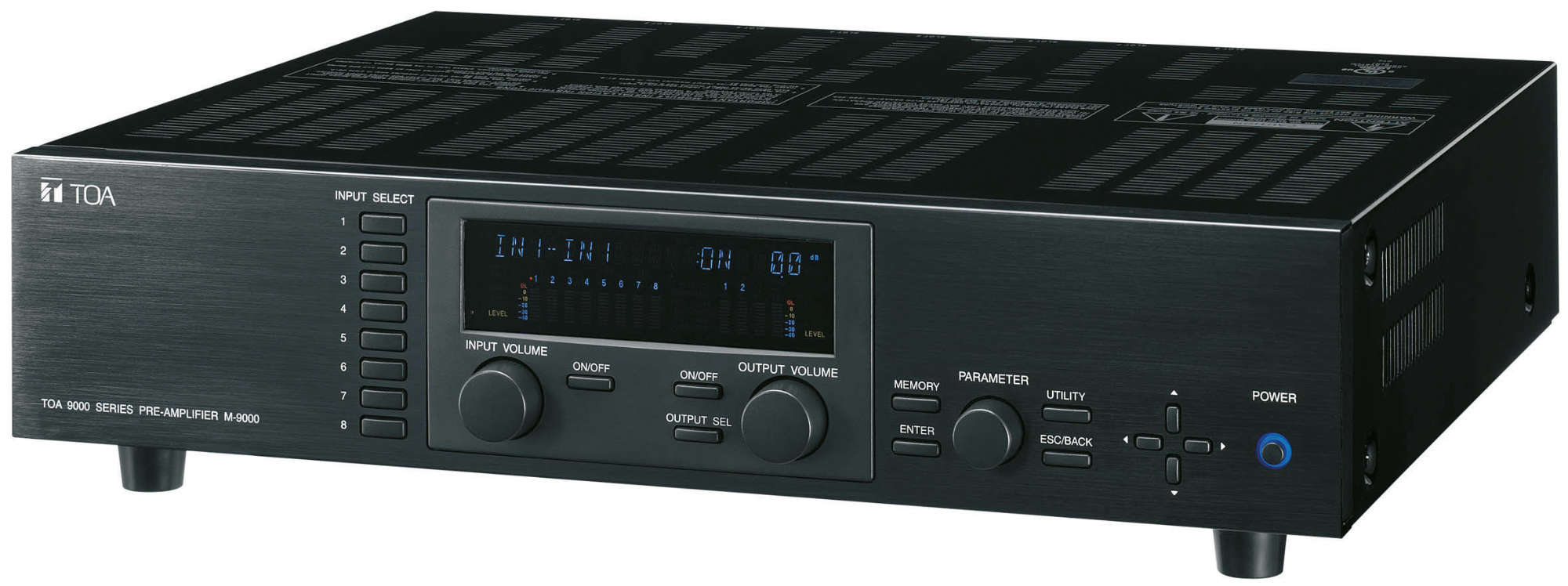

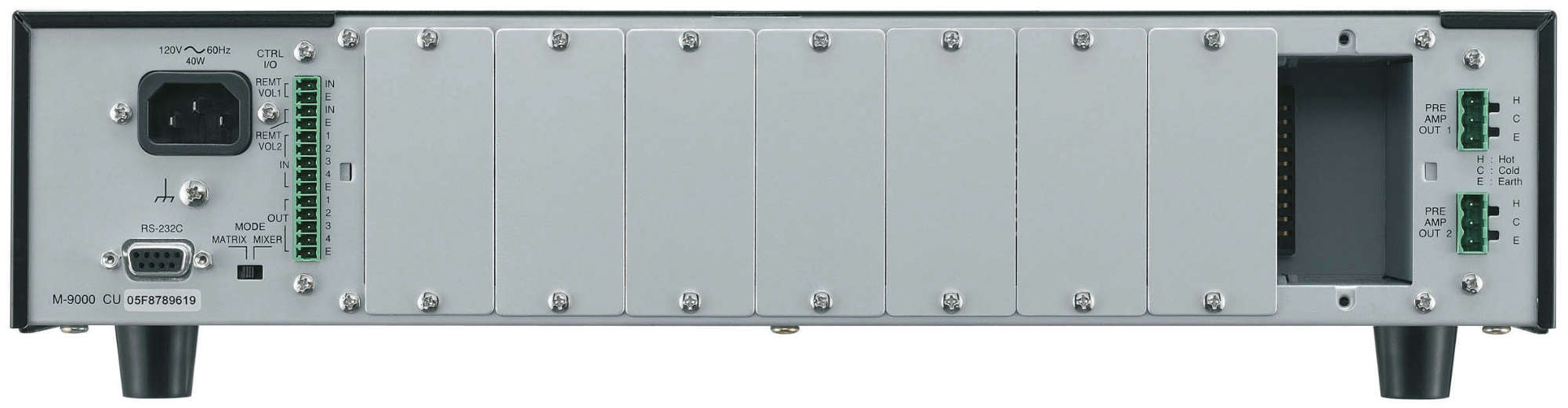

M-9000M2

Digital mixer

The M-9000M2 Pre-Amplifier is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used. The most appropriate modules can be selected depending on applications.
It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set at the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel.

  • Compact modular digital mixer
  • For rack-mounting, 2 units height
  • 32 presets for different applications
  • Up to 16 remote control panels can be connected to an M-9000M2 by using a RC-001T control module
  • Different modules, remote panels and a sensing microphone for individual adjustment to the ambient noise
  • Easy to use software




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
M-9000M2 CP-9500M2-EB CP-9550M2-EB
Power / current consumption

40 W

253 W (1/8 rated power)

253 W (1/8 rated power)

Frequency response

20 Hz - 20 kHz

20 Hz - 20 kHz

20 Hz - 20 kHz

Controls

Input channel selection, volume control and on/off switch; output channel selection, volume control and on/off switch; memory/utility button with parameter knob; enter/back button; up/down/left/right buttons; power

Operating temperature

-10 °C to +40 °C

Finish

Aluminium, black

Aluminium, Steel plate, black

Aluminium, Steel plate, black

Dimensions

420 x 107.6 x 353 mm (W x H x D)

420 x 107.6 x 415 mm (W x H x D)

420 x 107.6 x 415 mm (W x H x D)

Weight

6 kg

9.6 kg

9.6 kg

Power source

220 - 240 V AC, 50 / 60 Hz

220 - 240 V AC, 50 / 60 Hz

220 - 240 V AC, 50 / 60 Hz

Distortion

< 0.008 %

< 0.3 %

< 0.3 %

S/N ratio

90 dB(A)

85 dB(A) (20 Hz-20 kHz, all tone controls flat, output volume minimum)

85 dB(A) (20 Hz-20 kHz, all tone controls flat, output volume minimum)

Indicator

Alpha-numeric (szene name, parameter value ...), communication, fault, 12x 3-colour bargraph for input and output levels/fader set, channel on

Crosstalk

64 dB or more (at 20 kHz)

Inputs

Audio input: Max. 8 channels, modular (modules optional)
Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3V DC, short-circuit current: 1mA or less, removable terminal block (14 pins)

2, max. 8 (with optional modules)

2, max. 8 (with optional modules)

Outputs

Audio output: Preamplifier outputs 1 and 2: 0 dBV, 600 Ω, balanced, removable terminal blocks (3-pins), max. 8 outputs
Control output: 4 outputs, open collector output, withstand voltage: 27V DC,control current: 50mA, removable terminal block (14 pins)

Speaker Outputs 2,
Mix outputs (with optional module T-001T): max. 3 modules, 2 channels each: +20 dBV (in 10 kΩ), 600 Ohm, balanced

Speaker Outputs 2,
Mix outputs (with optional module T-001T): max. 3 modules, 2 channels each: +20 dBV (in 10 kΩ), 600 Ohm, balanced

A/D, D/A Converter

24 bit ΔΣ DAC

Equalizer / Filter

Tone control (bass, treble: ±12 dB), 10 parametric equalizers (±12 dB, 20-20000 Hz, Q: 0,3 ... 5), 10 speaker equalizer presets (30 with software), high & low pass (12 dB/oct, 20-20000 Hz each)

Compressor

5 presets (optimised for different applications)

Delay

0 ... 40 ms

Matrix

8 x 8

Other features

32 scenes (storable settings); key lock

PC software

inclusive

Operating humidity.

35 % to 80 % RH (no condensation)

35% to 80%

35% to 80%

Accessory (included)

Power cord (2 m) x 1, Rack mounting bracket x 2, Bracket mounting screw x 4, Blank panel x 7, Blank panel mounting screw x 14, Removable terminal plug (3 pins) x 2, Removable terminal plug (14 pins) x 1, CD x 1

Power

cord (EUR/UK) x 2, rack mounting bracket x 2, bracket mounting screw (M4x16) x 4,

removable terminal plug (3-pins) x 2, removable terminal plug (14 pins) x 1, CD-ROM

x 1, start guide x 1, terminal block cover x 4, terminal block cover mounting screw

(M4x8) x 2

Power

cord (EUR/UK) x 2, rack mounting bracket x 2, bracket mounting screw (M4x16) x 4,

removable terminal plug (3-pins) x 2, removable terminal plug (14 pins) x 1, CD-ROM

x 1, start guide x 1, terminal block cover x 4, terminal block cover mounting screw

(M4x8) x 2

Rated output

500 W x2

550 W x2

Speaker output

100 V, 500 W, 20 Ω, Connector: screw terminal

550 W x 2 (4 Ω), 350 W x 2 (8 Ω), Connector: Neutrik NL4MD-H-1 x 2

Control input

RS-232C, D-sub connector (9P, female), for PC setting or control by AMX, Crestron etc.;
Control input: 4, no-voltage make contact, open voltage: 3.3 V DC, short-circuit current: 1 mA or less, removable terminal block (14 pins); 2 remote volume control by potentiometer 10 kΩ

RS-232C, D-sub connector (9P, female), for PC setting or control by AMX, Crestron etc.;
Control input: 4, no-voltage make contact, open voltage: 3.3 V DC, short-circuit current: 1 mA or less, removable terminal block (14 pins); 2 remote volume control by potentiometer 10 kΩ

Control output

4, open collector output, withstand voltage: 27 V DC, control current: 50 mA, removable terminal block (14 pins)

4, open collector output, withstand voltage: 27 V DC, control current: 50 mA, removable terminal block (14 pins)

Amplifier

Class D

Class D

Number of channels

8

8

Connectable microphones

8

8
