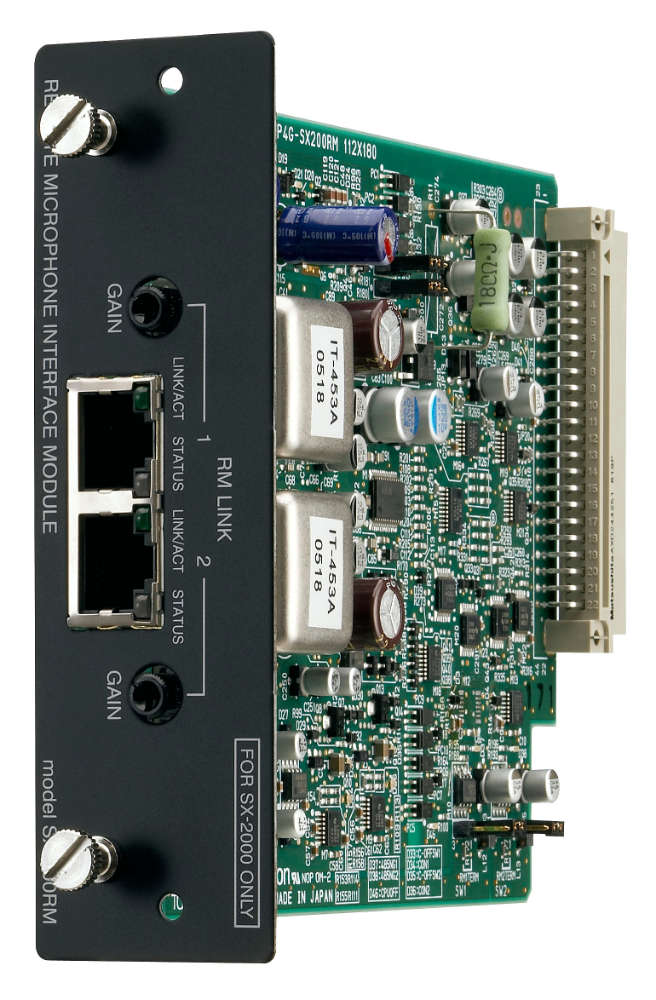

Remote Microphone Interface Module
The SX-200RM is a dedicated remote microphone module for the SX-2000 Series audio input unit and can be used to connect two remote microphones. Input sensitivity can be adjusted using the knobs located near the RJ45 connector.
Supplied from SX-2100AI
Steel plate, pre-coated, 30% gloss, black
35 x 119.5 x 178.4 mm (W x H x D)
Speaking points input module for the connection of two receivers. Connecting and powering the System receivers from two RJ45 Sockets. Gain control (gain) for each port, 24-bit AD-converter per channel.
Input sensitivity: 0 dBV
ADC: 24 bit, 48 kHz
Gain adjustment (gain): 0... + 12 dB
Power stations: 1 A (max.) per connection
