SX-2000CO

Control Output Unit

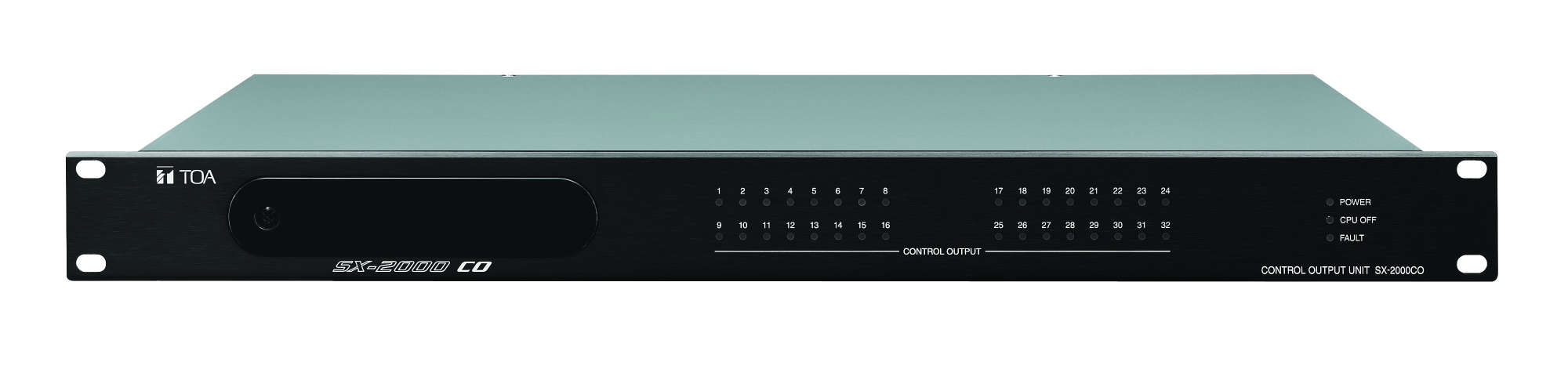

The SX-2000CO is a control output of the matrix system and can be mounted in an EIA equipment rack (1 U size). Multiple units can be decentralized in a whole system. It is equipped with 32 control output channels. The indicators on the front panel monitor the control output line status.
Control output status when the CPU turns off can be set. The SX-2000CO has two power inputs and can support a dual-redundant power supply system. By using a stand-alone mode, system can be configured with only the SX-2000CO, SX-2000CI Control input unit and the power supply unit, permitting the contact data of multiple channels to be transmitted to the remote locations with simple wiring.

  • 32 control outputs by relay contacts
  • Front panel LEDs for indicating each control output status
  • Supply of stabilized 24 V DC
  • 2 independent power inputs
  • Can be installed at remote locations with up to 800 m distance

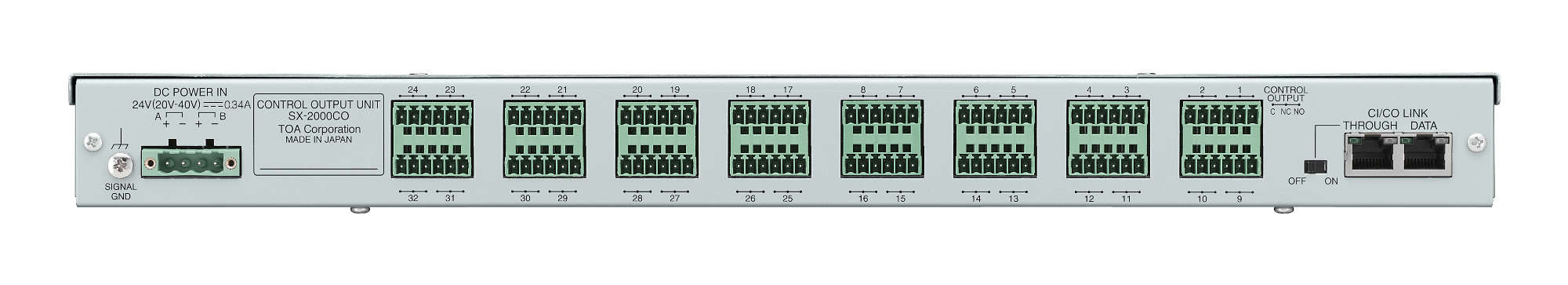

  • RJ45 connectors
  • One SX-2000CI per SX-2000AO or SX-2100AO can be added to the system




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
SX-2000CO
Finish

Aluminium, black

Dimensions

482 x 44 x 331.5 mm (W x H x D)

Weight

3.6 kg

Accessory (included)

Removable terminal plug (16 pins) x 4, Removable terminal plug (4 pins) x 1, Removable terminal plug (2 pins) x 1, Rack mounting screw x 4
