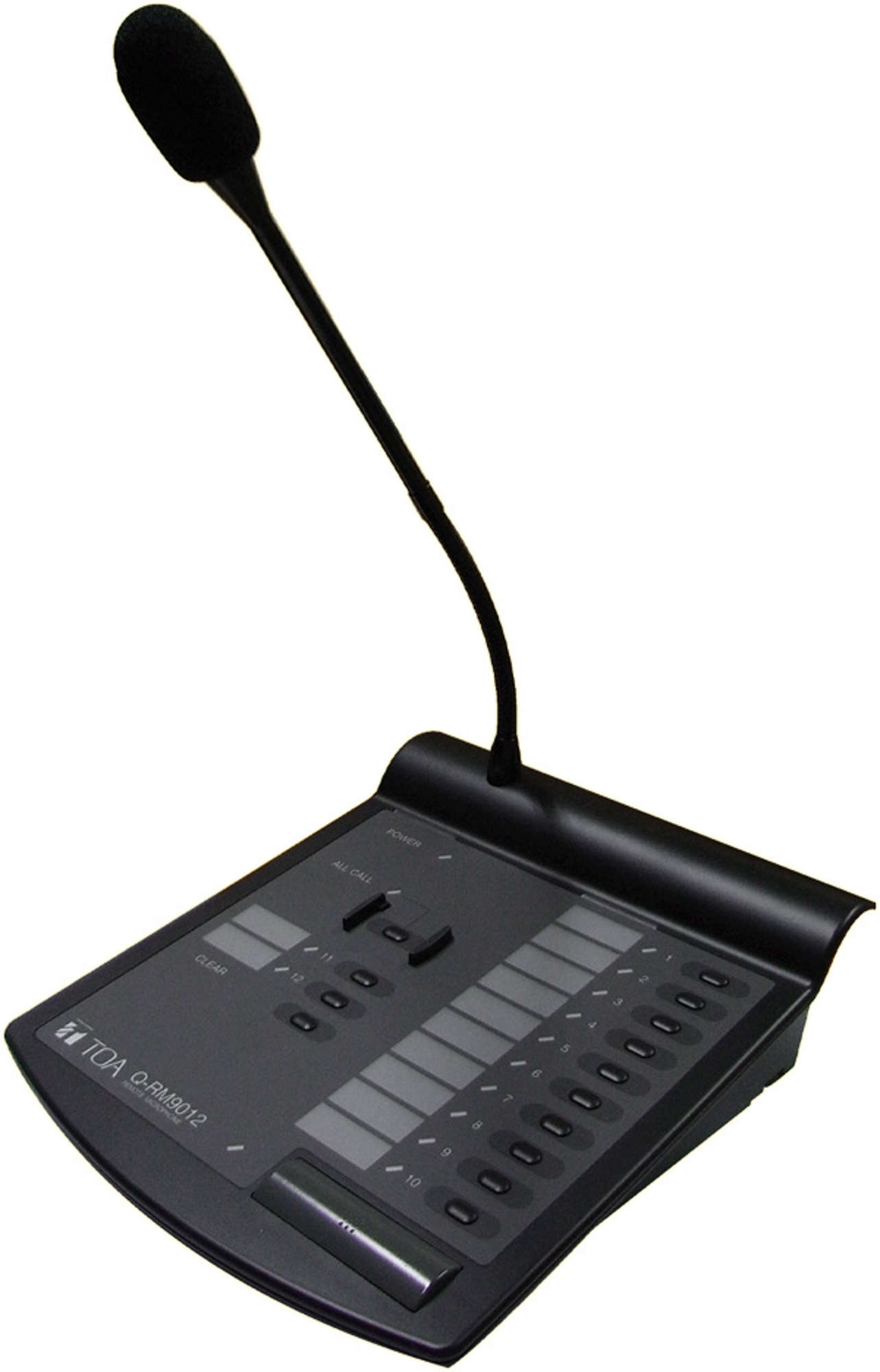

RM-9012C
Paging Microphone with chime
- Unidirectional electret condenser microphone with balanced audio output
- An all-call button for selecting all zones
- Clear button for clearing all zone selections
- Announcement to the selected zones out of a maximum of 12 zones
- 1-tone chime function with swich setting
- Microphones volume control
- LED indicator for each selector
- RJ45 connector
- Specifications
- Application examples
- Equipment
- Downloads
Specifications
Specifications for product:
| RM-9012C | |
|---|---|
| Power source |
24 V DC (Operating range: 19 V – 29 V DC) supplied from AC adaptor |
| Frequency response |
100 Hz - 20 kHz |
| Microphone type |
Desk top microphone for paging |
| Controls |
12 zone selection keys, All call key, Clear key, Talk key |
| Directivity |
Unidirectional Unidirectional |
| Dimensions |
190 x 76.5 x 215 mm (W x H x D) |
| Finish |
ABS resin, black |
| Weight |
750 g |
Application examples
Equipment
Downloads
