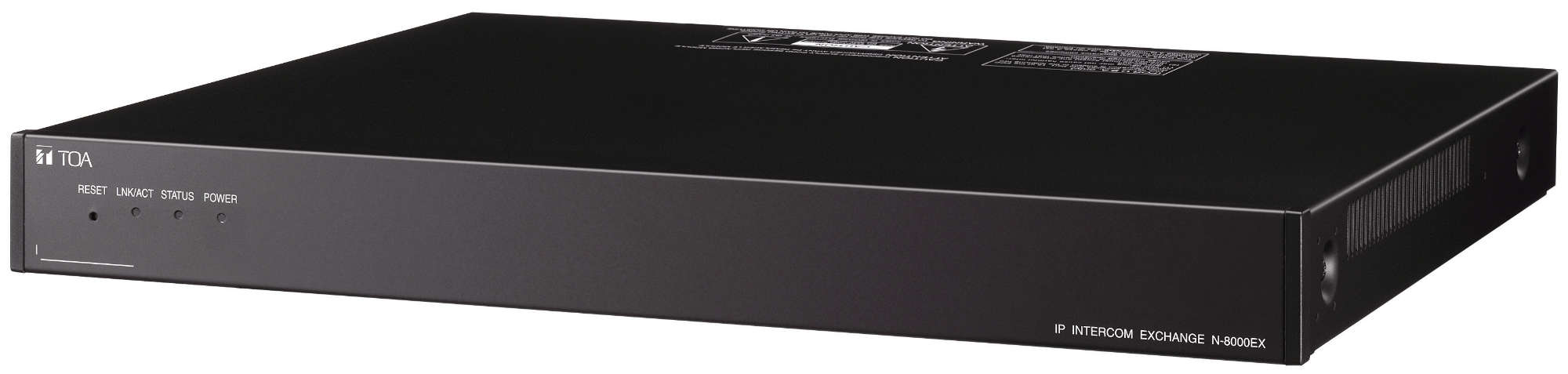

N-8010EX
IP Network Intercom Exchange
The IP Intercom Exchange uses packet audio technology to permit connection of up to sixteen N-8000 Series stations. Hands-free conversation is possible between stations. Moreover, the exchange is equipped with a networking interface, allowing up to 192 exchanges to be connected over a network using additional IP intercom exchanges. The Exchange can be mounted in an EIA standard rack (1-unit size) or to a wall using the supplied bracket.
- 10 Base-T / 100 Base-TX Ethernet network connection
- 16 station capacity
- 2-wire connection between stations and exchange
- 1 internal / 2 external speech links
- Specifications
- Application examples
- Tender text
- Downloads
Specifications
Specifications for product:
| N-8010EX | N-8000EX | |
|---|---|---|
| Power source |
220 - 240 V AC, 50 / 60 Hz |
220 - 240 V AC, 50 / 60 Hz |
| Power / current consumption |
50 W (at rated), 75 W (max.) |
50 W (at rated), 75 W (max.) |
| Network protocol |
TCP/IP, UDP, ARP, ICMP, HTTP, RTP, IGMP |
TCP/IP, UDP, ARP, ICMP, HTTP, RTP, IGMP |
| Network |
10BASE-T/100BASE-TX (Automatic-Negotiation) |
10BASE-T/100BASE-TX (Automatic-Negotiation) |
| Applicable model |
N-8050DS, N-8031MS, N-8000MS, N-8010MS, N-8011MS, N-8033MS, N-8065MS Q-TEE, N-8020MS, N-8050SB, N-8050SB |
N-8050DS, N-8031MS, N-8000MS, N-8010MS, N-8011MS, N-8033MS, N-8065MS Q-TEE, N-8020MS, N-8050SB, N-8050SB |
| Audio transmission system |
Unicast, Multicast |
Unicast, Multicast |
| Voice packet loss recovery |
silence insertion |
silence insertion |
| Audio delay time |
80 ms, 320 ms (controllable on the software) |
80 ms, 320 ms (controllable on the software) |
| Speech link |
Internal: 1 / External: 2 |
Internal: 4 / External: 8 |
| Line capacity |
16 |
16 |
| Wiring method |
1 set of twisted pair cable |
1 set of twisted pair cable |
| Transmission range |
Max. 1500 m (ø 0.65 mm, Loop resistance < 170 Ω) / 2,900 m (ø 0.9 mm) |
Max. 1500 m (ø 0.65 mm, Loop resistance < 170 Ω) / 2,900 m (ø 0.9 mm) |
| Paging output |
Station paging only |
Audio: 2 channels max. 0 dBV, 600 Ω, balanced, detachable terminal block |
| Dimensions |
420 x 44.3 x 356 mm (W x H x D) |
420 x 44.3 x 356 mm (W x H x D) |
| Finish |
Steel plate, black |
Steel plate, black |
| Operating temperature |
0 °C to +40 °C |
0 °C to +40 °C |
| Weight |
4.2 kg |
4.1 kg |
