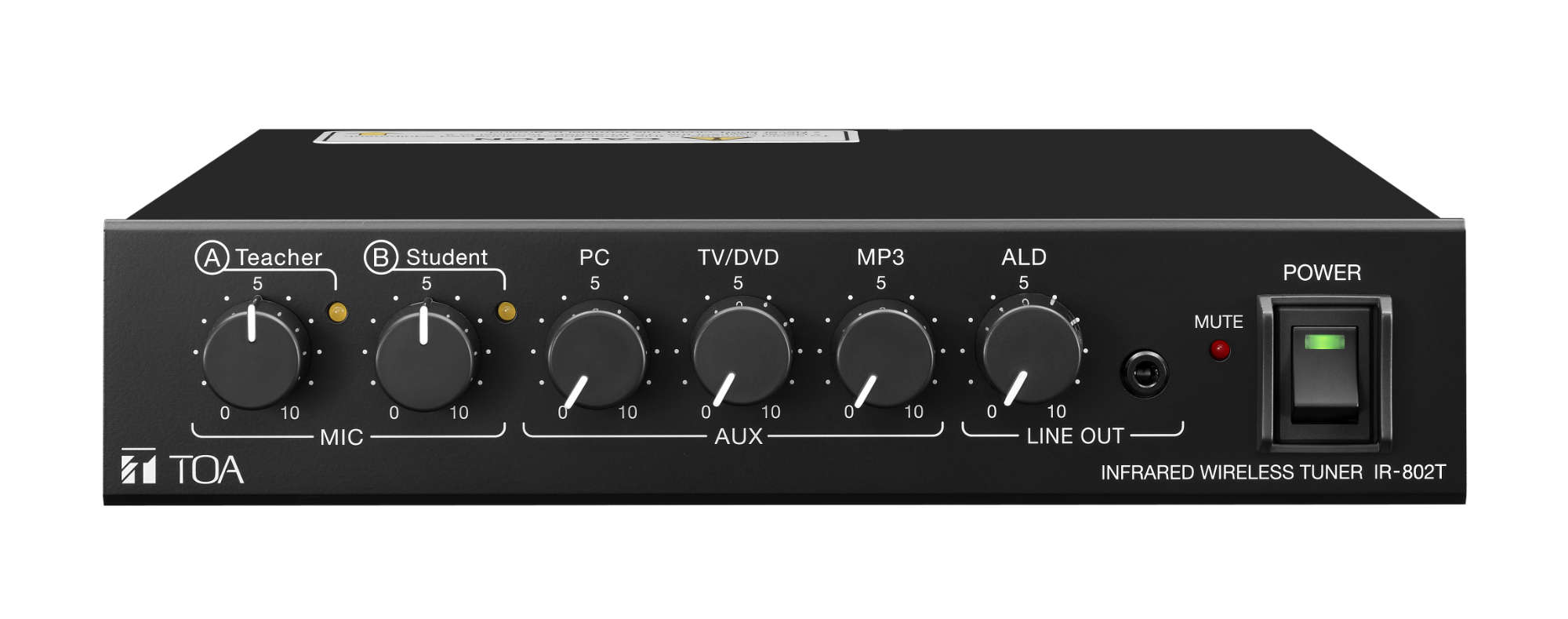

IR-802T
Tuner
The Infrared Wireless Microphone System using this IR-802T is a PA system designed for use in the school classrooms assuming that their size is about 10 m x 10 m (30 ft x 30 ft). The IR-802T is a 2-channel Infrared Wireless Tuner employing a fixed frequency system with 3 AUX inputs. It is combined with an infrared wireless microphone and an infrared wireless speaker to make up the infrared wireless microphone system. The infrared wireless microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent school classrooms.
- Designed for use in the school classrooms assuming that their size is about 10 m x 10 m with simultaneous use in adjacent school classrooms
- Equalizer control knobs for low-, mid- and high-frequency outputs
- Frequency response optimized to reduce acoustic feedback
- 3 AUX inputs for PC, TV/DVD player and MP3 audio player
- Output muting by 25 V speaker line signal from emergency/intercom paging
- Mixing output terminal for ALD (Assistive Listening Device)
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| IR-802T | |
|---|---|
| Power source |
AC mains 50/60 Hz (supplied AC adapter must be used) max. 40.8 W |
| Receiving frequency |
Teacher (Channel A): 3.100 MHz, Student (Channel B): 3.350 MHz |
| Frequency response |
100 Hz - 20 kHz |
| Inputs |
PC: -10 dBV, 10 kΩ, unbalanced, stereo mini jack (internal mixing) DVD/TV: -10 dBV, 10 kΩ, unbalanced, 2P RCA jack (internal mixing) MP3: -10 dBV, 10 kΩ, unbalanced, stereo mini jack (internal mixing) Mute: 25 V line signals of telephone paging from a school intercom system |
| Outputs |
ALD (Assistive Listening Device): -10 dBV, 10 kΩ, unbalanced, monaural mini jack Speaker: RJ45 (dedicated terminal for IR-820SP connection) |
| Dimensions |
210 x 46 x 312 mm (W x H x D) |
| Finish |
Aluminium, Steel plate, black |
| Weight |
1.8 kg |
