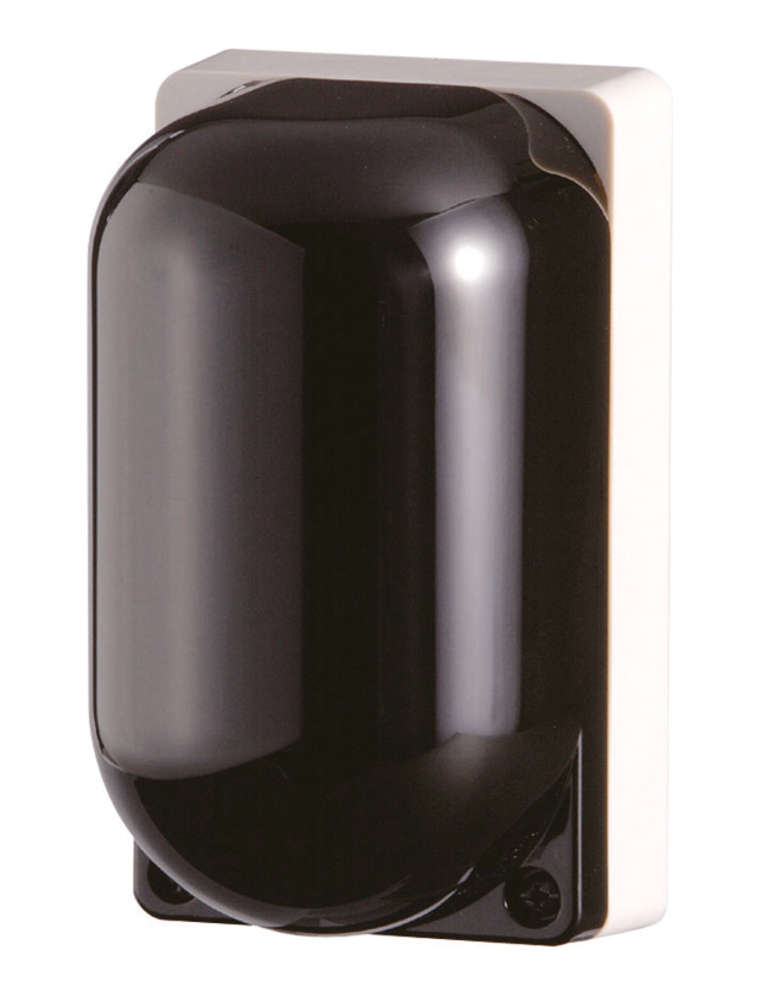

IR-500R

Receiver

The IR-500R infrared wireless receiver is designed for use with the IR-702T infrared wireless tuner. It can be mounted to a wall or an electrical box.

  • Designed for exclusive use with IR-702T Infrared Wireless Tuner
  • Power indicator LED
  • Can be mounted to a wall or an electrical box




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
IR-500R IR-510R IR-520R
Power source

24 V DC (supplied from IR-702T)

24 V DC (supplied from IR-702T)

24 V DC (supplied from IR-702T)

Current consumption

40 mA

60 mA

30 mA

Dimensions

70 x 120 x 72 mm (W x H x D)

120 x 71.3 mm (Ø x D)

84.5 x 63.5 x 32 mm (W x H x D)

Finish

PC resin, ABS resin, black, off-white (RAL 9010 or equivalent)

PC resin, ABS resin, black

PC resin, ABS resin, black

Accessory (included)

Mounting bracket x 1

Stand mounting bracket x 1, Bracket mounting screw x 2
