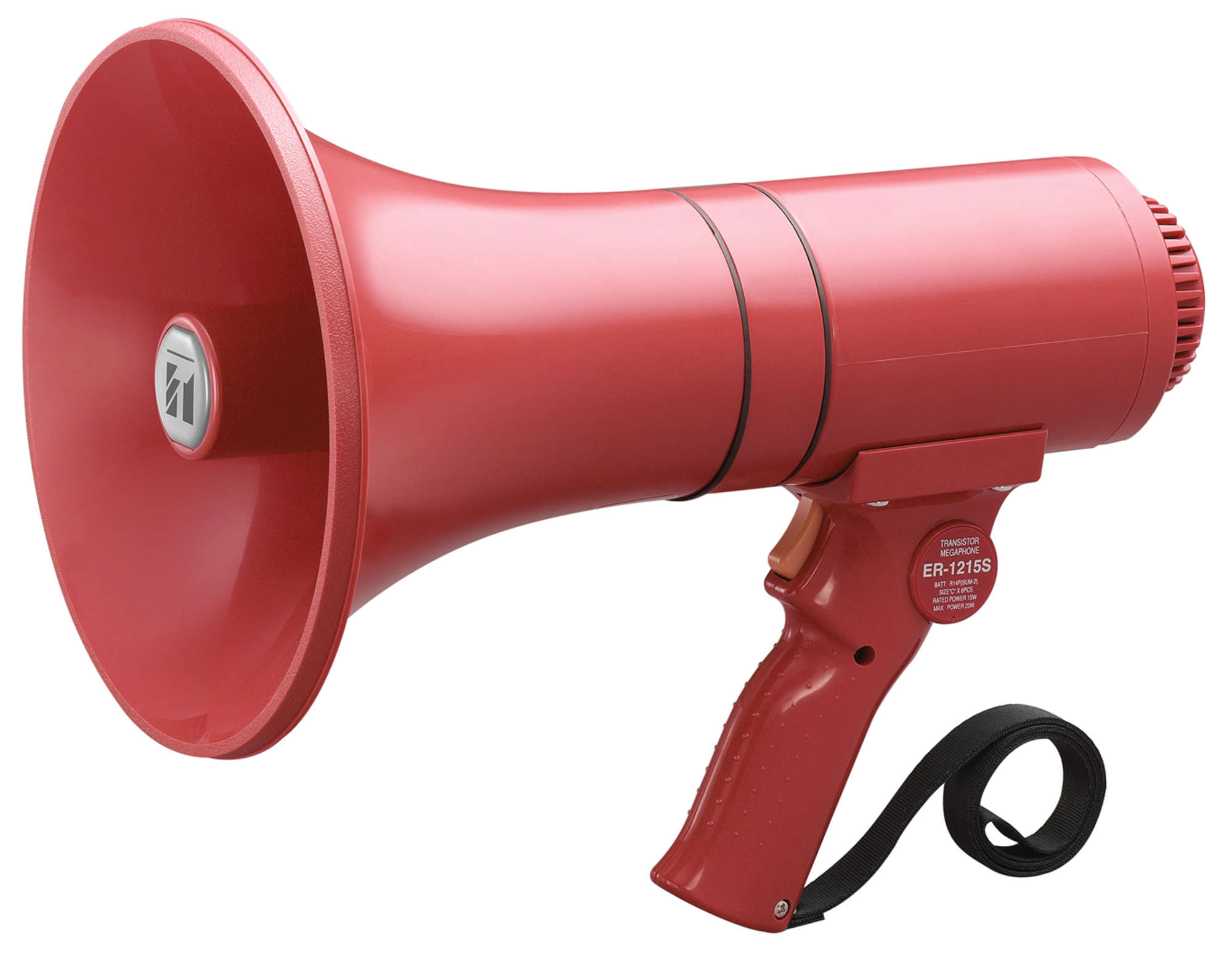

ER-1215S
Power Megaphone
The ER-1215S is a hand grip type, 15 W output megaphone with a siren. Pressing the siren button sounds a siren continuously in emergency conditions. The newly developed polyimide diaphragm is employed to ensure high sound quality.
- Compact megaphone with good sound quality due to wide frequency response
- High audible range
- Neodym magnet for high power
- Polyimide diaphragm
- Low power consumption
- Rugged enclosure
- Howl-free unidirectional dynamic microphone with press-to-talk switch
- Specifications
- Application examples
- Downloads
Specifications
Specifications for product:
| ER-1215S | ER-1215 EU | |
|---|---|---|
| Power source |
6 x 1,5 V (R 14) |
6 x 1,5 V (R 14) |
| Rated output |
15 W (23 W max.) |
15 W (23 W max.) |
| Battery life |
14 h |
14 h |
| Battery life on signal |
20 min |
|
| Signals |
Siren |
|
| Audible range |
Voice 315 m, signal 500 m |
Voice 315 m |
| Dimensions |
210 x 291 x 346 mm (W x H x D) |
210 x 291 x 346 mm (W x H x D) |
| Finish |
ABS resin, red |
ABS resin, light grey (RAL 7035 or equivalent), grey |
| Operating temperature |
-10 °C to +40 °C |
-10 °C to +40 °C |
| Weight |
1.2 kg |
1.1 kg |
Application examples
Downloads
