ER-1215 EU

Power Megaphone

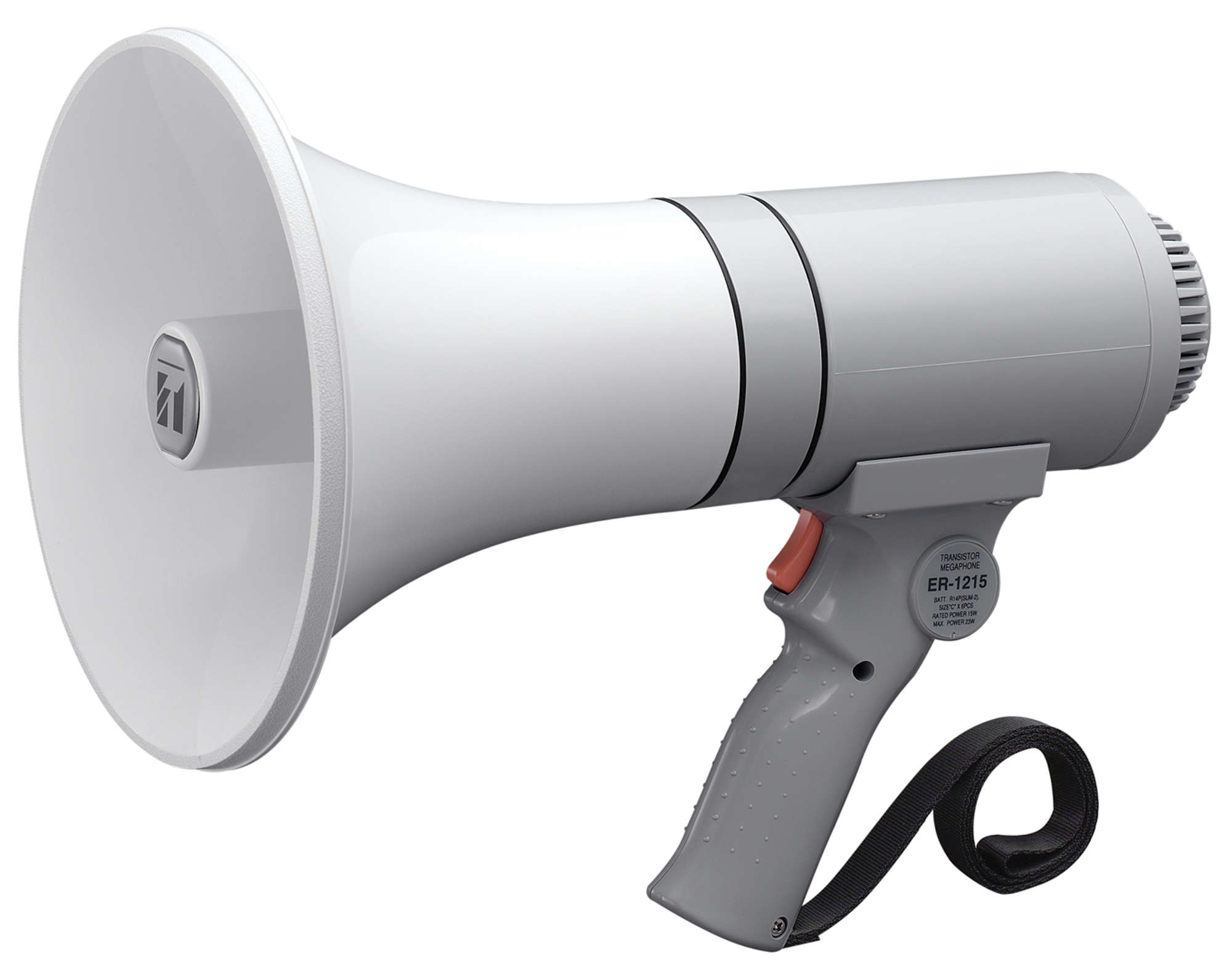

The ER-1215 is an easy-to-operate, hand grip type megaphone rated at 15 W of output. The newly developed polyimide diaphragm is employed to ensure high sound quality.

  • Compact megaphone with good sound quality due to wide frequency response
  • High audible range
  • Neodym magnet for high power
  • Polyimide diaphragm
  • Low power consumption
  • Rugged enclosure
  • Howl-free unidirectional dynamic microphone with press-to-talk switch




  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:
ER-1215 EU ER-1215S
Power source

6 x 1,5 V (R 14)

6 x 1,5 V (R 14)

Rated output

15 W (23 W max.)

15 W (23 W max.)

Operating temperature

-10 °C to +40 °C

-10 °C to +40 °C

Finish

ABS resin, light grey (RAL 7035 or equivalent), grey

ABS resin, red

Dimensions

210 x 291 x 346 mm (W x H x D)

210 x 291 x 346 mm (W x H x D)

Weight

1.1 kg

1.2 kg

Battery life

14 h

14 h

Audible range

Voice 315 m

Voice 315 m, signal 500 m

Battery life on signal

20 min

Signals

Siren
