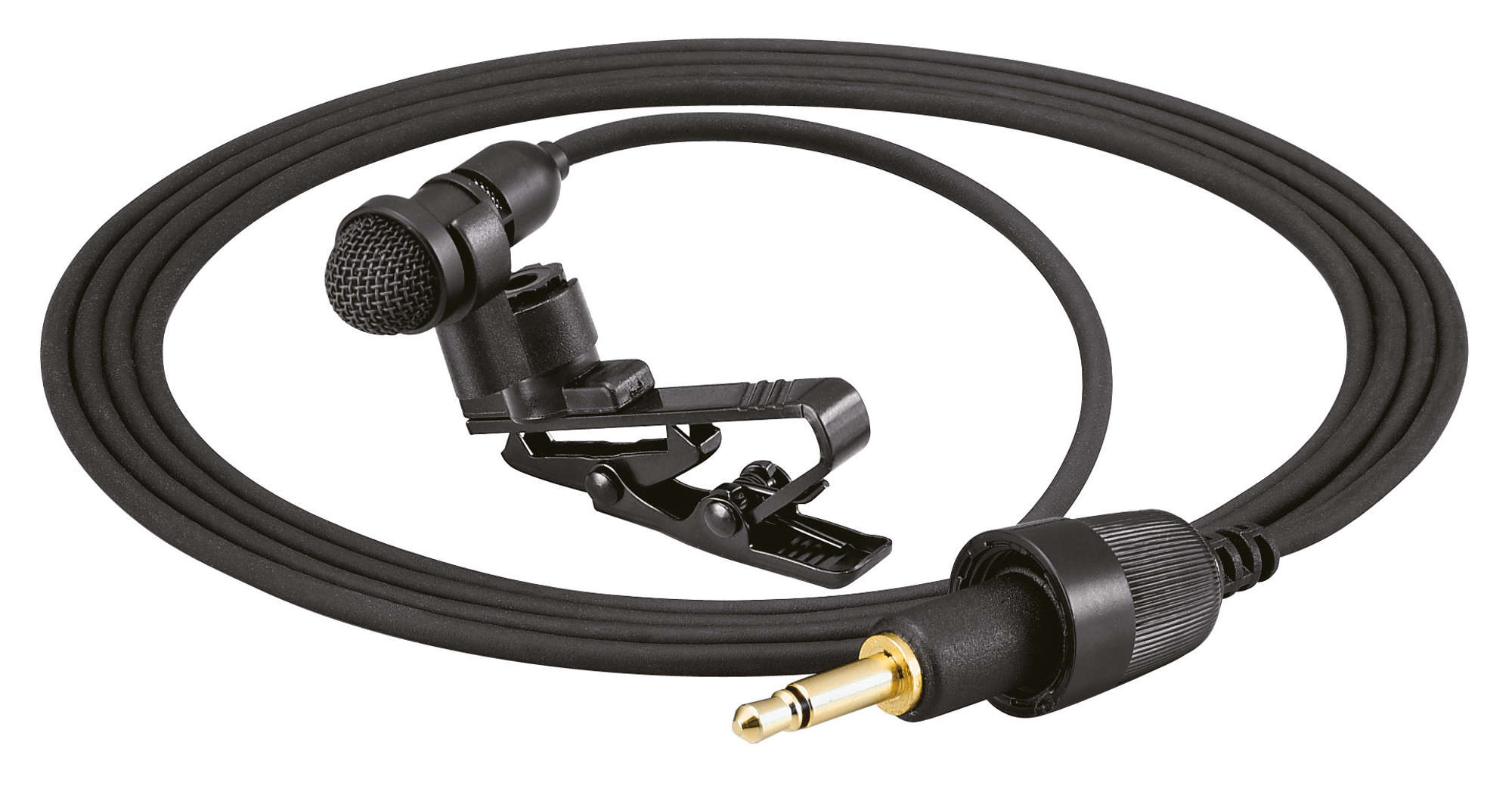

YP-M5300

Lavalier Microphone

  • Lavalier microphone
  • Unidirectional characteristics
  • Only 20 g weight including cable
  • Electret condenser capsule
  • Max. SPL: >120 dB
  • Frequency Response: 100 Hz – 12kHz ±3 dB
  • To use with WM-5323 or WM-D5300




  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
YP-M5300 YP-M5310
Power source

supplied from beltpack unit

supplied from beltpack unit

Connection

3.5 mm mini plug

3.5 mm mini plug

Microphone type.

Electret condenser

Electret condenser

Directivity

Unidirectional

Omnidirectional

AF response

100 Hz - 12 kHz

100 Hz - 15 kHz

Max. input level (value)

120 dBSPL

110 dBSPL

Cord length

1.3 m

1.3 m

Max. input level

120 dBSPL

110 dBSPL

Finish

black

black
