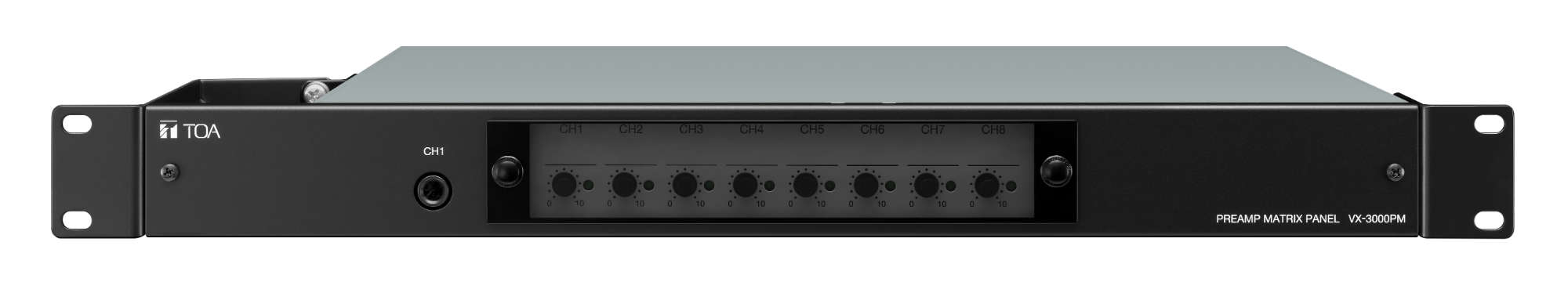

Preamplifier matrix panel
This device provides 8 audio inputs, control inputs and outputs to expand a VX-3000 system. Its digitalised audio signals can be transmitted not only in LANs but also via WANs and the Internet.
20 - 33 VDC
100 Hz - 15 kHz (±1 dB)
< 1 %
|Current consumption (value)||
60 dB(A) (or more)
20, no-voltage make contact input. Open voltage: 30 VDC, short-circuit current: 2-10 mA
5 open-collector, withstand voltage 30 VDC, max. current: 100 mA; 5 relay contacts, withstand voltage 30 VDC, max. current: 1 A
Signal (green) x8, Run x1, LINK/ACT x1
Removable screw terminals
8 channels, ch. 1-4: -60/-40/-20/0 dBV selectable, 600 ohms, transformer-balanced; ch. 5-6: -20 dBV, 10 kohms, unbalanced; ch. 7-8: 0 dBV, 10 kohms, unbalanced
0°C - +40°C
90% RH (no condensation)
482 x 44 x 292.2 mm (W x H x D)
Steel plate, black, Volume control cover: acrylic resin, smoky grey
Rack mounting screw x4, removable terminal plugs: 6-pin x2, 4-pin x2, 10-pin x4, 12-pin x2, 2-pin x1
The panel shall be a preamplifier matrix panel for TOA's VX-3000 System.
By connecting the panel to VX-3000's Voice Evacuation Frame via a network, the number of audio inputs, control inputs, and control outputs can be increased.
It shall be equipped with 8 audio inputs and their corresponding volume controls, 20 control inputs, and 10 control outputs. A single panel shall be connected to a single VX-3000's Voice Evacuation Frame, and a maximum of 40 units can be configured per system. Unicast audio transmission shall be made among the multiple preamplifier matrix panels, enabling broadcast activation and microphone announcement at multiple places.
The audio inputs 1 to 4 shall be transformer-balanced, input signal level selectable (-60 dBV/ -40 dBV/ -20 dBV/ 0 dBV), 600 Ω of input impedance and connectable via removable terminal block. The audio inputs 5 and 6 shall be unbalanced, input signal level fixed (-20 dBV), 10 kΩ of input impedance and connectable via removable terminal block. The audio inputs 7 and 8 shall be unbalanced, input signal level fixed (0 dBV), 10 kΩ of input impedance and connectable via removable terminal block.
The control inputs 1 to 20 shall be no-voltage make contact input, open voltage:30 V DC, short-circuit current: 2 - 10 mA with removable terminal block. The control outputs 1 to 5 shall be relay contact output, withstand voltage: 30 V DC, control current: 1 A with removable terminal block. The control outputs 6 to 10 shall be open collector output, withstand voltage: 30 V DC, control current: 100 mA with removable terminal block.
Power requirements shall be 20 - 33 V DC connected via 2-pin removable terminal block. The unit shall use 1 space unit of a standard EIA component rack space and its dimensions shall be 482 (W) X 44 (H) X 292.4(D) mm (18.98" x 1.73" x 11.51"). Weight shall be 3.2 kg (7.05 lb.) and finished in black pre-coated steel plate front panel, with gray smoke acrylic resin volume control section cover. Manufacturer: TOA Corporation, Model: VX-3000PM
