DISCONTINUED

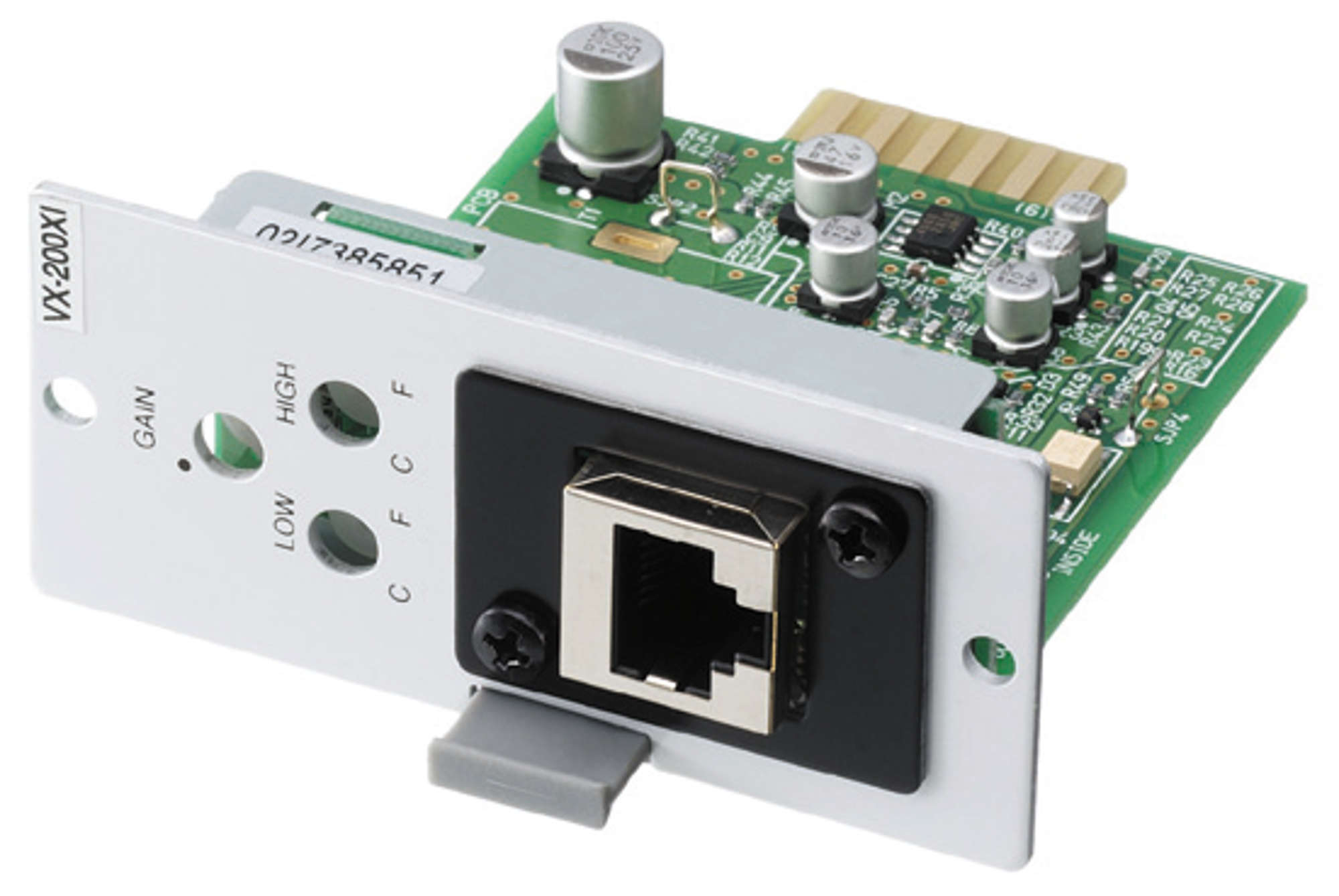

VX-200XI

Audio Input Module

The VX-200XI module is designed to be used in conjunction with the VX-2000 System Manager, and comes with control input terminals, low-cut and high-cut filters, and gain controls.

  • Control input terminals
  • Low-cut and high-cut fi lters
  • Gain controls
  • Connects e.g. to paging microphone or other sound source equipment with both audio and control outputs
  • Audio input sensitivity -70 dB or -20 dB by internal switch




  • Specifications
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
VX-200XI
Finish

Aluminium

Dimensions

35 x 78 x 88 mm (W x H x D)

Weight

70 g

Power source

Supplied from VX-2000

Current consumption (value)

30 mA

Input sensitivity

MIC: -70 to -42.5 dBV

LINE: -20 to +7.5 dBV

MIC or LINE with selector switch

Current consumption

30 mA
