DISCONTINUED

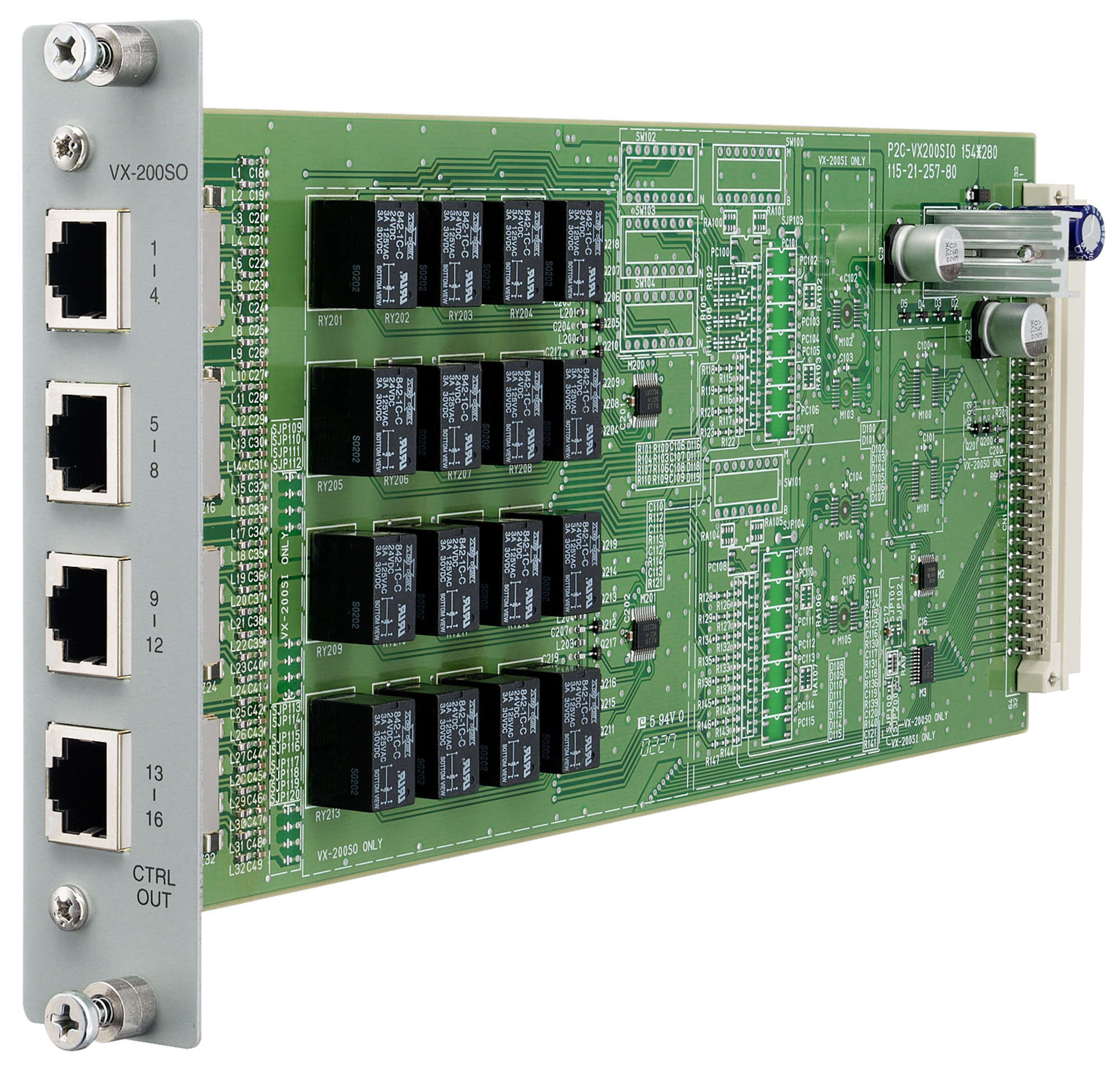

VX-200SO
Control Output Module
TOA's VX-200SO Control Output Module is used to increase the number of control outputs to be used in the VX-2000 system. It features 16 control outputs and is mounted in the VX-2000SF Surveillance Frame.
- Increases the number of control outputs in the VX-2000 system
- 16 control outputs
- No-voltage‚ make contact to external equipment depending on the event
- Up to 128 control outputs per system
- Specifications
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| VX-200SO | |
|---|---|
| Power source |
Supplied from VX-2000SF |
| Control output |
16 outputs, no-voltage make contact, contact capacity: 28 V DC, 1 A, RJ45 connector |
| Current consumption |
150 mA |
| Dimensions |
30.5 x 132.6 x 290.3 mm (W x H x D) |
| Finish |
Steel plate |
| Weight |
0.25 kg |
