DISCONTINUED

VP-3504

Digital Power Amplifier

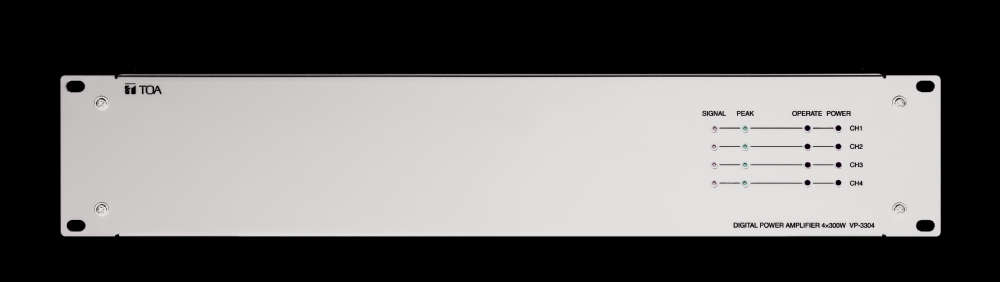

The VP-3504 is an Digital Power Amplifier used for the SX-2000 system. It is a 2U rack-mount unit equipped with 4 channels of class-D digital power amplifiers, which contribute to energy-saving and lightweight design. The VP-3504 also features a front-mounted LED indicator for operating status indication and stand-by mode to be set for reducing stand-by power consumption. It requires a dedicated power supply unit VX-3000DS.

  • System amplifier for SX-2000
  • 3 different power configurations
    150 W x 4 Channels (VP-3154)
    300 W x 4 Channels (VP-3304)
    500 W x 4 Channels (VP-3504)
  • Usable as zone or standby amplifier
  • Compact, lightweight and energy efficient
  • 4 amplifier input modules are built-in
  • With BGM input ports
  • Usable with VX-3000DS or VX-3150DS-EB




  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
VP-3504 VP-3154 VP-3304
Frequency response

40 Hz - 16 kHz

40 Hz - 16 kHz

40 Hz - 16 kHz

Rated output

500 W x 4 (at 100 V line),
350 W x 4

(at 70 V line),
250 W x 4 (at 50 V line)

150 W x 4 (at 100 V line),
105 W x 4

(at 70 V line),
75 W x 4 (at 50 V line)

300 W x 4 (at 100 V line),
210 W x 4

(at 70 V line),
150 W x 4 (at 50 V line)

Finish

Steel plate, black

Steel plate, black

Steel plate, black

Dimensions

482 x 88.4 x 390 mm (W x H x D)

482 x 88.4 x 390 mm (W x H x D)

482 x 88.4 x 390 mm (W x H x D)

Weight

7.7 kg

7.3 kg

7.3 kg

Power source

31 V DC (operating range: 20 – 34 V DC), DC power in: M4 screw terminal

31 V DC (operating range: 20 – 34 V DC), DC power in: M4 screw terminal

31 V DC (operating range: 20 – 34 V DC), DC power in: M4 screw terminal

Distortion

< 1 % (at 1 kHz, rated input/output)

< 1 % (at 1 kHz, rated input/output)

< 1 % (at 1 kHz, rated input/output)

Current consumption (value)

13 A

6 A

9 A

S/N ratio

80 dB(A) (at 100 V line, A-weighted)

80 dB(A) (at 100 V line, A-weighted)

80 dB(A) (at 100 V line, A-weighted)

Inputs

PA link: 4 channels, RJ45 connector, BGM: 4 channels, removable terminal block (5 pins)

BGM INPUT (H, C, E): -10 dB/0 dB (LINE, changeable), 22 kΩ, electronically balanced

BGM MUTE (G, +): no-voltage make contact input,open voltage: 15 V DC, short-circuit current: 2 mA, Volume adjustment: 4 channels

PA link: 4 channels, RJ45 connector, BGM: 4 channels, removable terminal block (5 pins)

BGM INPUT (H, C, E): -10 dB/0 dB (LINE, changeable), 22 kΩ, electronically balanced

BGM MUTE (G, +): no-voltage make contact input,open voltage: 15 V DC, short-circuit current: 2 mA, Volume adjustment: 4 channels

PA link: 4 channels, RJ45 connector, BGM: 4 channels, removable terminal block (5 pins)

BGM INPUT (H, C, E): -10 dB/0 dB (LINE, changeable), 22 kΩ, electronically balanced

BGM MUTE (G, +): no-voltage make contact input,open voltage: 15 V DC, short-circuit current: 2 mA, Volume adjustment: 4 channels

Outputs

PA out (speaker line): removable terminal block (9 pins) x 1

PA out (speaker line): removable terminal block (9 pins) x 1

PA out (speaker line): removable terminal block (9 pins) x 1

Number of channels

4

4

4

Indicator

Power indicator x 4 (Green), Operate indicator x 4 (Green), Input signal indicator x 4 (Green), Peak signal indicator x 4 (Red)

Power indicator x 4 (Green), Operate indicator x 4 (Green), Input signal indicator x 4 (Green), Peak signal indicator x 4 (Red)

Power indicator x 4 (Green), Operate indicator x 4 (Green), Input signal indicator x 4 (Green), Peak signal indicator x 4 (Red)

Current consumption

13 A

6 A

9 A

Accessory (included)

Rack mounting screw (with washer) x4,

Removable terminal plug (5 pins) x4,

Removable terminal plug (9 pins) x1

Rack mounting screw (with washer) x4,

Removable terminal plug (5 pins) x4,

Removable terminal plug (9 pins) x1

Rack mounting screw (with washer) x4,

Removable terminal plug (5 pins) x4,

Removable terminal plug (9 pins) x1
