DISCONTINUED

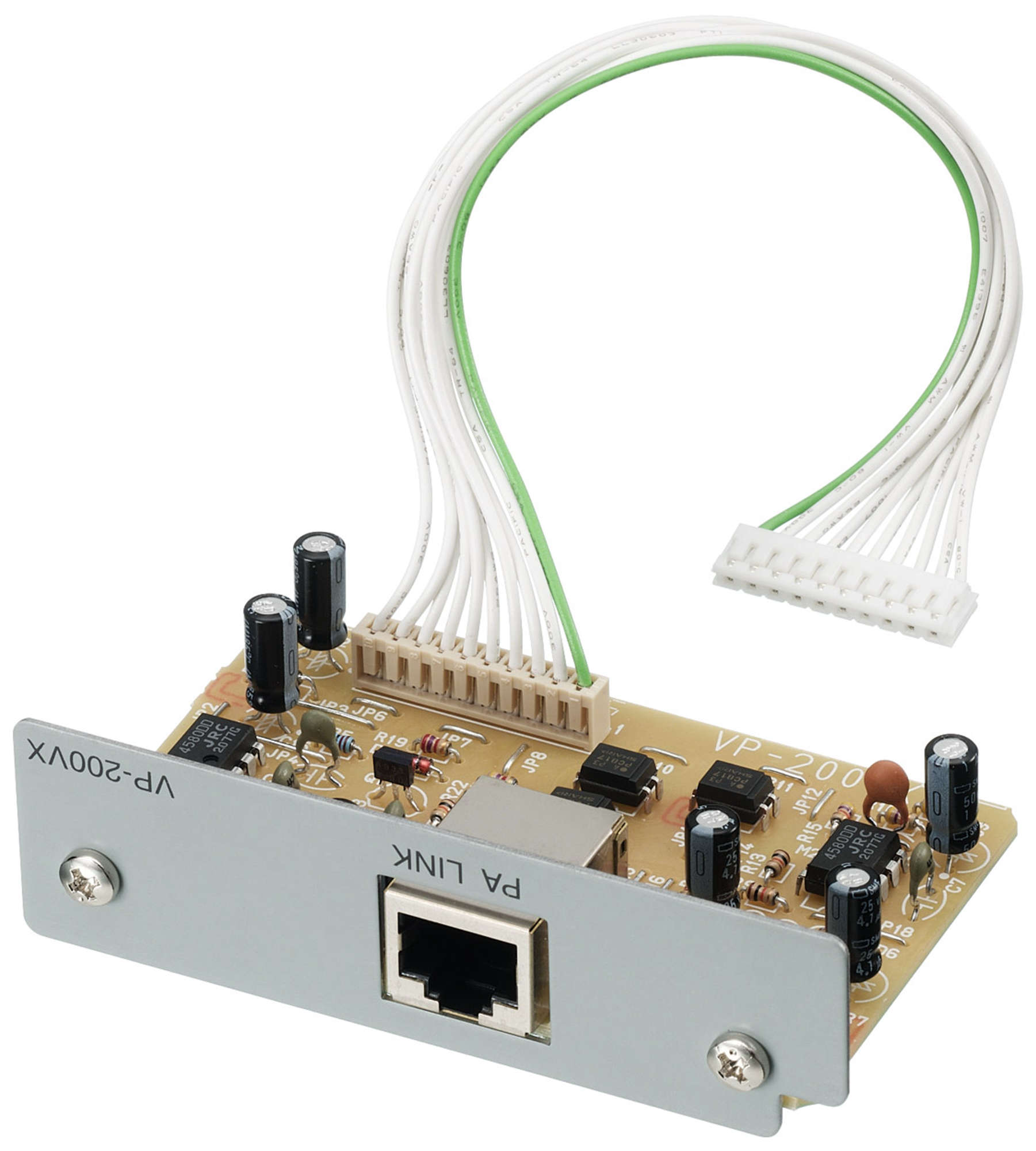

VP-200VX
Power Amplifier Input Module
The VP-200VX Power Amplifier Input Module is designed to be used in conjunction with the VP-2064, VP-2122, VP-2241 or VP-2421 power amplifier.
- For VP-2000 amplifier series
- For transmission of status' and audio signals between system's audio output and amplifier
- Specifications
- Tender text
- Downloads
Specifications
Specifications for product:
| VP-200VX | VP-200VX-BGM | |
|---|---|---|
| Frequency response |
20 Hz - 20 kHz |
20 Hz - 20 kHz |
| Finish |
Steel plate |
Steel plate |
| Dimensions |
88 x 25.8 x 53.2 mm (W x H x D) |
88 x 25.8 x 53.2 mm (W x H x D) |
| Weight |
0.05 kg |
0.06 kg |
| Power source |
Supplied from amplifier (VP-2064, VP-2122, VP-2241 or VP-2421) |
Supplied from amplifier (VP-2064, VP-2122, VP-2241 or VP-2421) |
| Current consumption (value) |
30 mA |
35 mA |
| Current consumption |
30 mA |
35 mA |
| Accessory (included) |
Plug-in screw terminal (5 pin) x 1 |
