DISCONTINUED
TS-802
Delegate's unit

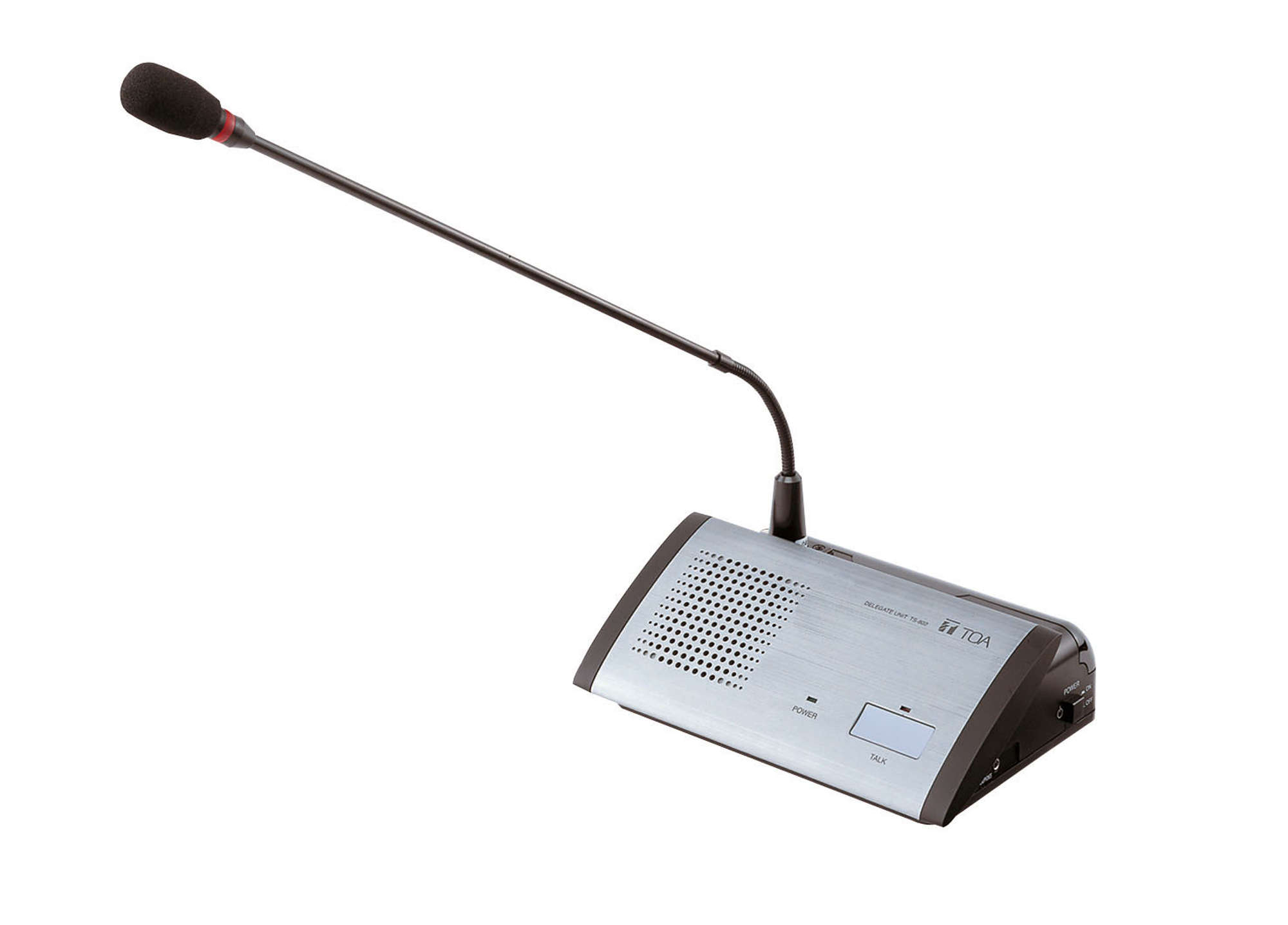

The TS-802 is a Delegate unit of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. It can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional). It is equipped with a remaining battery indicator. Two types of dedicated microphones are made available for the TS-802 as optional products: the TS-903 standard type and the TS-904 long type.
- Infrared transmission
- Compact and lightweight
- Unit equipped with removable microphone, loudspeaker and priority switch
- 2 different version for chairman (TS-801) and delegates (TS-802)
- When the loudspeaker is on, the microphone of the unit is automatically turned off to avoid feedback and vice versa
- 1 recording output
- Ring shaped in-use LED
- Multiple chairman units can be operated simultaneously
- Easy hook-up
- Specifications
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| TS-802 | |
|---|---|
| Power source |
7.4 V DC (battery), 9 V DC (AC Adapter) (supplied from optional BP-900 Battery or AD-0910 AC Adapter) |
| Controls |
Monitor speaker volume Headphone volume |
| Inputs |
Microphone terminal: Combined type of XLR-4-31 (dedicated for connecting the optional TS-903 or TS-904 |
| Outputs |
Monitor speaker: 8 Ω, 0,2 W / Headphone: Mini jack x 2 |
| Dimensions |
210 x 68.6 x 152 mm (W x H x D) |
| Finish |
ABS resin, grey metallic |
| Weight |
0.63 kg |
Equipment
Tender text
Downloads
Discontinued Products
At TOA, durability and highest quality are our top priorities. In order to drive innovation and continuously deliver state-of-the-art audio solutions, certain products naturally reach the end of their lifecycle.
For full details on affected products and recommended replacements, please visit our product discontinuation page or contact us.
