Control Input Unit

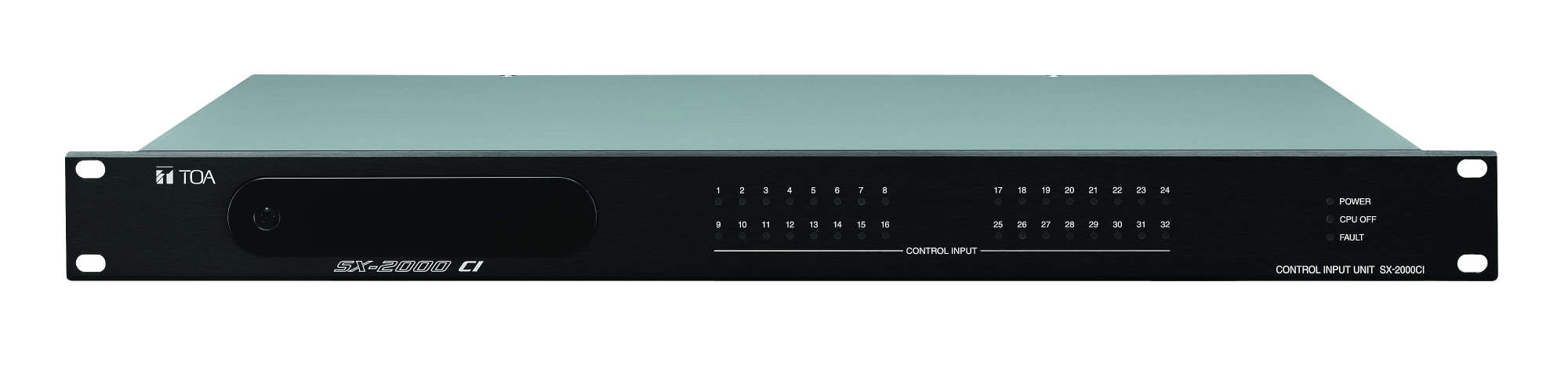

The SX-2000CI is a control input of the matrix system and can be mounted in an EIA equipment rack (1 U size). Multiple units can be decentralized in a whole system. It is equipped with 32 control input channels. Control input line failure can be detected by connecting resistors to its line. The indicators on the front panel monitor the control input line status. The SX-2000CI has a function to supply a stabilized 24 V DC. The SX-2000CI has two power inputs and can support a dual-redundant power supply system. By using a stand-alone mode, system can be configured with only the SX-2000CI, SX-2000CO Control output unit and the power supply unit, permitting the contact data of multiple channels to be transmitted to the remote locations with simple wiring.
482 x 44 x 331.5 mm (W x H x D)
Removable terminal plug (16 pins) x 4, Removable terminal plug (4 pins) x 1, Removable terminal plug (2 pins) x 1, Rack mounting screw x 4
Control input unit for installation in 19-inch cabinet racks (IEC 60297) with 32 control inputs with opto-couplers. Each input can be monitored either. The activation of each single control input will be shown at the front by means of LEDs. The connection is via detachable connectors.

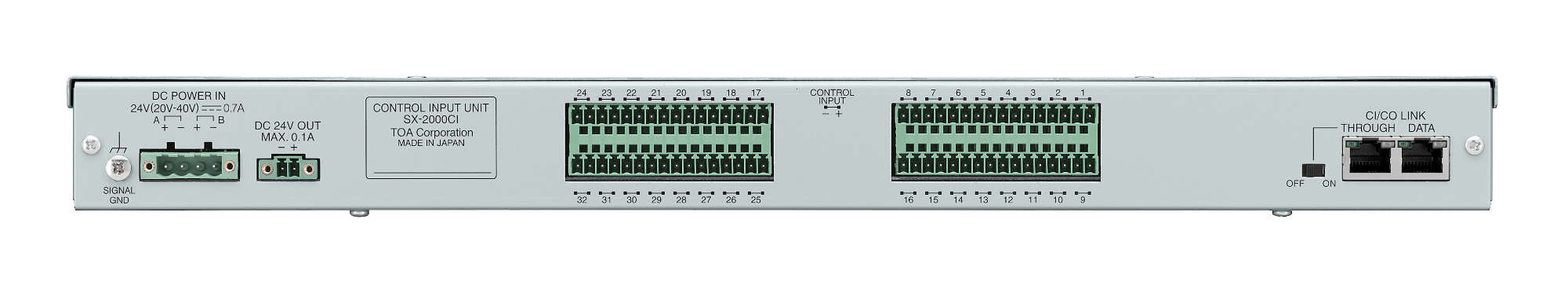

Redundant power supply for reliable power supply. Supervised access to the system via RJ45 jacks. Additional RJ45 connector for control output unit.
Regulated voltage output to the supply of external devices. More ads for supply voltage, collective fault signal and activated analog reserve way.
