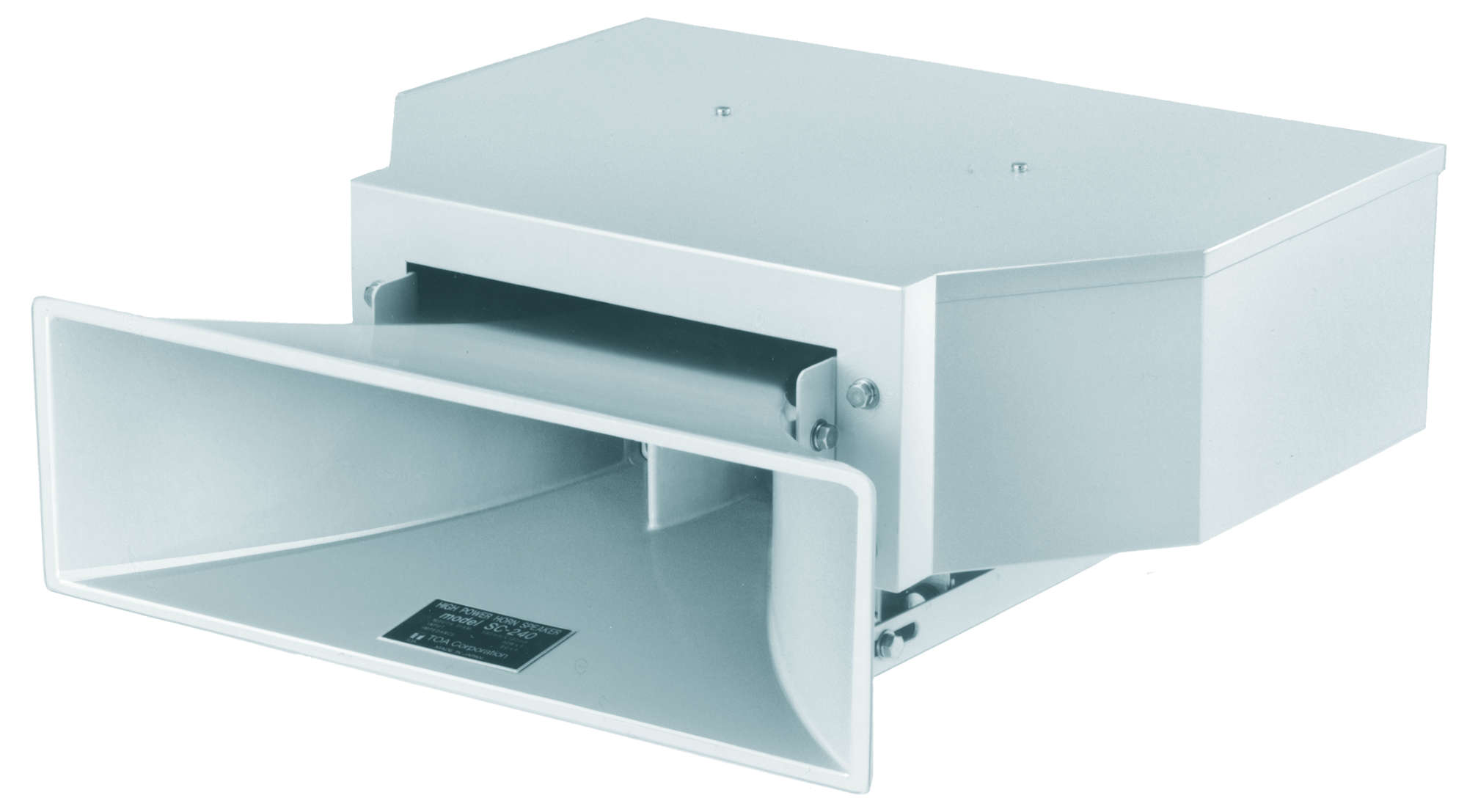

SC-240

Ultra-high power speaker

The SC-240 speaker ensures uniform dispersion of intelligible sounds thanks to an aluminum die casting, directional speaker. It is ideal for making public address announcements from a car or for other applications that require wide horizontal directivity, such as outdoor sound amplification.

  • Ideal for signal and voice transmission over long distances or in noisy environments
  • Uniform dispersion for intelligible sound
  • High sound pressure level
  • Wide directivity
  • Horn vertically adjustable
  • Directional speaker
  • Bracket, driver units included
  • Non-RoHS product




  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:
SC-240
Frequency response

250 Hz - 5 kHz

Sensitivity (1 W, 1 m)

107 dB

Rated input (high impedance)

240 W

Rated impedance

8 Ω

Operating temperature

-20 °C to +55 °C

Finish

Aluminium, die-cast, silk grey (RAL7044 or equivalent)

Dimensions

598 x 251 x 654 mm (W x H x D)

Weight

28 kg

Accessory (included)

Driver unit case x 1, Connection cord: YR-2120 x 4
