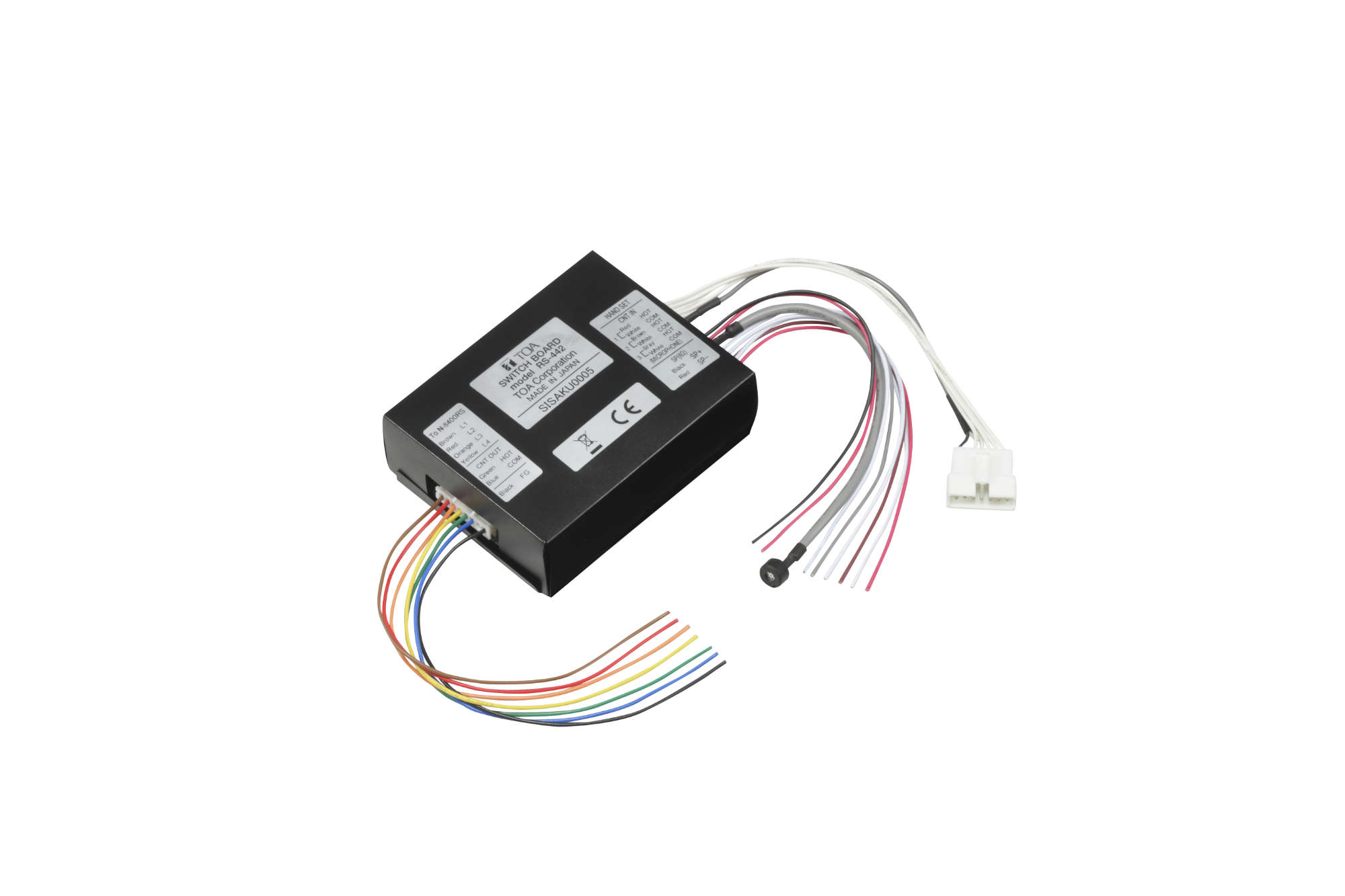

RS-442
IP Intercom Switch Board
The RS-442 is a switch board designed for use with the N-8400RS 4-Wire Substation Interface Unit. You can make desired switch panels to meet intended purposes by combining the RS-442 with the separately prepared operation panel having 3 switches to be used as call buttons. Also, it can be used in connection with the RS-481 IP Intercom Option Handset.
- For custom made solutions
- 1 microphone, 3 switch inputs for call buttons and 1 speaker output
- Handset conversation via optional RS-481
- Specifications
- Application examples
- Equipment
- Downloads
Specifications
Specifications for product:
| RS-442 | RS-142 | |
|---|---|---|
| Control output |
Open collector, maximum controlled voltage: 30 V DC Control current: 30 mA |
|
| Rated input (100 V) |
1 W 1 W |
|
| Operating temperature |
0 °C to +40 °C |
|
| Weight |
0.14 kg |
30 g |
| Finish |
Stainless steel |
