Specifications

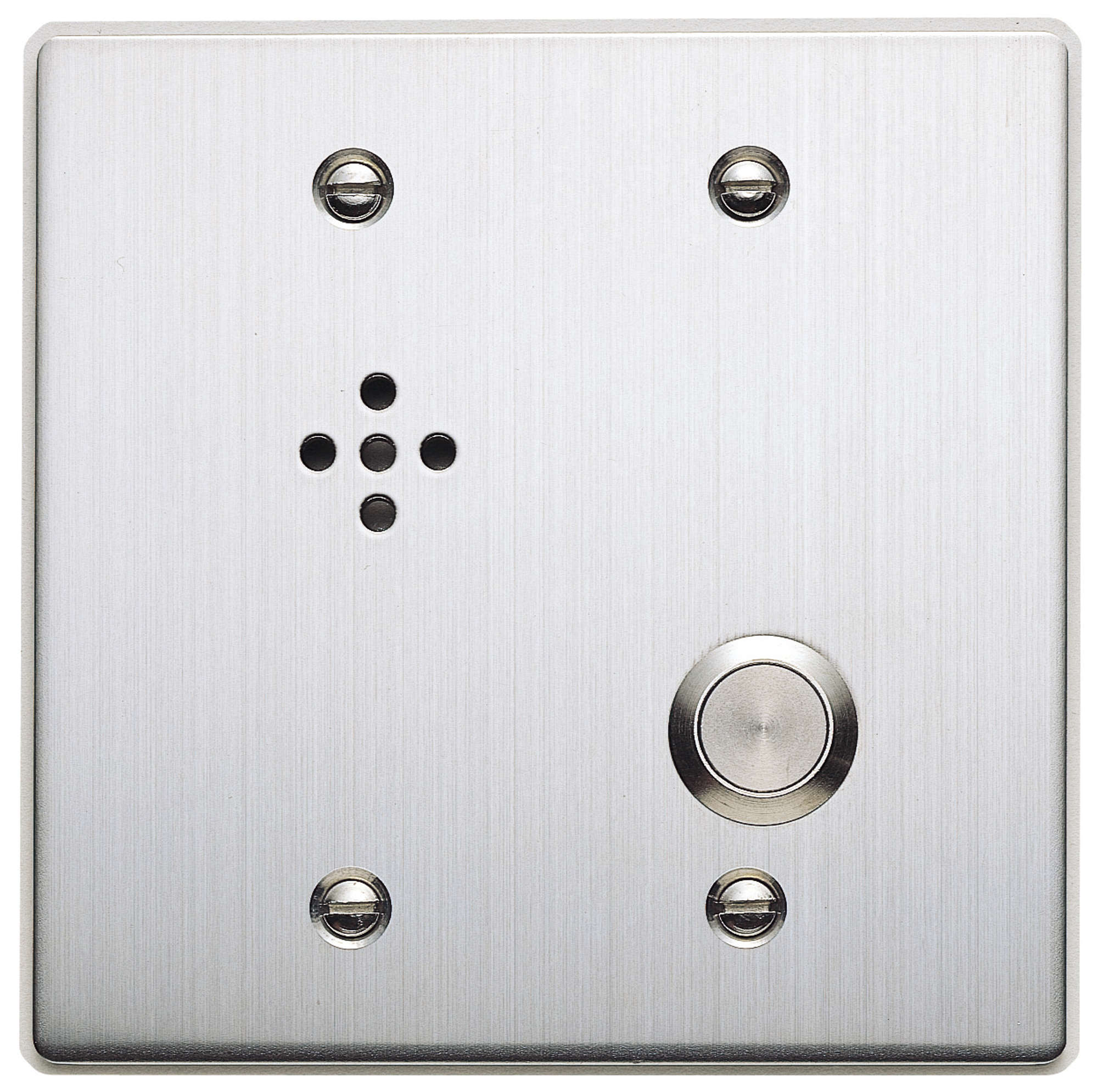

Specifications for product:
| RS-170 | RS-140 | RS-150 | RS-160 | RS-180 | |
|---|---|---|---|---|---|
| Rated impedance (low impedance) |
625 Ω (1 W / 25 V) |
625 Ω (1 W / 25 V) |
625 Ω (1 W / 25 V) |
625 Ω (1 W / 25 V) |
|
| Speaker component |
4 cm, cone-type |
4 cm, cone-type |
4 cm, cone-type |
4 cm, cone-type |
|
| Outputs |
Open collector output: 24 V DC, 30 mA (The open collector output is kept turned on till the conversation is finished after the call button was pressed.) |
||||
| Dimensions |
120 x 120 x 57.5 mm (W x H x D) |
70 x 115 x 28.6 mm (W x H x D) |
120 x 120 x 48.5 mm (W x H x D) |
120 x 120 x 57.5 mm (W x H x D) |
120 x 120 x 58.5 mm (W x H x D) |
| Finish |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
| Weight |
0.54 kg |
0.08 kg |
0.41 kg |
0.54 kg |
0.57 kg |
