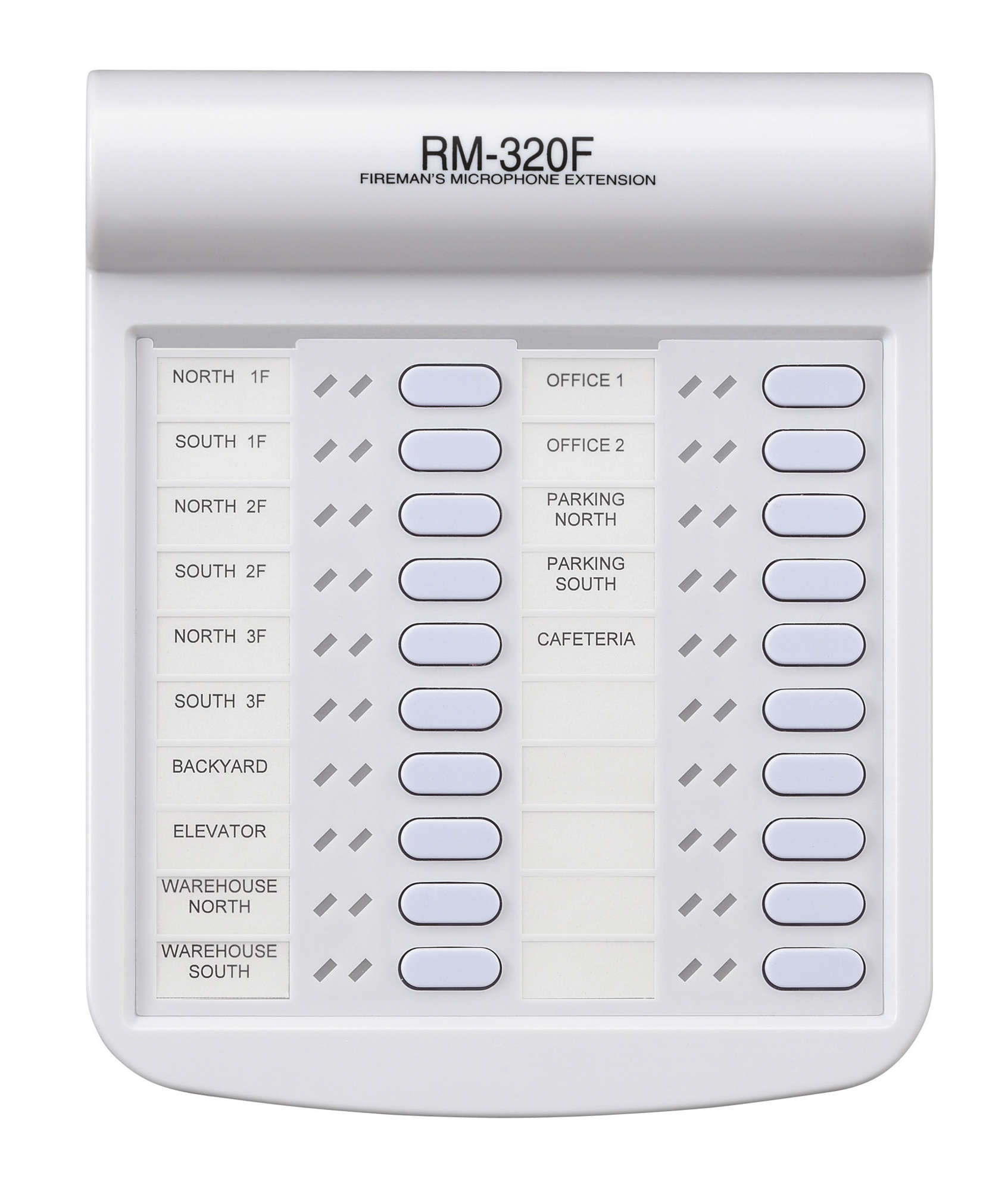

RM-320F

RM-320F

Extension Unit

  • 20 function buttons per extension unit
  • System software allows assigning of functions to the individual keys
  • Up to 3 RM-320F Key Extension Units can be connected to the Emergency Microphone



Brochure
  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
RM-320F
Power source

From RM-200SF / RM-300MF / RM-200M
Current consumption

180 mA max.
Control keys, buttons and knobs

20 buttons for free assignable functions
Dimensions.

175 x 215 x 70 mm (W x H x D)
Finish.

ABS resin, bluish grey (PANTONE 538 or equivalent)
Accessory (included)

Wall mounting bracket x1, wall mounting screw x 2
