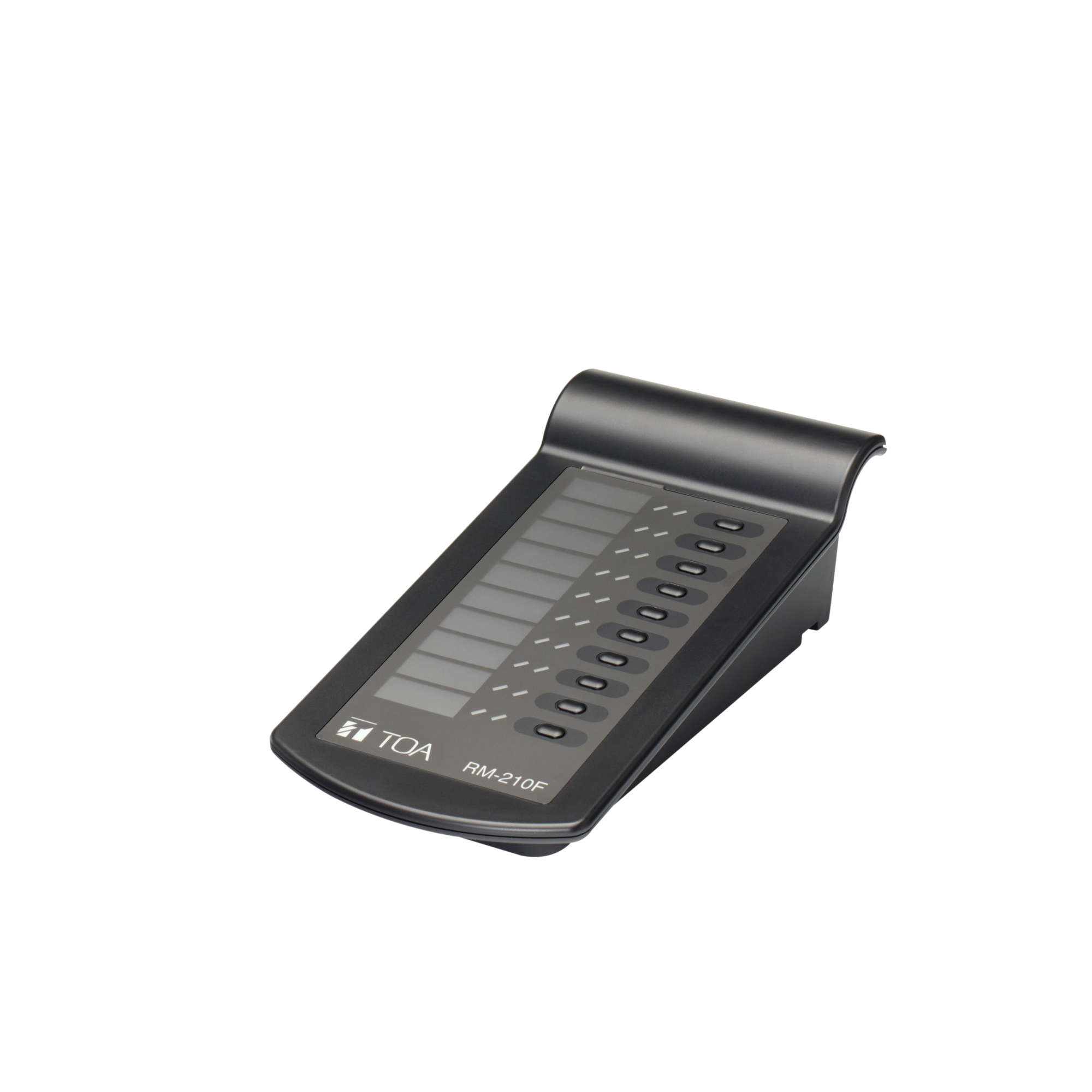

RM-210F
Key Extension
The RM-210F is an expansion unit dedicated for the RM-300X Desk top remote microphone. The number of zone selection keys and indicators of the RM-300X can be increased in 10 units per RM-210F.
- 10 additional keys
- Up to 7 units can be used with each RM-300X Remote Microphone
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| RM-210F | |
|---|---|
| Power source |
From Remote Microphone |
| Current consumption |
80 mA max. |
| Control keys, buttons and knobs |
10 buttons for free assignable functions |
| Dimensions. |
110 x 76.5 x 215 mm (W x H x D) |
| Finish. |
ABS resin, black |
| Accessory (included) |
Extension cable x 1, linkage bracket A x 2, linkage bracket B x 2, screw for linkage bracket x 12 |
