DISCONTINUED

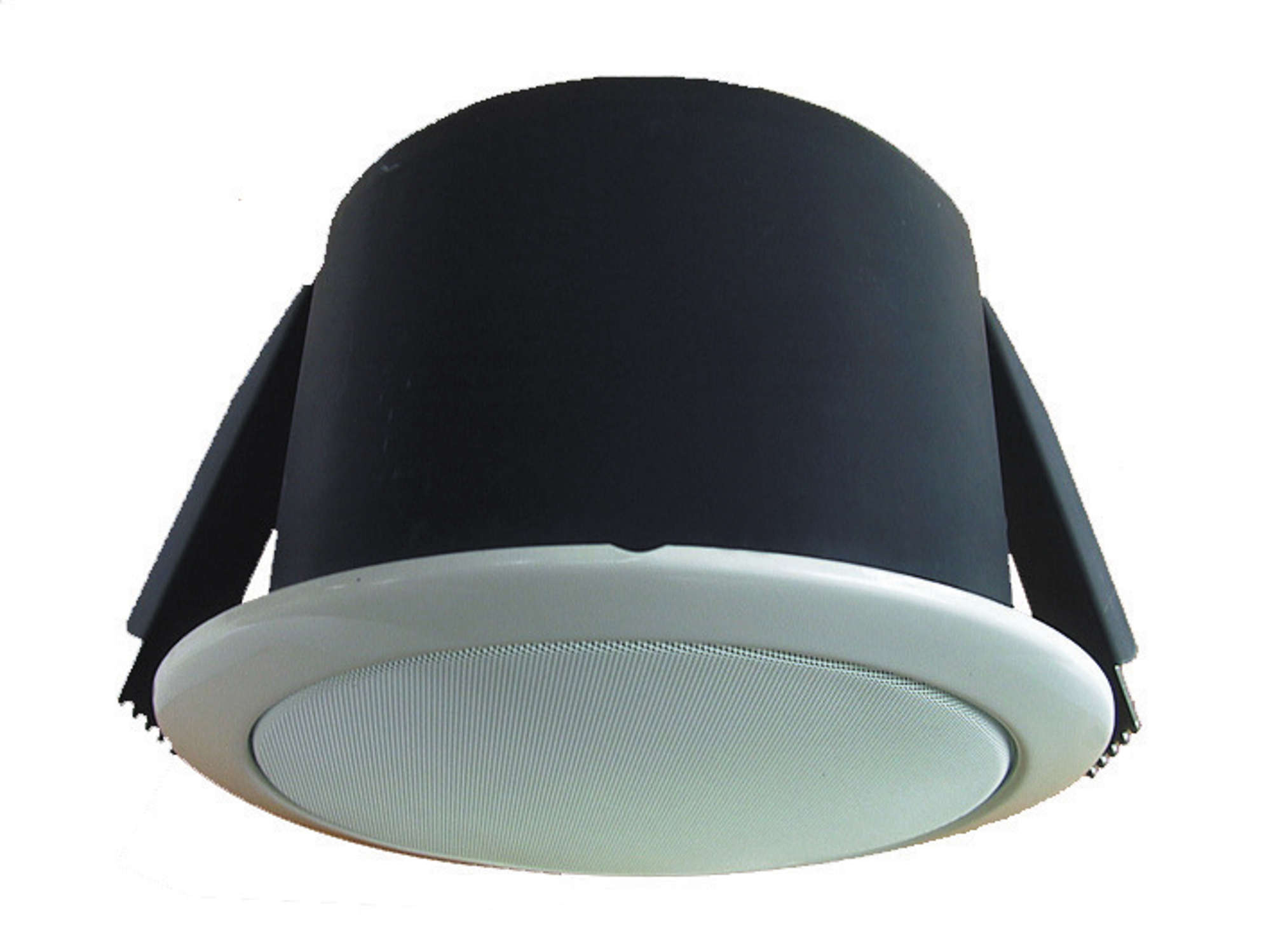

PC-1867F
Ceiling Speakers
The PC-1867F Ceiling Mount Speaker features an iron-made dome that prevents the fire from spreading in the ceiling in case of an emergency situation. The speaker can be easily installed using the speaker mounting spring, and the dome can also be easily mounted in the speaker mounting hole in the ceiling panel. The push-in connector permits one-touch cable connection, as well as bridging and branch wiring.
- 9 W continuous program
- Fire dome made of steel
- Easy installation with spring catches
- 12 cm speaker
- For mounting in 156 mm holes
- Specifications
- Application examples
- Tender text
- Downloads
Specifications
Specifications for product:
| PC-1867F | PC-648R | PC-658R | |
|---|---|---|---|
| Frequency response |
160 Hz - 13 kHz |
100 Hz - 18 kHz |
65 Hz - 18 kHz |
| Sensitivity (1 W, 1 m) |
90 dB |
90 dB |
90 dB |
| Rated input (100 V) |
6 W |
6 W |
6 W |
| Tappings (100 V) |
6 / 3 / 1.5 / 0.8 W (100 V), 3 / 1.5 / 0.8 / 0.4 W (70 V) |
6 / 3 / 1 W (100 V), 3 / 1.5 / 0.5 W (70 V) |
6 / 3 / 1 W (100 V), 3 / 1.5 / 0.5 W (70 V) |
| Speaker component |
12 cm cone-type |
12 cm cone-type |
16 cm cone-type |
| Dimensions |
180 x 121 mm (Ø x D) |
168 x 77 mm (Ø x D) |
192 x 73 mm (Ø x D) |
| Finish |
Aluminium, off-white (RAL 9010 or equivalent) |
Polypropylene resin, off-white (RAL 9010 or equivalent) |
Polypropylene resin, off-white (RAL 9010 or equivalent) |
| Weight |
1.4 kg |
0.47 kg |
0.5 kg |
