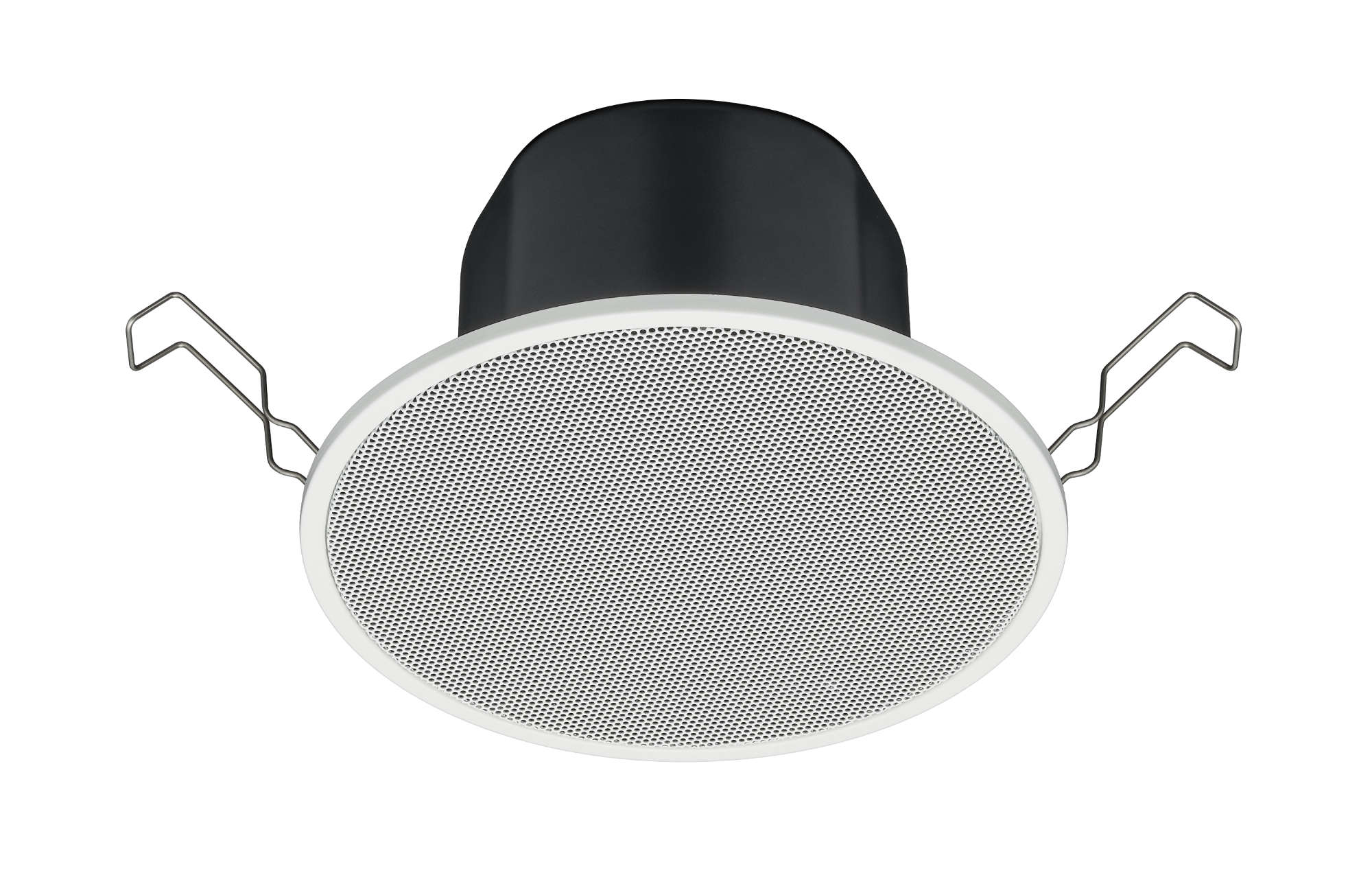

PC-1865BS

Ceiling Speakers

The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker's design harmonizes with modern architecture and decor. The PC-1865BS is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling. Thus, the speaker is designed according to British Standard BS 5839-8: 2013 and EN54-24.

  • Flat front panel
  • Quick and easy installation
  • Fire dome made of steel
  • Ceramic screw terminal block and thermal fuse
  • 6 W rated input
  • 12 cm speaker chassis




  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
PC-1865BS PC-1860BS-C PC-1860BS
Frequency response

200 Hz - 20 kHz

170 Hz - 20 kHz

170 Hz - 20 kHz

Sensitivity (1 W, 1 m)

95 dB

94 dB

95 dB

Max. SPL (1 m)

100 dB

99 dB

100 dB

Tappings

100 V: 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 6.7 kΩ (1.5 W) / 13 kΩ (0.8 W)
70 V: 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 6.7 kΩ (0.8 W) / 13 kΩ (0.4 W)

100 V: 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 6.7 kΩ (1.5 W) / 13 kΩ (0.8 W)
70 V: 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 6.7 kΩ (0.8 W) / 13 kΩ (0.4 W)

100 V: 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 6.7 kΩ (1.5 W) / 13 kΩ (0.8 W)
70 V: 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 6.7 kΩ (0.8 W) / 13 kΩ (0.4 W)

Speaker component

12 cm cone-type

12 cm cone-type

12 cm cone-type

Operating temperature

-10 °C to +50 °C

-10 °C to +50 °C

-10 °C to +50 °C

Finish

Steel plate, traffic white (RAL 9016 or equivalent)

Steel plate, traffic white (RAL 9016 or equivalent)

Steel plate, traffic white (RAL 9016 or equivalent)

Dimensions

180 x 95.6 mm (Ø x D)

180 x 105 mm (Ø x D)

180 x 105 mm (Ø x D)

Weight

0.86 kg

1.1 kg

1.1 kg

Dust / Water protection.

IP 21C

IP 21C

IP 21C
