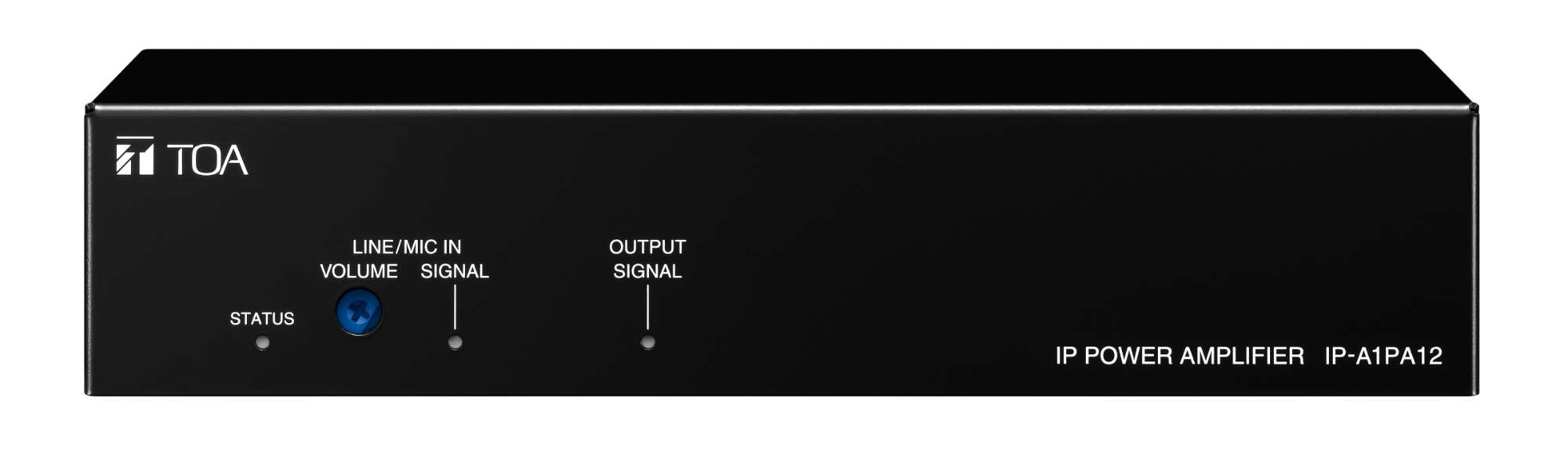

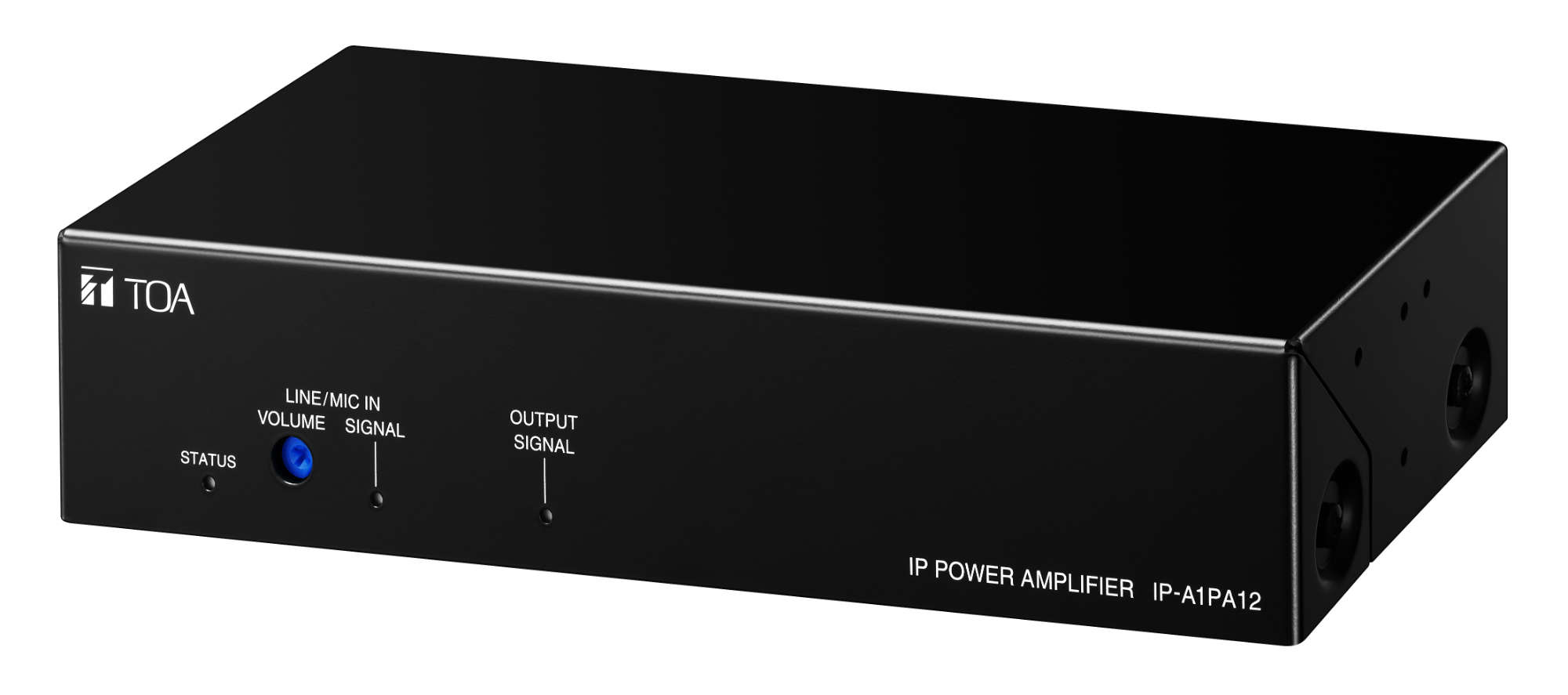

IP-A1PA12
IP Power Amplifier
Combine the Strengths of the IP and the Analogue Audio World
Plug & Receive: Based on open standards, the IP-A1PA12 IP power amplifier plugs right into standard IP networks and can be easily integrated into your video management system (VMS) or SIP-based communication system. A single standard network cable provides both connectivity and power.
The IP-A1PA12 IP power amplifier can integrate analogue receiving devices into your network as e.g., conventional high impedance speakers or local PA systems. A wide variety of high impedance speakers can therefore be turned into IP speakers, multiple at the same time using a single IP-A1PA12. Furthermore, PA or BGM systems without SIP or ONVIF* interface can now be integrated into your network solutions.
Flexible Group Paging: The IP power amplifier can also be addressed via multicast, enabling audio paging into groups or larger zones of IP audio devices simultaneously.
Application Examples:
Seminar rooms with a requirement for multiple loudspeakers can be easily integrated into VMS or SIP telephone systems with higher cost-efficiency compared to setups consisting entirely of IP speakers. Retail chains with existing local PA/BGM systems can be integrated into IP solutions providing network control and centralized management opportunities.
- Receive SIP audio, ONVIF* audio and multicast (up to 20 addresses)
- API for HTTP command reception
- Local broadcast using internal audio files or local audio source
- Different playback programs (repeat, duration, weekly timer)
- 12 W built-in amplifier

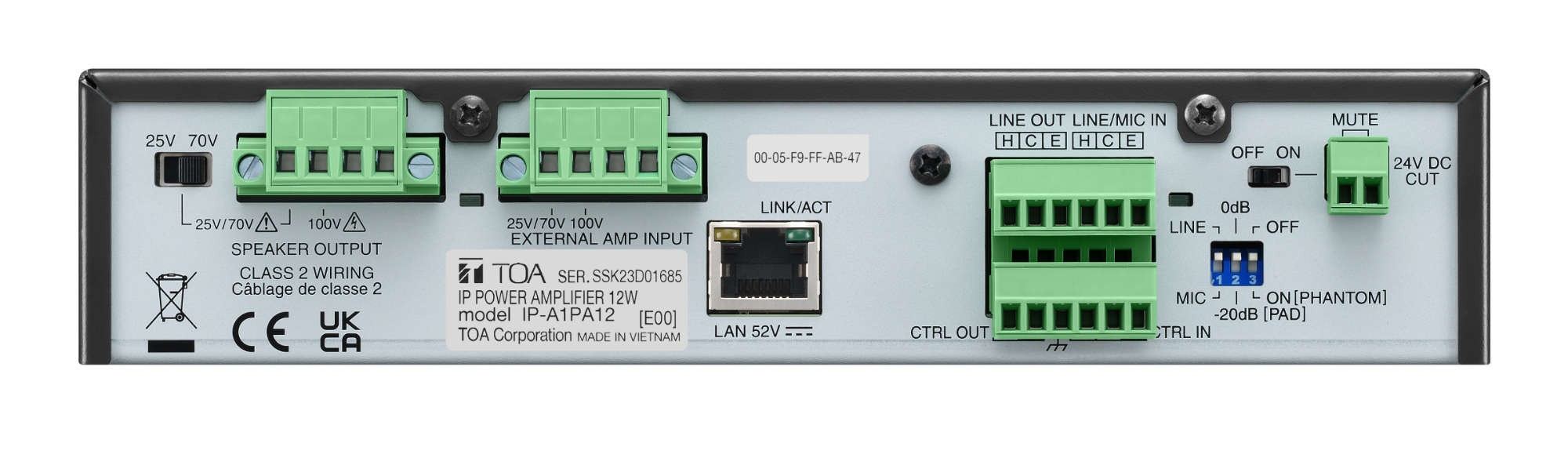

- 1 speaker output (100 / 70/25 V), 1 line audio output
- 1 external amplifier input (100/70/25 V)
- 1 audio input (line/mic and phantom power selectable)
- 2 control inputs, 1 mute control input and 1 control output
- PoE+ -powered
*ONVIF is a registered trademark of ONVIF Inc.
Discover our products in 3-D view – and project them via AR into any room and get 3-D all-round view in real time
How can I turn, enlarge, move the object?
Rotate /Turn: Hold left click and drag at the same time or on a touch screen please drag with one finger.
Zoom: To zoom in or out, please scroll with the mouse wheel or on a touch screen please work with pinch-to-zoom i.e. pull the object apart with 2 fingers to zoom in.
Move the entire object: Hold right-click and drag or on a touchscreen please drag with 2 fingers.
Project into my own space: Click AR (Augmented Reality) at the bottom right of the window. Now you can scan the QR code or simply open the link on your mobile device.
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| IP-A1PA12 | |
|---|---|
| Power source |
PoE+ |
| Power / current consumption |
25 W (rated output) |
| Frequency response |
100 Hz - 20 kHz |
| Rated output |
12 W |
| Data I/F |
1x 100BASE-TX (RJ45) |
| Network protocol |
TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261), SIPS, SIP-TLS, DHCP |
| Audio input |
1x line/mic (balanced, phantom power, terminal block) |
| Audio output |
1x line (balanced, terminal block) |
| Speaker output |
1x 100 V (terminal block) |
| Control input |
2x no-voltage make contact (terminal block) |
| Control output |
1x open collector (terminal block) |
| Dimensions |
210 x 44 x 81.5 mm (W x H x D) |
| Finish |
Steel, black |
| Operating temperature |
−30 °C to +55 °C |
| Weight |
940 g |
